AC0402FR-7W100KL by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for AC0402FR-7W100KL by YAGEO Corporation

Results Overview of AC0402FR-7W100KL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

AC0402FR-7W100KL Information

AC0402FR-7W100KL by YAGEO Corporation is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for AC0402FR-7W100KL

Part # Distributor Description Stock Price Buy
DISTI # 49AK0451
Newark Res, 100K, 1%, 0.125W, Thick Film, 0402, Resistance:100Kohm, Resistance Tolerance:± 1%, Power Rating:125Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:75Vrohs Compliant: Yes |Yageo AC0402FR-7W100KL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 9993
  • 1 $0.1000
  • 25 $0.0100
  • 100 $0.0090
  • 250 $0.0080
  • 500 $0.0080
  • 1,000 $0.0070
  • 2,500 $0.0050
$0.0050 / $0.1000 Buy Now
DISTI # 68AK3427
Newark Res, 100K, 1%, 0.125W, Thick Film, 0402 Rohs Compliant: Yes |Yageo AC0402FR-7W100KL RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 10,000 $0.0030
$0.0030 Buy Now
DISTI # AC0402FR-7W100KL
Avnet Americas - Tape and Reel (Alt: AC0402FR-7W100KL) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days Container: Reel 390000
  • 10,000 $0.0015
  • 20,000 $0.0015
  • 40,000 $0.0015
  • 80,000 $0.0015
  • 160,000 $0.0014
$0.0014 / $0.0015 Buy Now
DISTI # 49AK0451
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 49AK0451) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 3 Partner Stock
  • 1 $0.1000
  • 25 $0.0130
  • 100 $0.0090
  • 500 $0.0050
  • 1,000 $0.0060
$0.0050 / $0.1000 Buy Now
DISTI # AC0402FR7W100KL-0
TME Resistor: thick film Min Qty: 10000 160000
  • 10,000 $0.0012
$0.0012 Buy Now
DISTI # AC0402FR-7W100KL
Avnet Abacus - Tape and Reel (Alt: AC0402FR-7W100KL) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 24 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # AC0402FR-7W100KL
Maritex Thick Film Resistors – SMD, YAGEO, AC0402FR-7W100KL, 100 kOhm, 0402, 1 %, Thick Film Min Qty: 1 Package Multiple: 1 207531
  • 1 $0.0050
$0.0050 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 10000 290000
  • 60,000 $0.0030
  • 290,000 $0.0028
$0.0028 / $0.0030 Buy Now

US Tariff Estimator: AC0402FR-7W100KL by YAGEO Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

AC0402FR-7W100KL
YAGEO Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for AC0402FR-7W100KL

AC0402FR-7W100KL CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

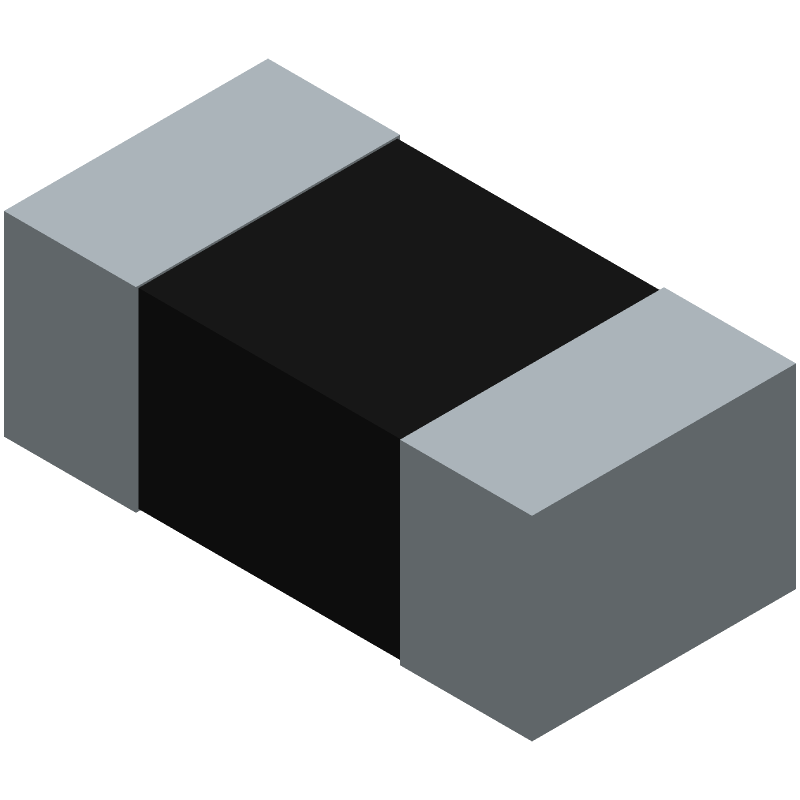

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AC0402FR-7W100KL Part Data Attributes

Parametric Data
AC0402FR-7W100KL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
AC0402FR-7W100KL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.32 Mm
Package Length 1 Mm
Package Style Smt
Package Width 0.5 Mm
Packing Method Tr, Paper, 7 Inch
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard Aec-Q200
Resistance 100000 Ω
Resistor Type Fixed Resistor
Size Code 0402
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 75 V
