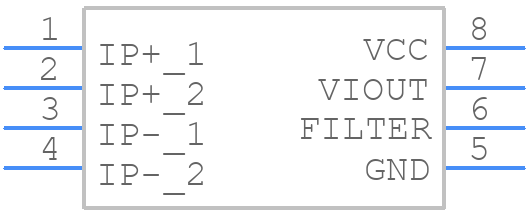

Part Symbol
-

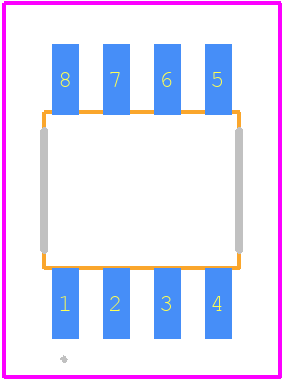

Footprint
-

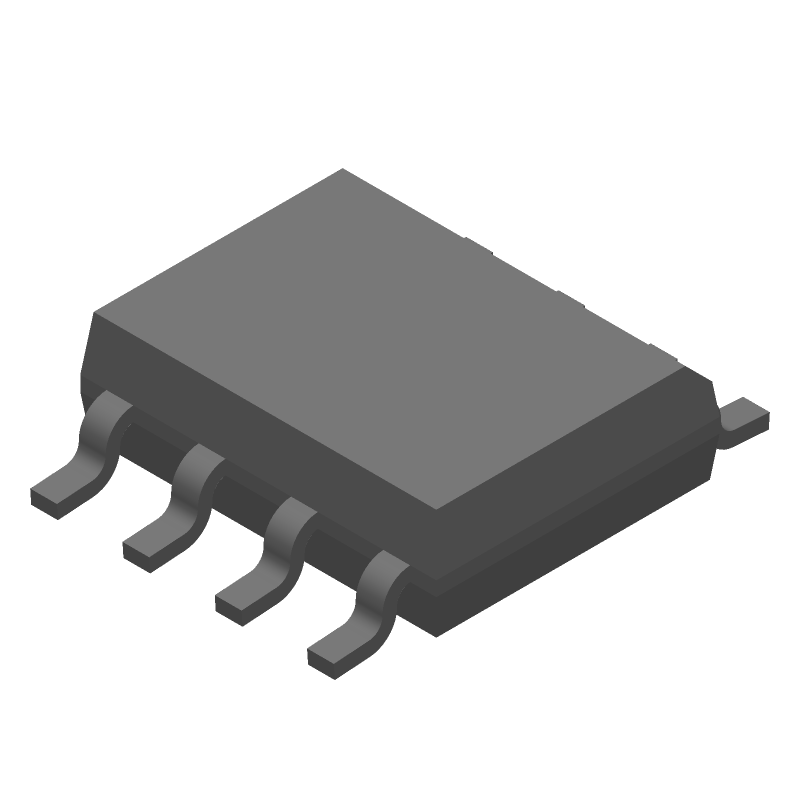

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACS713ELCTR-30A-T by Allegro MicroSystems LLC
Results Overview of ACS713ELCTR-30A-T by Allegro MicroSystems LLC
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
ACS713ELCTR-30A-T Information
ACS713ELCTR-30A-T by Allegro MicroSystems LLC is an Other Sensor/Transducer.
Other Sensors/Transducers are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 8638PPC3005LF | Amphenol Communications Solutions | D-Sub Cable Connectors, Input Output Connectors, Power Contacts 8638 Pin Crimp 30A, >200 Cycles | |
| L17DM537457 | Amphenol Communications Solutions | Dsub, Straight, Power Contact, Pin, 0.38m(15 in) Gold, 20~30A, Soldercup | |
| L17DM53744206 | Amphenol Communications Solutions | Dsub, Straight, Power Contact, Socket, 0.38m(15 in) Gold, 20~30A, Crimp |
Price & Stock for ACS713ELCTR-30A-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28X3283
|
Newark | Hall Effect Sensor, Soic-8, Full Reel, Current Sense Direction:Unidirectional, Accuracy:± 1.5%, Sensor Case/Package:Soic, No. Of Pins:8Pins, Supply Voltage Min:4.5V, Supply Voltage Max:5V, Isolation Voltage:2.1Kvrms, Accuracy:1.5% Rohs Compliant: Yes |Allegro Microsystems ACS713ELCTR-30A-T RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
|
Rochester Electronics | Current Sensor, Analog, BICMOS, 8 Pin, Plastic RoHS: Compliant Status: Active Min Qty: 1 | 3 |
|
$1.3100 / $1.6400 | Buy Now |
|
DISTI #
ACS713ELCTR-30A
|
TME | Sensor: Hall, SO8, Usup: 4.5÷5.5VDC, Iswitch: 10mA, Ioper: 30A Min Qty: 1 | 41 |
|
$5.6000 / $6.4300 | Buy Now |
|
|
Chip Stock | HallEffectBasedLinearCurrentSensor8-PinSOICNT/R | 11010 |
|
RFQ | |
|
|
LCSC | 30A 2.1kVrms 133mV/A SOIC-8 Current Sensors RoHS | 29 |
|
$1.4891 / $2.6133 | Buy Now |
|
|
Win Source Electronics | SENSOR CURRENT HALL 30A DC | 9510 |
|
$1.4480 / $1.8703 | Buy Now |
Part Details for ACS713ELCTR-30A-T
ACS713ELCTR-30A-T CAD Models
ACS713ELCTR-30A-T Part Data Attributes
|
|
ACS713ELCTR-30A-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
ACS713ELCTR-30A-T
Allegro MicroSystems LLC
Analog Circuit, 1 Func, BICMOS, PDSO8, SOIC-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Body Breadth | 3.9 mm | |
| Body Height | 1.47 mm | |
| Body Length or Diameter | 4.9 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | ANALOG | |
| Output Type | ANALOG VOLTAGE | |
| Package Body Material | PLASTIC | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | CURRENT SENSOR | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Surface Mount | YES | |
| Technology | BICMOS |
ACS713ELCTR-30A-T Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
-
The output voltage of the ACS713ELCTR-30A-T is proportional to the input current. The output voltage can be calculated using the sensitivity specification in the datasheet, which is typically 185 mV/A.
-
The bandwidth of the ACS713ELCTR-30A-T is typically 80 kHz. This means that the device can accurately measure currents with frequencies up to 80 kHz.
-
Yes, the ACS713ELCTR-30A-T can be used to measure AC currents. However, the device is optimized for DC current measurement, and the accuracy may degrade at high frequencies.
-
The accuracy of the ACS713ELCTR-30A-T can be affected by temperature. The device has a specified operating temperature range of -20°C to 85°C, and the accuracy may degrade outside of this range.
