Part Details for AD1674ARZ by Analog Devices Inc
Results Overview of AD1674ARZ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD1674ARZ Information
AD1674ARZ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD1674ARZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9111
|
Newark | Adc, 12Bit, 100Ksps, Soic-28, Resolution (Bits):12Bit, Sampling Rate:100Ksps, Input Channel Type:Bipolar, Unipolar, Data Interface:Parallel, Supply Voltage Type:Dual (+/-), Supply Voltage Min:11.4V, Supply Voltage Max:16.5V Rohs Compliant: Yes |Analog Devices AD1674ARZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 41 |
|
$39.5100 / $52.2500 | Buy Now |
|
|
Analog Devices Inc | IC, MONO 12-BIT ADC IC Package Multiple: 27 | 4868 |
|
$28.1900 / $52.2500 | Buy Now |
|
DISTI #
AD1674ARZ
|
TME | IC: A/D converter, 12bit, 100ksps, SO28-W Min Qty: 1 | 0 |
|
$39.0000 / $54.6000 | RFQ |
|
DISTI #
AD1674ARZ
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 27 | 0 |
|
$40.6600 / $43.4400 | Buy Now |
|
|
Chip Stock | SingleChannelSingleADCSAR100ksps12-bitParallel28-PinSOICWTube | 325 |
|
RFQ |
US Tariff Estimator: AD1674ARZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD1674ARZ
AD1674ARZ CAD Models
-

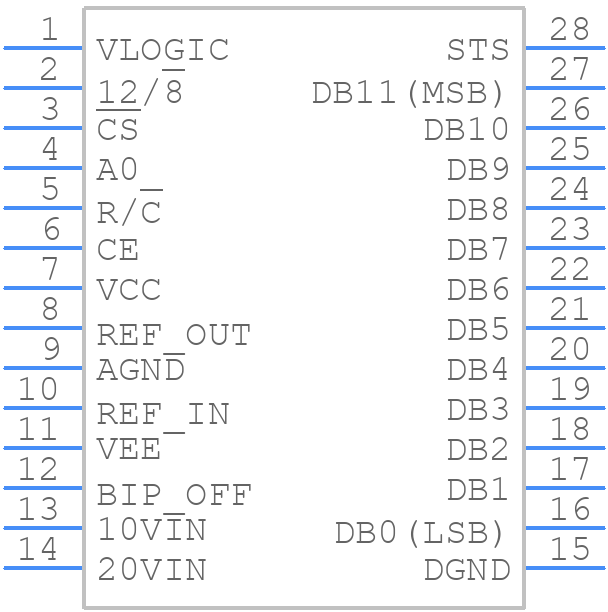

Part Symbol
-

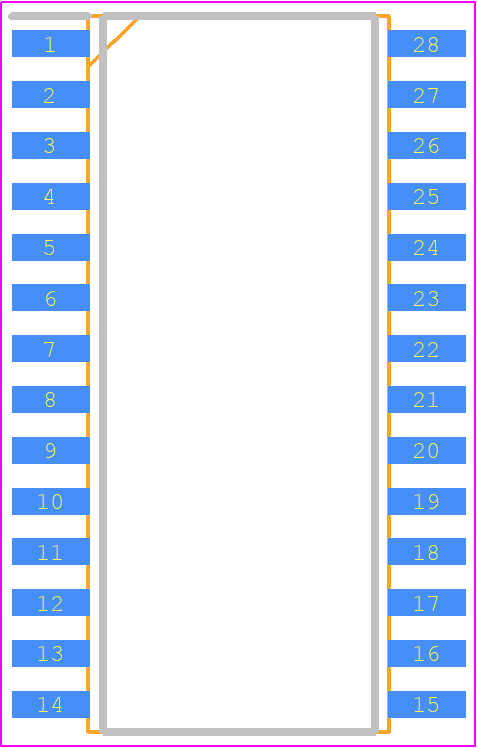

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD1674ARZ Part Data Attributes
|
|
AD1674ARZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD1674ARZ
Analog Devices Inc
12-Bit, 100 kSPS, Complete ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop28,.4 | |
| Pin Count | 28 | |
| Manufacturer Package Code | RW-28 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 20 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 10 µS | |
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 17.9 Mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 3 | |
| Negative Supply Voltage-Nom | -15 V | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | Parallel, Word | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP28,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.111 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 2.65 Mm | |
| Supply Current-Max | 18 Ma | |
| Supply Voltage-Nom | 15 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm |
Alternate Parts for AD1674ARZ
This table gives cross-reference parts and alternative options found for AD1674ARZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD1674ARZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD1674JRZ | Analog Devices Inc | $26.1389 | 12-Bit, 100 kSPS, Complete ADC | AD1674ARZ vs AD1674JRZ |
| SP1674BAS | Sipex Corporation | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, PDSO28, 0.300 INCH, SOIC-28 | AD1674ARZ vs SP1674BAS |
| AD1674JR-REEL | Analog Devices Inc | Check for Price | 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28, PLASTIC, SOIC-28 | AD1674ARZ vs AD1674JR-REEL |
| AD1674JRZ-REEL | Analog Devices Inc | Check for Price | 12-Bit, 100 kSPS, Complete ADC | AD1674ARZ vs AD1674JRZ-REEL |
| SP1674BJS | Sipex Corporation | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, PDSO28, 0.300 INCH, SOIC-28 | AD1674ARZ vs SP1674BJS |
AD1674ARZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures proper operation and prevents damage to the device.
-
To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input signals away from digital signals. Also, use short, direct traces for the analog input signals and decouple the power supplies with capacitors.
-
The maximum sampling rate of the AD1674ARZ is 100 kSPS. However, the actual sampling rate may be limited by the system's clock frequency and the conversion time of the ADC.
-
The AD1674ARZ outputs 16-bit data in a twos-complement format. The most significant bit (MSB) represents the sign bit, and the remaining 15 bits represent the magnitude of the signal. The output data can be processed using a microcontroller or a digital signal processor.
-
The VREF pin is used to set the reference voltage for the ADC. The reference voltage determines the full-scale range of the ADC. The VREF pin can be connected to an external reference voltage source or to the internal reference voltage (VREF = 2.5 V) by connecting it to the VCC pin.
