Part Details for AD1674BRZ by Analog Devices Inc
Results Overview of AD1674BRZ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD1674BRZ Information
AD1674BRZ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD1674BRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6177
|
Newark | Adc, 12Bit, 100Ksps, Soic-28, Resolution (Bits):12Bit, Sampling Rate:100Ksps, Input Channel Type:Bipolar, Unipolar, Data Interface:Parallel, Supply Voltage Type:Dual (+/-), Supply Voltage Min:11.4V, Supply Voltage Max:16.5V Rohs Compliant: Yes |Analog Devices AD1674BRZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$65.4900 | Buy Now |
|
|
Analog Devices Inc | IC, MONO 12-BIT ADC IC Package Multiple: 1 | 0 |
|
$37.0300 / $65.4900 | Buy Now |
|
DISTI #
AD1674BRZ
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 12 | 0 |
|
$53.7300 / $59.8700 | Buy Now |
|
|
Vyrian | Converters | 45 |
|
RFQ | |
|
|
Win Source Electronics | 12-Bit 100 kSPS A/D Converter | IC ADC 12BIT SAR 28SOIC | 540 |
|
$54.5454 / $81.8181 | Buy Now |
US Tariff Estimator: AD1674BRZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD1674BRZ
AD1674BRZ CAD Models
-

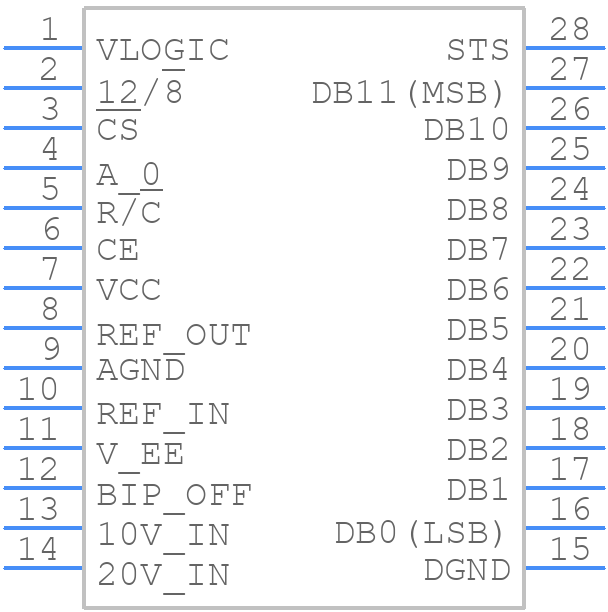

Part Symbol
-

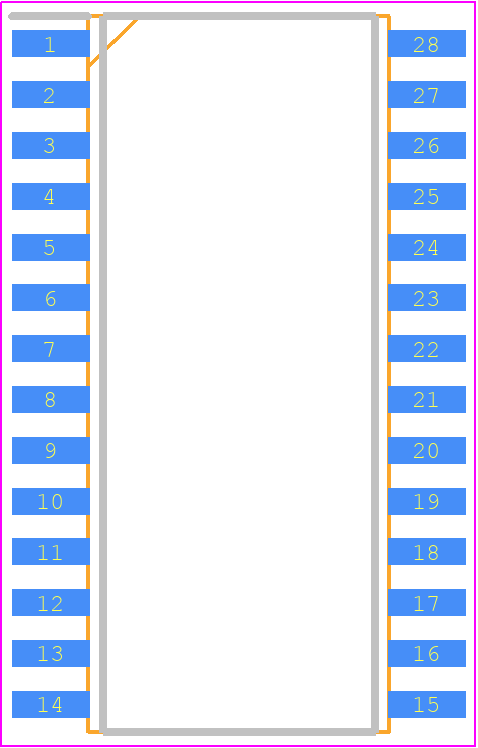

Footprint
-

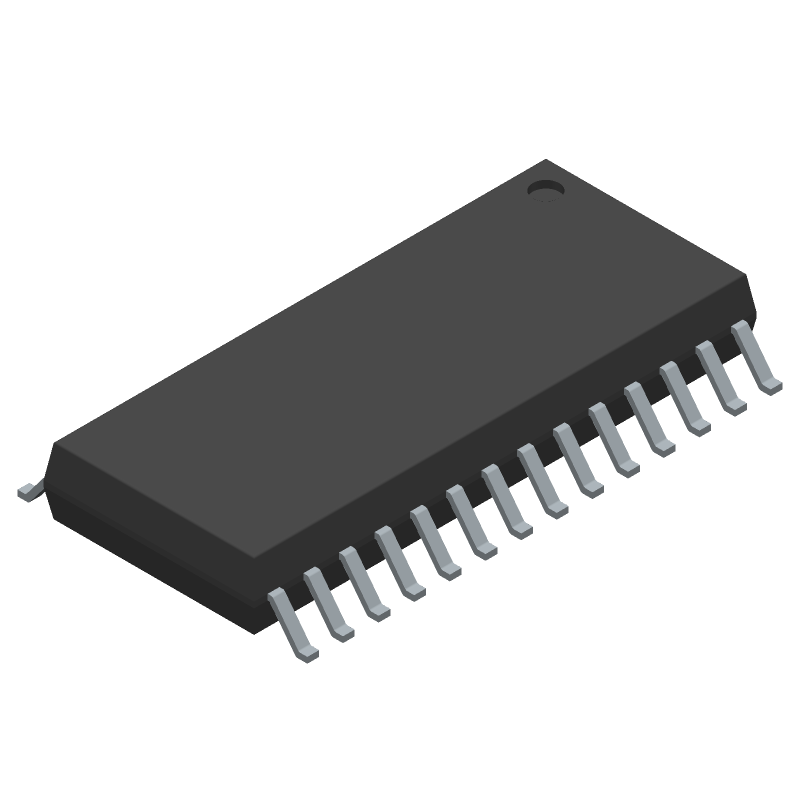

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD1674BRZ Part Data Attributes
|
|
AD1674BRZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD1674BRZ
Analog Devices Inc
12-Bit, 100 kSPS, Complete ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP28,.4 | |
| Pin Count | 28 | |
| Manufacturer Package Code | RW-28 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 20 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 10 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 17.9 mm | |
| Linearity Error-Max (EL) | 0.0122% | |
| Moisture Sensitivity Level | 3 | |
| Negative Supply Voltage-Nom | -15 V | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP28,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.111 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 18 mA | |
| Supply Voltage-Nom | 15 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for AD1674BRZ
This table gives cross-reference parts and alternative options found for AD1674BRZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD1674BRZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SP1674BBS | Sipex Corporation | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, PDSO28, 0.300 INCH, SOIC-28 | AD1674BRZ vs SP1674BBS |
| AD1674KR | Analog Devices Inc | Check for Price | 12-Bit, 100 kSPS, Complete ADC | AD1674BRZ vs AD1674KR |
| SP1674BKS | Sipex Corporation | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, PDSO28, 0.300 INCH, SOIC-28 | AD1674BRZ vs SP1674BKS |
| SP1674BKS | Exar Corporation | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, PDSO28, 0.300 INCH, SOIC-28 | AD1674BRZ vs SP1674BKS |
AD1674BRZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
-
To optimize performance in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a ferrite bead or common-mode choke on the power supply lines.
-
The maximum sampling rate of the AD1674BRZ is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the conversion time of the ADC.
-
To handle overvoltage conditions, use a voltage clamp or a voltage limiter circuit on the analog input to prevent damage to the ADC. Additionally, consider using a resistive divider or an attenuator to reduce the input voltage.
-
For optimal performance, keep the analog and digital signal paths separate, use a ground plane, and minimize the length of the analog input traces. Also, avoid running digital signals near the analog input traces.
