Part Details for AD2S1210WDSTZRL7 by Analog Devices Inc
Results Overview of AD2S1210WDSTZRL7 by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Aerospace and Defense
Agriculture Technology
Renewable Energy
Robotics and Drones
AD2S1210WDSTZRL7 Information
AD2S1210WDSTZRL7 by Analog Devices Inc is a Position Converter.
Position Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD2S1210WDSTZRL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6187
|
Newark | R/D 10-Bit To 16-Bit Converter, 125Deg C, Ic Function:R/D 10-Bit To 16-Bit Converter, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Ic Package Type:Lqfp, No. Of Pins:48Pins, Operating Temperature Min:-40°C, Product Range:- Rohs Compliant: Yes |Analog Devices AD2S1210WDSTZRL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 291 |
|
$19.1100 / $28.9500 | Buy Now |
|
|
Analog Devices Inc | 16-BIT PROG RESOLVER-DIGITAL C Min Qty: 1 Package Multiple: 500 | 12664 |
|
$16.9000 / $32.1700 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 20 |
|
$22.8000 | Buy Now |
|
|
Rochester Electronics | Synchro or Resolver to Digital Converter, PQFP48 RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$17.7900 / $22.2400 | Buy Now |
|
|
ComSIT USA | Synchro or Resolver to Digital Converter, PQFP48 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
AD2S1210WDSTZR7
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 500 | 0 |
|
$22.1000 / $22.3900 | Buy Now |
|
DISTI #
SMC-AD2S1210WDSTZRL7
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: TBC | 18308 |
|
RFQ | |
|
DISTI #
SMC-AD2S1210WDSTZRL7
|
Sensible Micro Corporation | Variable Resolution, 10-Bit To 16-Bit R/D Converter RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2034 Container: Bulk | 82 |
|
RFQ | |
|
|
Chip Stock | ResolvertoDigital16-BitParallel/Serial(4-Wire,SPI)±5arcmin48-PinLQFPT/R | 10790 |
|
RFQ | |
|
|
Win Source Electronics | Variable Resolution, 10-Bit to 16-Bit R/D Converter | 9290 |
|
$4.6993 / $6.0699 | Buy Now |
US Tariff Estimator: AD2S1210WDSTZRL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD2S1210WDSTZRL7
AD2S1210WDSTZRL7 CAD Models
-

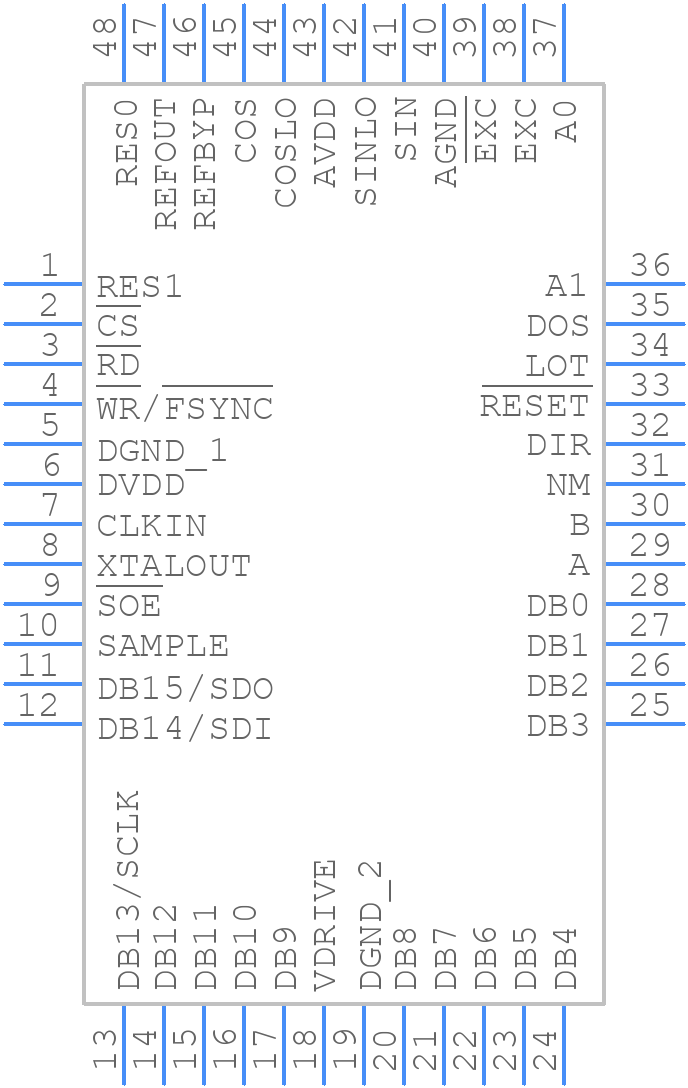

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD2S1210WDSTZRL7 Part Data Attributes
|
|
AD2S1210WDSTZRL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD2S1210WDSTZRL7
Analog Devices Inc
Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | LFQFP, | |
| Pin Count | 48 | |
| Manufacturer Package Code | ST-48 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2.3 V | |
| Angular Accuracy-Max | 4 arc min | |
| Converter Type | SYNCHRO OR RESOLVER TO DIGITAL CONVERTER | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.6 mm | |
| Signal/Output Frequency | 10000 Hz | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Tracking Rate-Max | 18 rps | |
| Width | 7 mm |
AD2S1210WDSTZRL7 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the power supply lines away from the analog signals.
-
Calibration involves adjusting the internal gain and offset of the ADC to match the specific requirements of your application. Follow the calibration procedure outlined in the datasheet, and use the provided calibration software or write your own code to adjust the calibration coefficients.
-
Power up the AVDD and DVDD pins simultaneously, followed by the VREF pin. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
-
Use a FIFO or a buffer to handle the digital output data, and ensure that the data is clocked out of the ADC at a rate that is at least twice the sampling frequency. Use a CRC or checksum to ensure data integrity and detect any errors.
-
Ensure good airflow around the device, and use a heat sink or thermal pad to dissipate heat. Keep the device away from heat sources and ensure that the PCB is designed to dissipate heat efficiently.
