AD5300BRTZ-REEL7 Information
AD5300BRTZ-REEL7 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5300BRTZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9655
|
Newark | Dac, 8Bit, Sot-23-6, -40 To 105Deg C, Resolution (Bits):8Bit, Sampling Rate:-, Data Interface:3 Wire, Dsp, Microwire, Qspi, Serial, Spi, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Sot-23, No. Of Pins:6Pins Rohs Compliant: Yes |Analog Devices AD5300BRTZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2021 |
|
$2.6000 / $6.3700 | Buy Now |
|
|
Analog Devices Inc | 8-BIT Vout DAC I.C. Min Qty: 1 Package Multiple: 3000 | 1162 |
|
$2.6000 / $6.5900 | Buy Now |
|
|
Bristol Electronics | 843 |
|
RFQ | ||
|
|
Bristol Electronics | 6 |
|
RFQ | ||
|
|
Rochester Electronics | D/A Converter, 1 Func, Serial Input Loading, 4us Settling Time, PDSO6 RoHS: Compliant Status: Active Min Qty: 1 | 15733 |
|
$2.1900 / $2.7400 | Buy Now |
|
|
Ameya Holding Limited | IC DAC 8BIT R-R 2.7-5.5V SOT23-6 | 1345 |
|
RFQ | |
|
DISTI #
AD5300BRTZ-R7
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 3000 | 0 |
|
$2.7200 | Buy Now |
|
|
Chip Stock | 2.7Vto5.5V,140µA,Rail-to-RailVoltageOutput8-BitDACinSOT-23andMicroSOICPackages | 2660 |
|
RFQ | |
|
|
Component Electronics, Inc | SMT TAPE | 36 |
|
$1.5000 / $2.3100 | Buy Now |
|
|
Win Source Electronics | IC DAC 8BIT R-R 2.7-5.5V SOT23-6 | 1160 |
|
$3.3367 / $5.0050 | Buy Now |
US Tariff Estimator: AD5300BRTZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD5300BRTZ-REEL7
AD5300BRTZ-REEL7 CAD Models
-

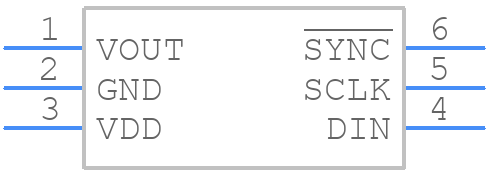

Part Symbol
-
Footprint
-

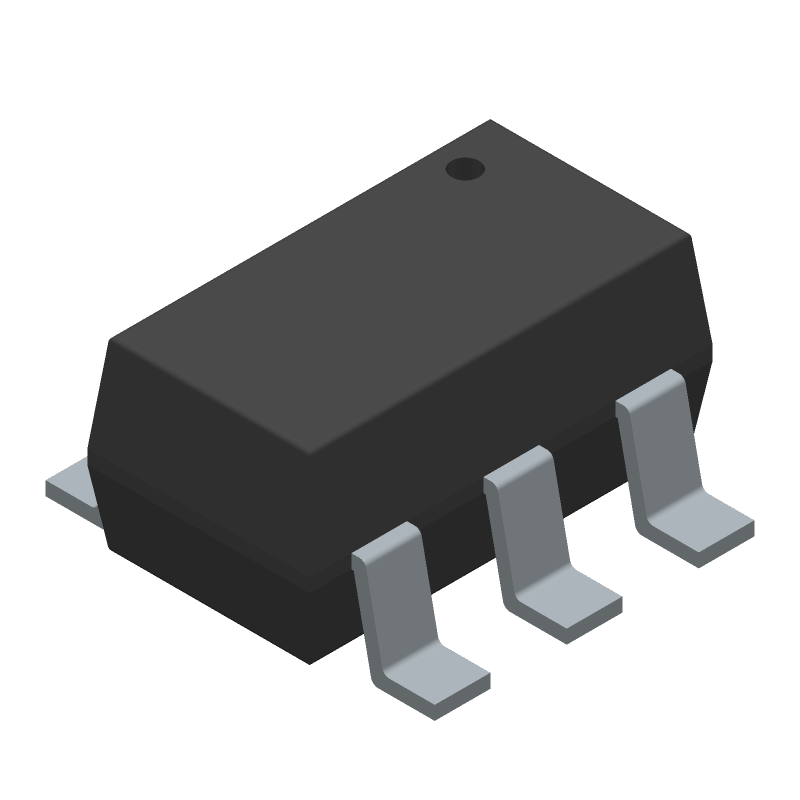

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD5300BRTZ-REEL7 Part Data Attributes
|
|
AD5300BRTZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5300BRTZ-REEL7
Analog Devices Inc
2.7 V to 5.5 V, 140 µA, Rail-to-Rail Voltage Output 8-Bit DAC in SOT-23 and MicroSOIC Packages
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Lssop, Tsop6,.11,37 | |
| Pin Count | 6 | |
| Manufacturer Package Code | RJ-6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Serial | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 Mm | |
| Linearity Error-Max (EL) | 0.3906% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 Mm | |
| Settling Time-Max | 6 µS | |
| Settling Time-Nom (tstl) | 4 µS | |
| Supply Current-Max | 0.25 Ma | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Width | 1.6 Mm |
Alternate Parts for AD5300BRTZ-REEL7
This table gives cross-reference parts and alternative options found for AD5300BRTZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5300BRTZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5300BRTZ-500RL7 | Analog Devices Inc | $3.5098 | 2.7 V to 5.5 V, 140 µA, Rail-to-Rail Voltage Output 8-Bit DAC in SOT-23 and MicroSOIC Packages | AD5300BRTZ-REEL7 vs AD5300BRTZ-500RL7 |
AD5300BRTZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD5300BRTZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure accurate voltage reference performance, it's essential to decouple the VREF pin with a 10nF capacitor to GND, and use a low-noise, low-impedance power supply. Additionally, keep the voltage reference input pin (VIN) away from noisy digital signals.
-
The recommended input voltage range for the AD5300BRTZ-REEL7 is 2.7V to 5.5V. Operating the device outside this range may affect its performance and accuracy.
-
To minimize power consumption, use the power-down mode (PD pin) when the device is not in use. Additionally, consider using a low-power mode (LPM pin) to reduce power consumption during normal operation.
-
The thermal impedance of the AD5300BRTZ-REEL7 package is typically around 30°C/W. This value can be used to estimate the junction temperature of the device in a given application.
