Part Details for AD5684RBRUZ by Analog Devices Inc
Results Overview of AD5684RBRUZ by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD5684RBRUZ Information
AD5684RBRUZ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5684RBRUZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6647
|
Newark | Dac, 12Bit, Tssop-16, -40 To 105Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:3 Wire, Dsp, Microwire, Qspi, Serial, Spi, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Tssop, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices AD5684RBRUZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 101 |
|
$8.7600 / $16.2900 | Buy Now |
|
|
Analog Devices Inc | 12-bit 4-ch SPI nanoDAC+with o Package Multiple: 96 | 12078 |
|
$6.4900 / $16.2900 | Buy Now |
|
|
Bristol Electronics | 2 |
|
RFQ | ||
|
|
Rochester Electronics | D/A Converter, 1 Func, Serial Input Loading, 5us Settling Time, PDSO16 RoHS: Compliant Status: Active Min Qty: 1 | 3 |
|
$7.3800 / $9.2200 | Buy Now |
|
|
Chip Stock | DAC4-CHResistor-String12-bit16-PinTSSOPTube | 5110 |
|
RFQ | |
|
|
Win Source Electronics | Quad, 16-/14-/12-Bit nanoDAC | IC DAC 12BIT V-OUT 16TSSOP | 4670 |
|
$7.3715 / $9.5214 | Buy Now |
US Tariff Estimator: AD5684RBRUZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD5684RBRUZ
AD5684RBRUZ CAD Models
-

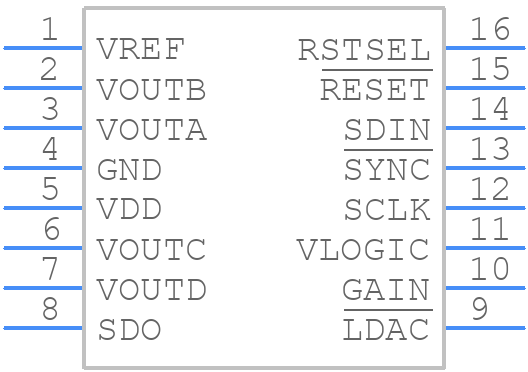

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD5684RBRUZ Part Data Attributes
|
|
AD5684RBRUZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5684RBRUZ
Analog Devices Inc
Quad, 12-Bit nanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Output Voltage-Max | 2.5025 V | |
| Analog Output Voltage-Min | 2.4975 V | |
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY | |
| Input Format | Serial | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 5 Mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Settling Time-Max | 7 µS | |
| Settling Time-Nom (tstl) | 5 µS | |
| Supply Current-Max | 1.3 Ma | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Width | 4.4 Mm |
Alternate Parts for AD5684RBRUZ
This table gives cross-reference parts and alternative options found for AD5684RBRUZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5684RBRUZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5684RBRUZ-RL7 | Analog Devices Inc | Check for Price | Quad, 12-Bit nanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface | AD5684RBRUZ vs AD5684RBRUZ-RL7 |
AD5684RBRUZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the internal voltage regulators are powered up correctly.
-
To ensure accurate voltage output, it is essential to decouple the AVDD and DVDD pins with 0.1 μF and 10 μF capacitors, respectively. Additionally, use a low-noise, low-dropout regulator for the AVDD supply, and ensure that the output voltage is within the specified range.
-
The maximum output current capability of the AD5684RBRUZ is 10 mA. Exceeding this limit may cause the output voltage to droop or the device to overheat.
-
The AD5684RBRUZ can be interfaced with a microcontroller using a standard SPI interface. The microcontroller should be configured to operate in SPI mode, and the AD5684RBRUZ should be connected to the microcontroller's SPI pins (SCK, MOSI, and MISO).
-
The CLR (Clear) pin is an active-low input that resets the DAC output to zero scale (0 V) when pulled low. This pin can be used to reset the DAC output to a known state during power-up or when the device is not in use.
