Part Details for AD5933YRSZ by Analog Devices Inc
Results Overview of AD5933YRSZ by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Healthcare
Electronic Manufacturing
Medical Imaging
AD5933YRSZ Information
AD5933YRSZ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for AD5933YRSZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6709
|
Newark | Impedance Converter, 12Bit, 200Khz, Ssop, Ic Function:12Bit Impedance Converter, Network Analyzer, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Ic Package Type:Ssop, No. Of Pins:16Pins, Operating Temperature Min:-40°C Rohs Compliant: Yes |Analog Devices AD5933YRSZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 27 |
|
$13.5000 / $21.3200 | Buy Now |
|
|
Analog Devices Inc | 12BIT 1 MSPS, Impedance Conver Package Multiple: 77 | 325 |
|
$9.9600 / $21.3200 | Buy Now |
|
|
Rochester Electronics | Analog Circuit, 1 Func, 1 Channel, PDSO16 RoHS: Compliant Status: Active Min Qty: 1 | 12 |
|
$10.4900 / $13.1100 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Chip Stock | DirectDigitalSynthesizer16.776MHz1-DAC12bitSerial(I2C)16-PinSSOPTube | 3870 |
|
RFQ | |
|
|
Win Source Electronics | NETWORK ANALYZER 12B 1MSP 16SSOP | 2374 |
|
$10.4788 / $15.7182 | Buy Now |
US Tariff Estimator: AD5933YRSZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD5933YRSZ
AD5933YRSZ CAD Models
-

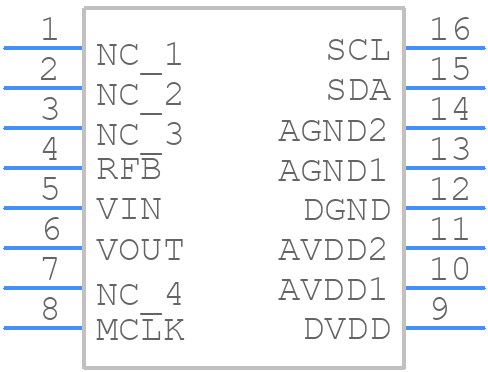

Part Symbol
-

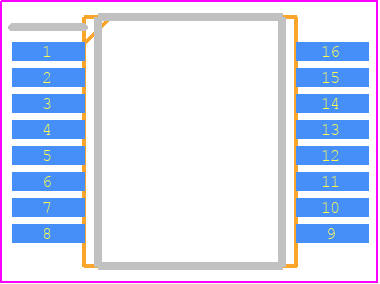

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD5933YRSZ Part Data Attributes
|
|
AD5933YRSZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5933YRSZ
Analog Devices Inc
1 MSPS, 12-Bit Impedance Converter, Network Analyzer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SSOP | |
| Package Description | Ssop, Ssop16,.3 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RS-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Analog Circuit | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 6.2 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.3 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 Mm |
Alternate Parts for AD5933YRSZ
This table gives cross-reference parts and alternative options found for AD5933YRSZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5933YRSZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5933YRSZ-REEL7 | Analog Devices Inc | $13.5806 | 1 MSPS, 12-Bit Impedance Converter, Network Analyzer | AD5933YRSZ vs AD5933YRSZ-REEL7 |
| AD5934YRSZ | Analog Devices Inc | $15.0420 | 250 kSPS, 12-Bit Impedance Converter, Network Analyzer | AD5933YRSZ vs AD5934YRSZ |
| AD5934BRSZ-U1 | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDSO16, LEAD FREE, MO-150AC, SSOP-16, Analog IC:Other | AD5933YRSZ vs AD5934BRSZ-U1 |
AD5933YRSZ Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration and avoid routing digital signals near the analog signals.
-
Calibration involves shorting the input pins and measuring the resulting impedance. Then, open-circuit the input pins and measure the impedance again. Use these two measurements to calculate the calibration coefficients. Refer to the datasheet for the calibration procedure.
-
The AD5933YRSZ can operate up to 100 kHz. However, the maximum frequency range depends on the impedance being measured. For accurate measurements, the frequency range should be limited to 10 kHz to 50 kHz, depending on the impedance range.
-
Use a temperature sensor to monitor the temperature and compensate for the drift. The AD5933YRSZ has a built-in temperature sensor, or an external temperature sensor can be used. Apply temperature correction coefficients to the impedance measurements to ensure accuracy over the desired temperature range.
-
Use a low-ESR capacitor (e.g., 10 μF) and a high-frequency capacitor (e.g., 100 nF) in parallel to decouple the power supply. Add a ferrite bead or a pi-filter to filter out high-frequency noise. Ensure the power supply is well-regulated and has a low noise floor.
