AD7768-4BSTZ-RL7 Information
AD7768-4BSTZ-RL7 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7768-4BSTZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | 256ksps 4 ch wideband 24B SD-A Min Qty: 1 Package Multiple: 300 | 56 |
|
$13.2300 / $28.2400 | Buy Now |
|
DISTI #
AD77684BSTZRL7
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 300 | 0 |
|
$18.7200 / $19.4600 | Buy Now |
|
|
Win Source Electronics | IC ADC 24BIT SIGMA-DELTA 64LQFP / 24 Bit Analog to Digital Converter 4 Input 4 Sigma-Delta 64-LQFP (10x10) | 2780 |
|
$21.4825 / $27.7482 | Buy Now |
US Tariff Estimator: AD7768-4BSTZ-RL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD7768-4BSTZ-RL7
AD7768-4BSTZ-RL7 CAD Models
-

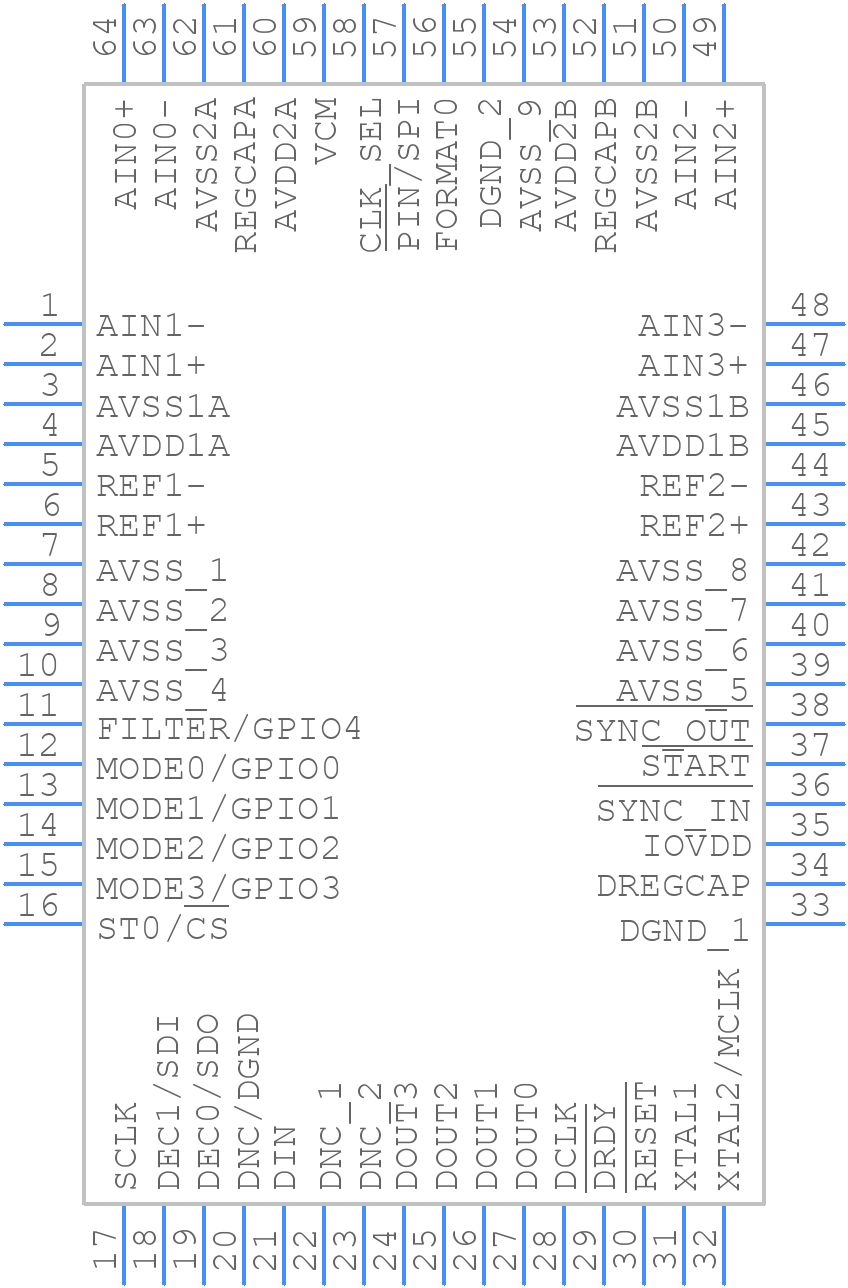

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD7768-4BSTZ-RL7 Part Data Attributes
|
|
AD7768-4BSTZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7768-4BSTZ-RL7
Analog Devices Inc
4-Channel, 24-Bit, Simultaneous Sampling ADC, Power Scaling, 110.8 kHz BW
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFQFP, | |
| Pin Count | 64 | |
| Manufacturer Package Code | ST-64-2 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-03-22 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | -1 V | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | S-PQFP-G64 | |
| Length | 10 mm | |
| Linearity Error-Max (EL) | 0.0007% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL, PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 0.256 MHz | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm |
