Part Details for AD8228BRZ by Analog Devices Inc
Results Overview of AD8228BRZ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8228BRZ Information
AD8228BRZ by Analog Devices Inc is an Instrumentation Amplifier.
Instrumentation Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8228BRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7376
|
Newark | Instrumentation Amp, 650Khz, Nsoic, No. Of Channels:1Channels, Input Offset Voltage:50Μv, Gain Bandwidth Product:650Khz, Supply Voltage Range:± 2.3V To ± 18V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Cmrr:120Db, Product Range:- Rohs Compliant: Yes |Analog Devices AD8228BRZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 33 |
|
$7.2700 / $14.1500 | Buy Now |
|
|
Analog Devices Inc | Fixed Gain Precision InAmp Package Multiple: 98 | 3358 |
|
$5.3400 / $14.1500 | Buy Now |
|
|
Rochester Electronics | Instrumentation Amplifier, 1 Func, 50uV Offset-Max, 0.65MHz Band Width, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 36 |
|
$6.1300 / $7.6600 | Buy Now |
|
DISTI #
AD8228BRZ
|
Richardson RFPD | AMPLIFIER - SPECIAL PURPOSE RoHS: Compliant Min Qty: 98 | 0 |
|
$7.6100 / $8.1300 | Buy Now |
US Tariff Estimator: AD8228BRZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD8228BRZ
AD8228BRZ CAD Models
-

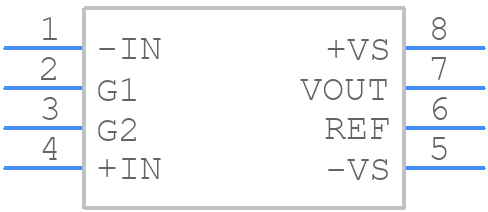

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD8228BRZ Part Data Attributes
|
|
AD8228BRZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8228BRZ
Analog Devices Inc
Low Gain Drift Precision Instrumentation Amplifier Fixed G = 10, 100
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Rohs Compliant, Ms-012aa, Soic-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Instrumentation Amplifier | |
| Average Bias Current-Max (IIB) | 0.0006 µA | |
| Bandwidth (3dB)-Nom | 0.65 Mhz | |
| Common-mode Reject Ratio-Min | 100 Db | |
| Input Offset Current-Max (IIO) | 0.0004 µA | |
| Input Offset Voltage-Max | 50 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Non-linearity-Max | 0.001% | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Nom | 2.5 V/Us | |
| Supply Current-Max | 1.2 Ma | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Gain-Max | 1.0001 | |
| Voltage Gain-Min | 0.9999 | |
| Voltage Gain-Nom | 1 | |
| Width | 3.9 Mm |
Alternate Parts for AD8228BRZ
This table gives cross-reference parts and alternative options found for AD8228BRZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8228BRZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD621BRZ | Analog Devices Inc | $18.5833 | Low Drift, Low Power Instrumentation Amp with fixed gains of 10 and 100 | AD8228BRZ vs AD621BRZ |
| AD8226BRZ | Analog Devices Inc | $3.6765 | Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier | AD8228BRZ vs AD8226BRZ |
| AD621BR-REEL | Analog Devices Inc | Check for Price | INSTRUMENTATION AMPLIFIER, 215uV OFFSET-MAX, 0.2MHz BAND WIDTH, PDSO8, PLASTIC, SOIC-8 | AD8228BRZ vs AD621BR-REEL |
| LT1167CS8-1#TRPBF | Linear Technology | Check for Price | LT1167 - Single Resistor Gain Programmable, Precision Instrumentation Amplifier; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | AD8228BRZ vs LT1167CS8-1#TRPBF |
| AD621BR | Analog Devices Inc | Check for Price | Low Drift, Low Power Instrumentation Amp with fixed gains of 10 and 100 | AD8228BRZ vs AD621BR |
| AD621AR-REEL | Analog Devices Inc | Check for Price | IC INSTRUMENTATION AMPLIFIER, 185 uV OFFSET-MAX, 0.2 MHz BAND WIDTH, PDSO8, PLASTIC, SOIC-8, Instrumentation Amplifier | AD8228BRZ vs AD621AR-REEL |
| AD621ARZ-REEL7 | Analog Devices Inc | Check for Price | IC INSTRUMENTATION AMPLIFIER, 185 uV OFFSET-MAX, 0.2 MHz BAND WIDTH, PDSO8, PLASTIC, SOIC-8, Instrumentation Amplifier | AD8228BRZ vs AD621ARZ-REEL7 |
| AD621AR-REEL7 | Analog Devices Inc | Check for Price | Low Drift, Low Power Instrumentation Amp with fixed gains of 10 and 100 | AD8228BRZ vs AD621AR-REEL7 |
| AD621ARZ-REEL | Analog Devices Inc | Check for Price | IC INSTRUMENTATION AMPLIFIER, 185 uV OFFSET-MAX, 0.2 MHz BAND WIDTH, PDSO8, PLASTIC, SOIC-8, Instrumentation Amplifier | AD8228BRZ vs AD621ARZ-REEL |
| SN412014DRE4 | Texas Instruments | Check for Price | INSTRUMENTATION AMPLIFIER, 550uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | AD8228BRZ vs SN412014DRE4 |
AD8228BRZ Frequently Asked Questions (FAQ)
-
The AD8228BRZ is a high-gain, high-impedance amplifier, so it's crucial to follow proper layout and placement guidelines to minimize noise and parasitic capacitance. Keep the input traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
-
To optimize the gain and bandwidth of the AD8228BRZ, adjust the gain-setting resistors (Rg) and the compensation capacitor (Cc) according to the datasheet. For higher gains, use smaller Rg values, and for higher bandwidths, use smaller Cc values. However, be aware that increasing the gain can compromise the amplifier's stability.
-
The AD8228BRZ can handle input voltages up to ±10V, but it's essential to ensure that the input voltage does not exceed the power supply voltage (±Vs) to prevent damage to the amplifier.
-
To reduce noise and EMI, use proper shielding, grounding, and layout techniques. Use a solid ground plane, keep the input traces short, and avoid running digital and analog traces parallel to each other. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
-
Yes, the AD8228BRZ can be used as a single-ended amplifier by connecting the negative input to ground and using the positive input as the signal input. However, keep in mind that the amplifier's common-mode rejection ratio (CMRR) will be compromised in single-ended mode.
