Part Details for AD9222ABCPZ-40 by Analog Devices Inc
Results Overview of AD9222ABCPZ-40 by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Financial Technology (Fintech)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
AD9222ABCPZ-40 Information
AD9222ABCPZ-40 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9222ABCPZ-40
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AK1401
|
Newark | Adc, 12Bit, 40Msps, Lfcsp-Vq-Ep-64, Resolution (Bits):12Bit, Sampling Rate:40Msps, Input Channel Type:Differential, Single Ended, Data Interface:Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:1.7V, No. Of Pins:64Pins Rohs Compliant: Yes |Analog Devices AD9222ABCPZ-40 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 14 |
|
$68.4600 / $82.1000 | Buy Now |
|
|
Analog Devices Inc | Octal 12 bit, 40 MSPS serial L Package Multiple: 1 | 424 |
|
$53.5300 / $86.4200 | Buy Now |
|
DISTI #
AD9222ABCPZ-40
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 8 | 0 |
|
$75.3900 / $86.4800 | Buy Now |
US Tariff Estimator: AD9222ABCPZ-40 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD9222ABCPZ-40
AD9222ABCPZ-40 CAD Models
-

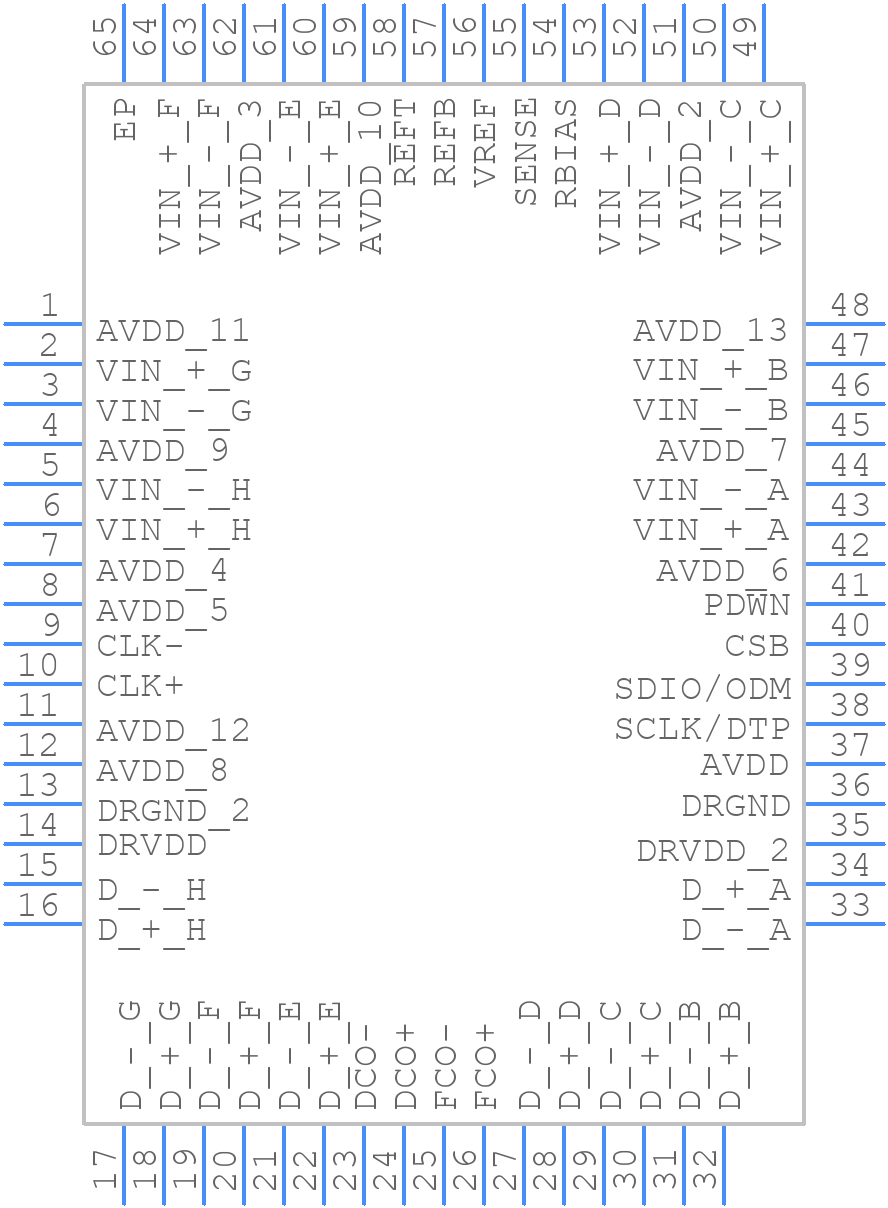

Part Symbol
-

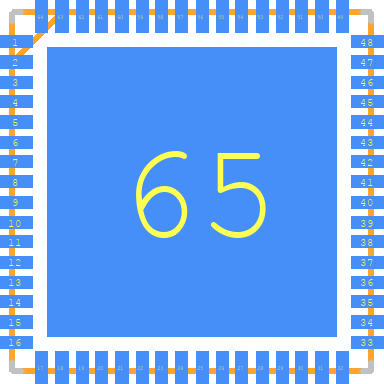

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD9222ABCPZ-40 Part Data Attributes
|
|
AD9222ABCPZ-40
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9222ABCPZ-40
Analog Devices Inc
Octal, 12-Bit, 40/50/65 MSPS Serial LVDS 1.8 V A/D Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | QFN | |
| Package Description | Hvqccn, Lcc64,.35sq,20 | |
| Pin Count | 64 | |
| Manufacturer Package Code | CP-64-6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | ||
| Converter Type | Adc, Proprietary Method | |
| JESD-30 Code | S-XQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 Mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | Serial | |
| Package Body Material | Unspecified | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 40 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Width | 9 Mm |
Alternate Parts for AD9222ABCPZ-40
This table gives cross-reference parts and alternative options found for AD9222ABCPZ-40. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9222ABCPZ-40, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9252ABCPZ-50 | Analog Devices Inc | $81.2558 | Octal, 14-Bit, 50 MSPS, Serial LVDS, 1.8 V ADC | AD9222ABCPZ-40 vs AD9252ABCPZ-50 |
| AD9222BCPZ-40 | Analog Devices Inc | Check for Price | IC 8-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZ-40 vs AD9222BCPZ-40 |
| AD9222BCPZ-50 | Analog Devices Inc | Check for Price | IC 8-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZ-40 vs AD9222BCPZ-50 |
| AD9222ABCPZRL7-50 | Analog Devices Inc | Check for Price | Octal, 12-Bit, 40/50/65 MSPS Serial LVDS 1.8 V A/D Converter | AD9222ABCPZ-40 vs AD9222ABCPZRL7-50 |
| AD9212ABCPZ-65 | Analog Devices Inc | Check for Price | Octal, 10-Bit, 40 MSPS/65 MSPS, Serial LVDS, 1.8 V ADC | AD9222ABCPZ-40 vs AD9212ABCPZ-65 |
| AD9222ABCPZ-50 | Analog Devices Inc | Check for Price | Octal, 12-Bit, 40/50/65 MSPS Serial LVDS 1.8 V A/D Converter | AD9222ABCPZ-40 vs AD9222ABCPZ-50 |
| AD9252BCPZ-50 | Analog Devices Inc | Check for Price | IC 8-CH 14-BIT FLASH METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZ-40 vs AD9252BCPZ-50 |
| AD9252ABCPZRL7-50 | Analog Devices Inc | Check for Price | Octal, 14-Bit, 50 MSPS, Serial LVDS, 1.8 V ADC | AD9222ABCPZ-40 vs AD9252ABCPZRL7-50 |
| AD9222BCPZRL7-50 | Analog Devices Inc | Check for Price | IC 8-CH 12-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, QCC64, 9 X 9 MM, ROHS COMPLIANT, MO-220VMMD-4, LFCSP-64, Analog to Digital Converter | AD9222ABCPZ-40 vs AD9222BCPZRL7-50 |
| AD9222ABCPZRL7-65 | Analog Devices Inc | Check for Price | Octal, 12-Bit, 40/50/65 MSPS Serial LVDS 1.8 V A/D Converter | AD9222ABCPZ-40 vs AD9222ABCPZRL7-65 |
AD9222ABCPZ-40 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures that the internal bias voltage is established before the analog input signal is applied.
-
To optimize the performance of the AD9222, ensure that the analog input signal is properly terminated, use a low-noise power supply, and optimize the analog input signal amplitude to maximize the dynamic range. Additionally, use a high-quality clock source and ensure that the clock signal is properly terminated.
-
The maximum allowable input signal amplitude for the AD9222 is 2Vpp differential, which corresponds to a full-scale input range of 1Vpp differential.
-
The AD9222 can be interfaced with a FPGA or ASIC using a parallel interface. Ensure that the FPGA or ASIC is configured to match the data format and clocking requirements of the AD9222. Additionally, use a high-speed interface such as LVDS or CMOS to minimize signal degradation.
-
The typical power consumption of the AD9222 is 330mW at 65 MSPS, with a 1.8V analog supply and a 3.3V digital supply.
