Part Details for AD9516-4BCPZ by Analog Devices Inc
Results Overview of AD9516-4BCPZ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9516-4BCPZ Information
AD9516-4BCPZ by Analog Devices Inc is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for AD9516-4BCPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7841
|
Newark | Ic, Clock Distributn, 3.135-3.465V/Lfcsp, Clock Ic Type:Clock Generator, Frequency:1.8Ghz, No. Of Outputs:14Outputs, Supply Voltage Min:3.135V, Supply Voltage Max:3.465V, Clock Ic Case Style:Lfcsp-Vq-Ep, No. Of Pins:64Pins Rohs Compliant: Yes |Analog Devices AD9516-4BCPZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1 |
|
$12.6400 / $21.5600 | Buy Now |
|
|
Analog Devices Inc | Clock IC with 1.8GHz on-chip Package Multiple: 1 | 274 |
|
$9.3800 / $21.5600 | Buy Now |
|
|
Bristol Electronics | 4 |
|
RFQ | ||
|
|
Rochester Electronics | 9516 Series, 10 True Output(s), 0 Inverted Output(s) RoHS: Compliant Status: Active Min Qty: 1 | 1199 |
|
$10.6400 / $13.3000 | Buy Now |
|
DISTI #
AD9516-4BCPZ
|
Richardson RFPD | LOGIC AND TIMING RoHS: Compliant Min Qty: 49 | 0 |
|
$13.2200 / $14.1300 | Buy Now |
US Tariff Estimator: AD9516-4BCPZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD9516-4BCPZ
AD9516-4BCPZ CAD Models
-

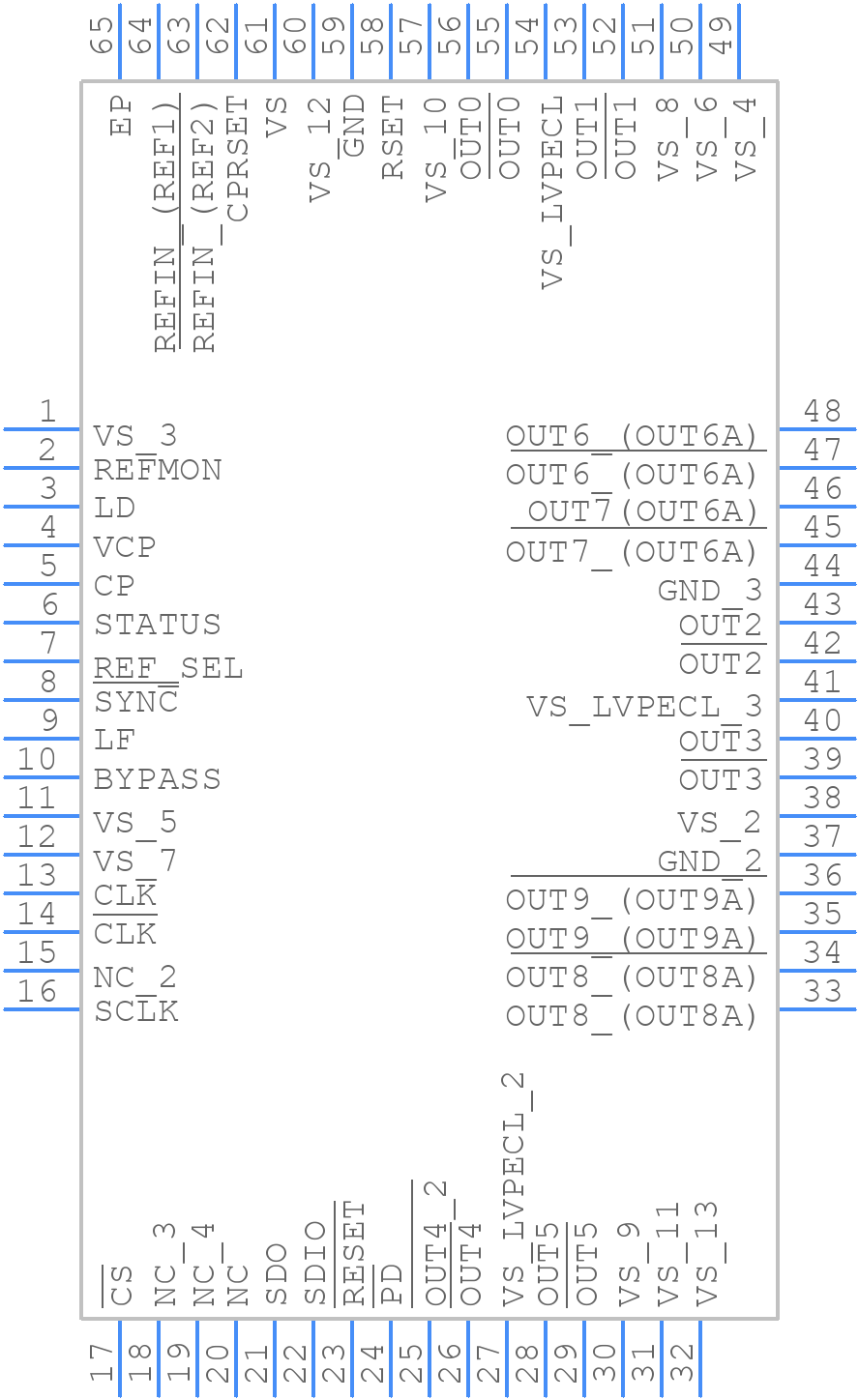

Part Symbol
-

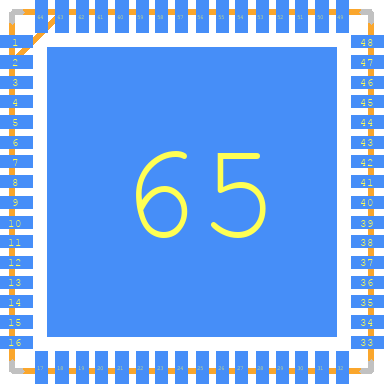

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD9516-4BCPZ Part Data Attributes
|
|
AD9516-4BCPZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9516-4BCPZ
Analog Devices Inc
14-Output Clock Generator with Integrated 1.6 GHz VCO
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | HVQCCN, LCC64,.35SQ,20 | |
| Pin Count | 64 | |
| Manufacturer Package Code | CP-64-4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Family | 9516 | |
| Input Conditioning | DIFFERENTIAL MUX | |
| JESD-30 Code | S-XQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Logic IC Type | CLOCK DRIVER/DIVIDER | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Inverted Outputs | ||
| Number of Terminals | 64 | |
| Number of True Outputs | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 1.18 ns | |
| Propagation Delay (tpd) | 2.6 ns | |
| Qualification Status | Not Qualified | |
| Same Edge Skew-Max (tskwd) | 0.675 ns | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.465 V | |
| Supply Voltage-Min (Vsup) | 3.135 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm | |
| fmax-Min | 2950 MHz |
Alternate Parts for AD9516-4BCPZ
This table gives cross-reference parts and alternative options found for AD9516-4BCPZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9516-4BCPZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9516-1BCPZ | Analog Devices Inc | $10.3315 | 14-Output Clock Generator with Integrated 2.5 GHz VCO | AD9516-4BCPZ vs AD9516-1BCPZ |
| AD9516-3BCPZ | Analog Devices Inc | $11.7884 | 14-Output Clock Generator with Integrated 2.0 GHz VCO | AD9516-4BCPZ vs AD9516-3BCPZ |
| AD9516-0BCPZ | Analog Devices Inc | $12.8992 | 14-Output Clock Generator with Integrated 2.8 GHz VCO | AD9516-4BCPZ vs AD9516-0BCPZ |
| AD9516-3BCPZ-REEL7 | Analog Devices Inc | $15.5137 | 14-Output Clock Generator with Integrated 2.0 GHz VCO | AD9516-4BCPZ vs AD9516-3BCPZ-REEL7 |
| AD9516-2BCPZ | Analog Devices Inc | Check for Price | 14-Output Clock Generator with Integrated 2.2 GHz VCO | AD9516-4BCPZ vs AD9516-2BCPZ |
AD9516-4BCPZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock input. This ensures that the internal voltage regulators are powered up correctly.
-
The loop filter design should be optimized based on the specific application requirements. A good starting point is to use the recommended values in the datasheet, and then adjust the values based on the desired phase noise and jitter performance.
-
The AD9516-4BCPZ can handle clock frequencies up to 3.2 GHz. However, the maximum frequency may be limited by the specific application and the quality of the clock input signal.
-
The output frequency of the AD9516-4BCPZ can be configured by programming the internal registers. The specific configuration will depend on the desired output frequency and the clock input frequency.
-
The typical power consumption of the AD9516-4BCPZ is around 1.2 W, but this can vary depending on the specific application and the clock frequency.
