ADA4084-1ARZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS628301ARZER | Texas Instruments | 2.25-V to 5.5-V, 1-A step-down converter with 1% accuracy in small QFN and SOT583 packages 8-WQFN-HR -40 to 125 |
Price & Stock for ADA4084-1ARZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4450
|
Newark | Op-Amp, 15.9Mhz, -40 To 125Deg C, Nsoic, No. Of Channels:1Channels, Gain Bandwidth Product:15.9Mhz, Supply Voltage Range:3V To 30V, ± 1.5V To ± 15V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:General Purpose Rohs Compliant: Yes |Analog Devices ADA4084-1ARZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.4900 / $6.0500 | Buy Now |
|
|
Analog Devices Inc | 30V RRIO LowPwr Single OpAmp Package Multiple: 98 | 56 |
|
$1.8500 / $6.0500 | Buy Now |
|
DISTI #
ADA4084-1ARZ
|
TME | IC: operational amplifier, 15.4MHz, Ch: 1, SO8, ±1.5÷15VDC,3÷30VDC Min Qty: 1 | 0 |
|
$3.3000 / $4.6200 | RFQ |
|
|
Chip Stock | OpAmpSingleLowNoiseAmplifierR-RI/O±15V/30V8-PinSOICNTube | 7020 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 1 CIRCUIT 8SOIC | 3000 |
|
$3.2727 / $4.9090 | Buy Now |
US Tariff Estimator: ADA4084-1ARZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADA4084-1ARZ
ADA4084-1ARZ CAD Models
-

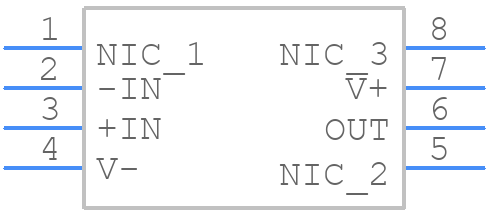

Part Symbol
-
Footprint
-

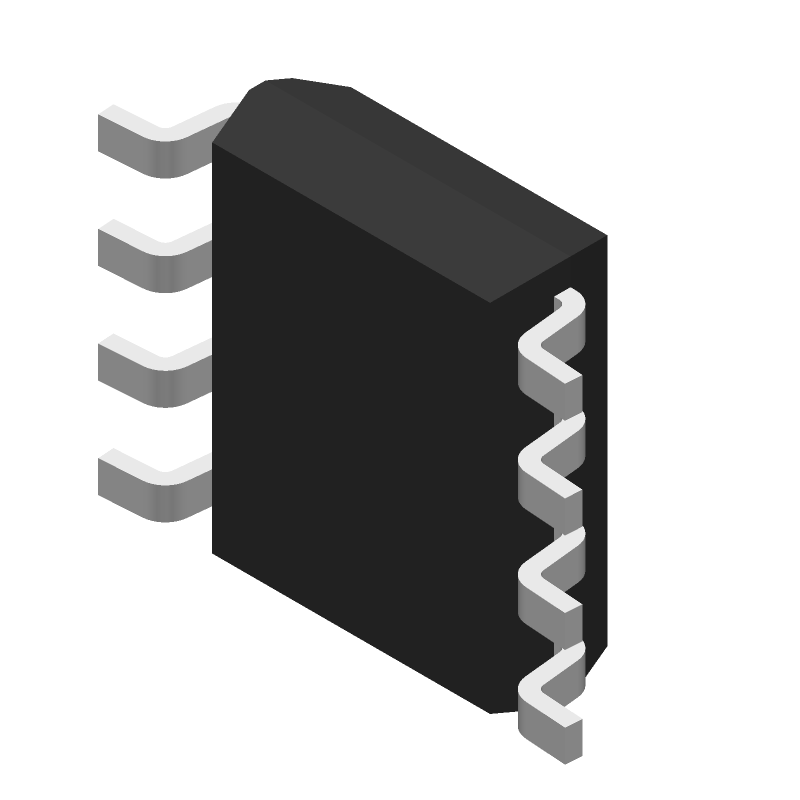

3D Model
