ADA4661-2ARMZ-RL Information
ADA4661-2ARMZ-RL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4661-2ARMZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AK2289
|
Newark | Op-Amp, 4Mhz, -40 To 125Deg C, Msop-8 Rohs Compliant: Yes |Analog Devices ADA4661-2ARMZ-RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 428 |
|
$1.9900 / $3.6500 | Buy Now |
|
|
Analog Devices Inc | 18V LowPower RRIO Precision Cm Min Qty: 3000 Package Multiple: 3000 | 9000 |
|
$1.9875 / $5.4200 | Buy Now |
|
DISTI #
ADA4661-2ARMZRL
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 3000 | 0 |
|
$2.0800 | Buy Now |
|
|
Win Source Electronics | IC CMOS 2 CIRCUIT 8MSOP | 3820 |
|
$1.7143 / $2.2143 | Buy Now |
US Tariff Estimator: ADA4661-2ARMZ-RL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADA4661-2ARMZ-RL
ADA4661-2ARMZ-RL CAD Models
-

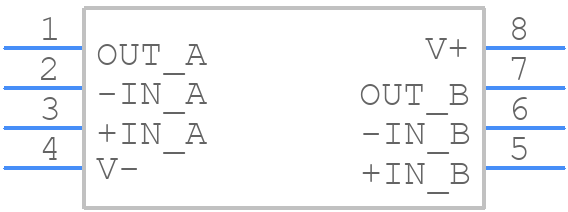

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADA4661-2ARMZ-RL Part Data Attributes
|
|
ADA4661-2ARMZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4661-2ARMZ-RL
Analog Devices Inc
18 V, Precision, 725 µA, 4 MHz CMOS RRIO Operational Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Msop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.00075 µA | |
| Bias Current-Max (IIB) @25C | 0.000015 µA | |
| Common-mode Reject Ratio-Min | 86 Db | |
| Common-mode Reject Ratio-Nom | 114 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 600 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Low-Bias | Yes | |
| Low-Offset | Yes | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Seated Height-Max | 1.1 Mm | |
| Slew Rate-Nom | 1.8 V/Us | |
| Supply Current-Max | 1.95 Ma | |
| Supply Voltage Limit-Max | 20.5 V | |
| Supply Voltage-Nom (Vsup) | 10 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 4000 | |
| Voltage Gain-Min | 1000000 | |
| Wideband | No | |
| Width | 3 Mm |
Alternate Parts for ADA4661-2ARMZ-RL
This table gives cross-reference parts and alternative options found for ADA4661-2ARMZ-RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4661-2ARMZ-RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLV9152IPWR | Texas Instruments | $0.5223 | Dual, 16-V, 4.5-MHz, low-power operational amplifier 8-TSSOP -40 to 125 | ADA4661-2ARMZ-RL vs TLV9152IPWR |
| PTLV9152QDGKRQ1 | Texas Instruments | Check for Price | AEC-Q100, 2-channel, 16-V, 4.5-MHz, RRIO, CMOS operational amplifier for cost-optimized systems 8-VSSOP -40 to 125 | ADA4661-2ARMZ-RL vs PTLV9152QDGKRQ1 |
| TLV9152QDRQ1 | Texas Instruments | Check for Price | Automotive, dual, 16-V 4.5-MHz low-power operational amplifier 8-SOIC -40 to 125 | ADA4661-2ARMZ-RL vs TLV9152QDRQ1 |
| TLV9152IDDFR | Texas Instruments | Check for Price | Dual, 16-V, 4.5-MHz, low-power operational amplifier 8-SOT-23-THIN -40 to 125 | ADA4661-2ARMZ-RL vs TLV9152IDDFR |
| OP279GRU-REEL | Analog Devices Inc | Check for Price | IC DUAL OP-AMP, 4000 uV OFFSET-MAX, 5 MHz BAND WIDTH, PDSO8, TSSOP-8, Operational Amplifier | ADA4661-2ARMZ-RL vs OP279GRU-REEL |
| OP279GRUZ-REEL | Analog Devices Inc | Check for Price | Rail-to-Rail High Output Current Operational Amplifier | ADA4661-2ARMZ-RL vs OP279GRUZ-REEL |
| PTLV9152IDR | Texas Instruments | Check for Price | Dual 4.5MHz, 16-V rail-to-rail input/output, low-offset voltage, low-noise op amp 8-SOIC -40 to 125 | ADA4661-2ARMZ-RL vs PTLV9152IDR |
| TLV9152IDSGR | Texas Instruments | Check for Price | Dual, 16-V, 4.5-MHz, low-power operational amplifier 8-WSON -40 to 125 | ADA4661-2ARMZ-RL vs TLV9152IDSGR |
| PTLV9152IPWR | Texas Instruments | Check for Price | Dual 4.5MHz, 16-V rail-to-rail input/output, low-offset voltage, low-noise op amp 8-TSSOP -40 to 125 | ADA4661-2ARMZ-RL vs PTLV9152IPWR |
| TLV9152QDGKRQ1 | Texas Instruments | Check for Price | Automotive, dual, 16-V 4.5-MHz low-power operational amplifier 8-VSSOP -40 to 125 | ADA4661-2ARMZ-RL vs TLV9152QDGKRQ1 |
ADA4661-2ARMZ-RL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4661-2ARMZ-RL involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended compensation network, use a low-ESR capacitor for decoupling, and keep the input and output impedance matched. Also, avoid using long input traces and minimize the distance between the device and the decoupling capacitors.
-
The maximum power dissipation of the ADA4661-2ARMZ-RL is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and thermal management. It's essential to ensure proper thermal management to prevent overheating.
-
The ADA4661-2ARMZ-RL is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is operated within the recommended temperature range.
-
To troubleshoot oscillations or instability issues, check the PCB layout, decoupling, and compensation network. Ensure that the input and output impedance are matched, and the device is operated within the recommended specifications. Also, verify that the power supply is clean and well-regulated.
