ADA4895-2ARMZ-R7 Information
ADA4895-2ARMZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4895-2ARMZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK4533
|
Newark | Op-Amp, Msop-10, -40 To 125Deg C Rohs Compliant: Yes |Analog Devices ADA4895-2ARMZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 697 |
|
$5.2000 / $10.7900 | Buy Now |
|
|
Analog Devices Inc | Decomp L/N , Low Power R/R Op Min Qty: 1 Package Multiple: 1000 | 95 |
|
$5.2000 / $10.9900 | Buy Now |
|
|
Chip Stock | ROHS3CompliantEAR99ADA4895MatteTin(Sn)opampamplifiercircuit3mm6muA3V-125dB | 4370 |
|
RFQ | |
|
|
Win Source Electronics | Low Power, 1 nV/√Hz, G ≥ 10 Stable, Rail-to-Rail Output Amplifier | IC OPAMP GP 2 CIRCUIT 10MSOP | 2870 |
|
$6.3636 / $9.5454 | Buy Now |
US Tariff Estimator: ADA4895-2ARMZ-R7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADA4895-2ARMZ-R7
ADA4895-2ARMZ-R7 CAD Models
-

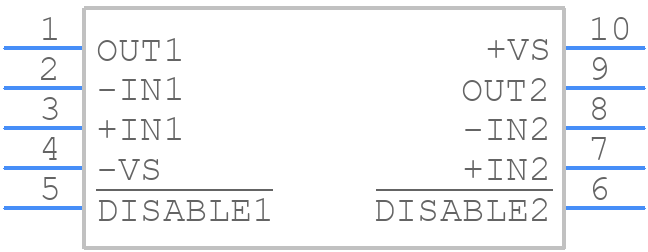

Part Symbol
-
Footprint
-

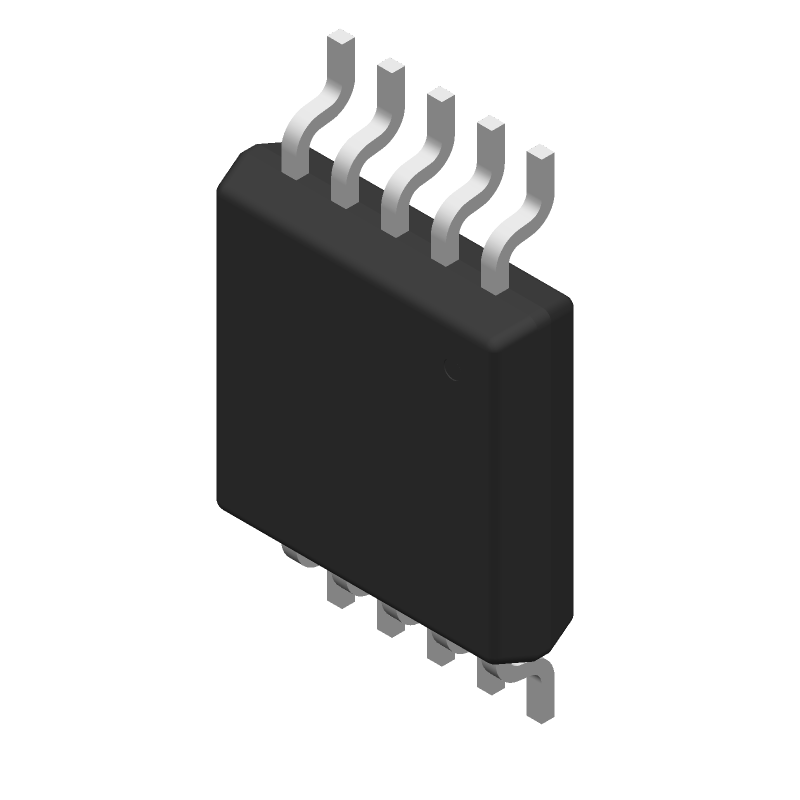

3D Model
