Part Details for ADA4899-1YRDZ by Analog Devices Inc
Results Overview of ADA4899-1YRDZ by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADA4899-1YRDZ Information
ADA4899-1YRDZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4899-1YRDZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4575
|
Newark | Op-Amp, 600Mhz, -40 To 125Deg C, No. Of Channels:1Channels, Gain Bandwidth Product:600Mhz, Supply Voltage Range:4.5V To 12V, Ic Case/Package:Nsoic-Ep, No. Of Pins:8Pins, Amplifier Type:Voltage Feedback, Rail To Rail:- Rohs Compliant: Yes |Analog Devices ADA4899-1YRDZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 344 |
|
$3.1400 / $7.3800 | Buy Now |
|
|
Analog Devices Inc | Ultra Low Noise and Distortion Package Multiple: 98 | 2571 |
|
$2.2500 / $7.3800 | Buy Now |
|
|
Bristol Electronics | 90 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 1 | 5 |
|
$6.0480 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 230uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 199 |
|
$2.5600 / $3.2000 | Buy Now |
|
DISTI #
ADA4899-1YRDZ
|
TME | IC: operational amplifier, 600MHz, Ch: 1, SO8-EP, tube Min Qty: 1 | 0 |
|
$3.7500 / $4.7300 | RFQ |
|
DISTI #
ADA4899-1YRDZ
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 196 | 0 |
|
$3.1800 / $3.3000 | Buy Now |
|
|
Chip Stock | OpAmpSingleHighSpeedAmplifier±6V/12V8-PinSOICNEPTube | 5500 |
|
RFQ | |
|
|
Win Source Electronics | Unity Gain Stable, Ultralow Distortion, 1 nV/ Hz Voltage Noise, High Speed Op Amp | IC OPAMP VFB 1 CIRCUIT 8SOIC | 4000 |
|
$3.2726 / $4.2270 | Buy Now |
US Tariff Estimator: ADA4899-1YRDZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADA4899-1YRDZ
ADA4899-1YRDZ CAD Models
-

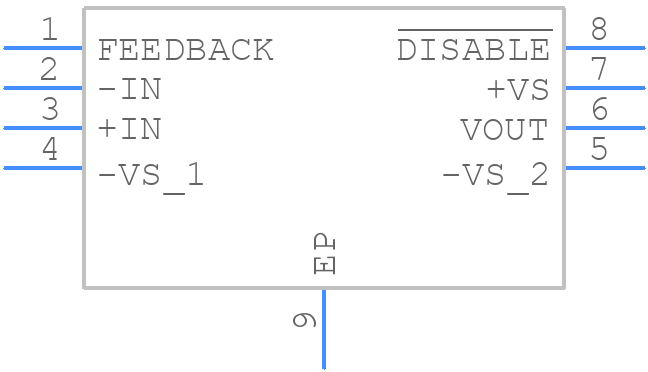

Part Symbol
-

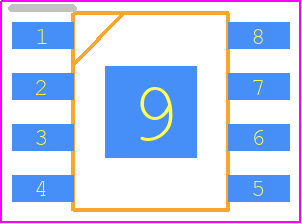

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADA4899-1YRDZ Part Data Attributes
|
|
ADA4899-1YRDZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4899-1YRDZ
Analog Devices Inc
Unity-Gain Stable, Ultralow Distortion, 1 nV/√Hz Voltage Noise, High Speed Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Soic-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RD-8-1 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 12 µA | |
| Bandwidth (3dB)-Nom | 600 Mhz | |
| Bias Current-Max (IIB) @25C | 2 µA | |
| Common-mode Reject Ratio-Min | 98 Db | |
| Common-mode Reject Ratio-Nom | 130 Db | |
| Frequency Compensation | No | |
| Input Offset Current-Max (IIO) | 0.7 µA | |
| Input Offset Voltage-Max | 230 µV | |
| JESD-30 Code | R-XDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Low-Bias | No | |
| Low-Offset | Yes | |
| Micropower | No | |
| Moisture Sensitivity Level | 3 | |
| Neg Supply Voltage Limit-Max | -5 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Nom | 310 V/Us | |
| Supply Current-Max | 16.2 Ma | |
| Supply Voltage Limit-Max | 12 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Unity Gain BW-Nom | 600000 | |
| Voltage Gain-Min | 82 | |
| Wideband | Yes | |
| Width | 3.9 Mm |
Alternate Parts for ADA4899-1YRDZ
This table gives cross-reference parts and alternative options found for ADA4899-1YRDZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4899-1YRDZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADA4899-1YRDZ-R7 | Rochester Electronics LLC | Check for Price | OP-AMP, 230 uV OFFSET-MAX, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 | ADA4899-1YRDZ vs ADA4899-1YRDZ-R7 |
ADA4899-1YRDZ Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the ADA4899-1YRDZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in high-gain configurations, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and consider adding a small capacitor (e.g., 10pF to 100pF) in parallel with the feedback resistor to improve phase margin.
-
To minimize noise and interference, it's recommended to keep the input and output traces short and away from each other, use a ground plane, and avoid running sensitive traces near the op-amp's power pins. Additionally, decoupling capacitors should be placed as close to the op-amp's power pins as possible.
-
Yes, the ADA4899-1YRDZ can be used in a single-supply configuration. However, it's essential to ensure that the input common-mode voltage range is within the specified limits, and the output voltage swing is sufficient for the application.
-
To ensure ESD protection, it's recommended to use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device at the input pins of the ADA4899-1YRDZ. Additionally, follow proper handling and storage procedures to prevent ESD damage.
