Part Details for ADE7753ARSZ by Analog Devices Inc
Results Overview of ADE7753ARSZ by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADE7753ARSZ Information
ADE7753ARSZ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADE7753ARSZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4614
|
Newark | Energy Metering Ic, 14Khz, Ssop-20, Ic Function:Single-Phase Multifunction Metering Ic, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Ic Package Type:Ssop, No. Of Pins:20Pins, Operating Temperature Min:-40°C, Product Range:- Rohs Compliant: Yes |Analog Devices ADE7753ARSZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 128 |
|
$3.4700 / $7.9800 | Buy Now |
|
DISTI #
ADE7753ARSZ
|
TME | IC: electric energy meter, CF pulses,serial,SPI, SSOP20, 25mW Min Qty: 1 | 13 |
|
$8.4300 / $11.1200 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
ADE7753ARSZ
|
Richardson RFPD | LINEAR ICS, OTHER RoHS: Compliant Min Qty: 1 | 4 |
|
$3.6700 / $4.0500 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 6825 |
|
RFQ | |
|
|
Chip Stock | SinglePhaseMultifunctionEnergyMeteringICwithdi/dtInput(Serial-PortInterface) | 8500 |
|
RFQ | |
|
|
Chip-Germany GmbH | 532 |
|
RFQ |
US Tariff Estimator: ADE7753ARSZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADE7753ARSZ
ADE7753ARSZ CAD Models
-

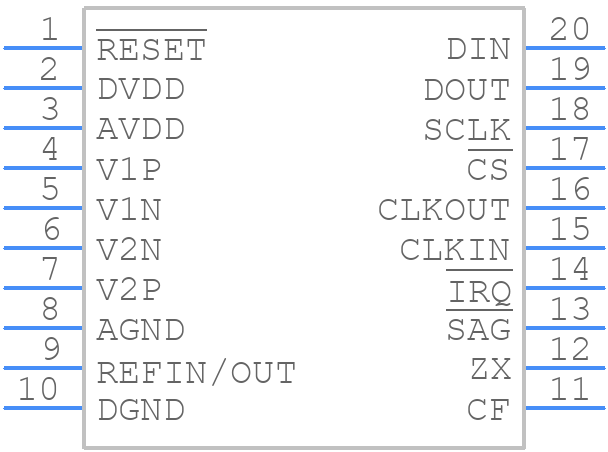

Part Symbol
-

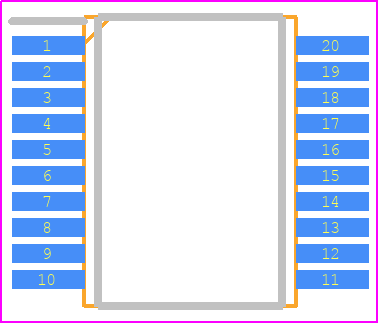

Footprint
-

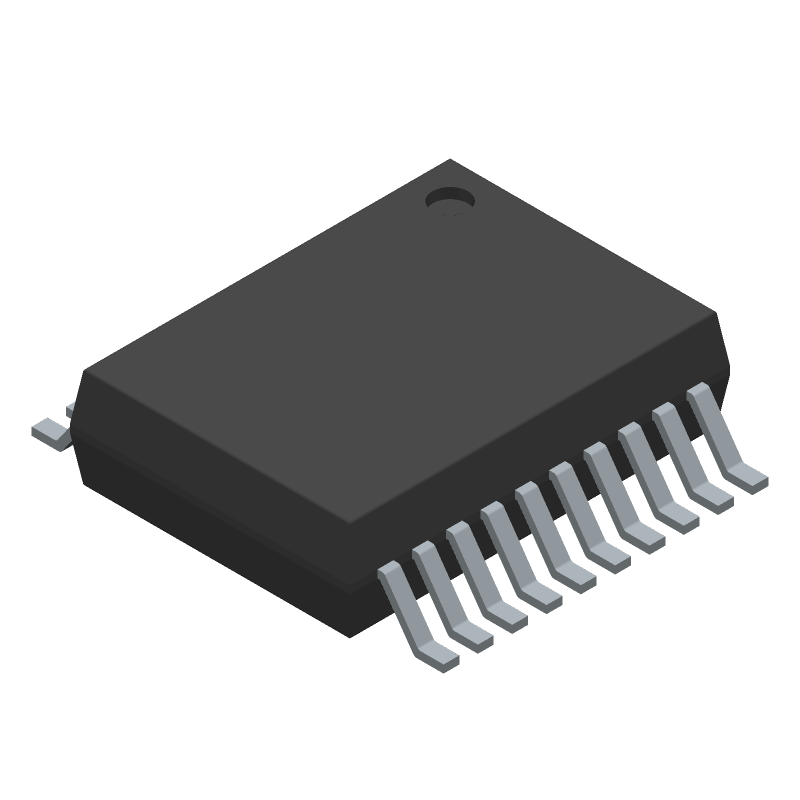

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADE7753ARSZ Part Data Attributes
|
|
ADE7753ARSZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADE7753ARSZ
Analog Devices Inc
Single Phase Multifunction Energy Metering IC with di/dt Input (Serial-Port Interface)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SSOP | |
| Package Description | Ssop, Ssop20,.3 | |
| Pin Count | 20 | |
| Manufacturer Package Code | RS-20 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Analog Circuit | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 Mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Width | 5.3 Mm |
Alternate Parts for ADE7753ARSZ
This table gives cross-reference parts and alternative options found for ADE7753ARSZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADE7753ARSZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADE7753ARSZRL | Analog Devices Inc | $3.8488 | Single Phase Multifunction Energy Metering IC with di/dt Input (Serial-Port Interface) | ADE7753ARSZ vs ADE7753ARSZRL |
| ADE7753ARS | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDSO20, MO-150AE, SSOP-20, Analog IC:Other | ADE7753ARSZ vs ADE7753ARS |
| ADE7753ARSRL | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDSO20, MO-150AE, SSOP-20, Analog IC:Other | ADE7753ARSZ vs ADE7753ARSRL |
ADE7753ARSZ Frequently Asked Questions (FAQ)
-
The ADE7753ARSZ is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure accurate measurements. Place the device close to the current sensor, use a solid ground plane, and keep analog and digital traces separate. Also, ensure that the device is decoupled properly with a 0.1uF capacitor between VCC and GND.
-
Calibration involves adjusting the gain and offset of the device to match the specific current sensor and system requirements. Use the CAL pin to adjust the gain, and the OSC pin to adjust the offset. Refer to the application note AN-639 for a detailed calibration procedure.
-
The ADE7753ARSZ communicates through a serial interface (SPI or UART). Use a microcontroller with a compatible serial interface, and ensure that the clock speed and data format match the device's requirements. Also, use a level shifter if the microcontroller's voltage level is different from the ADE7753ARSZ's voltage level.
-
Use proper shielding, grounding, and filtering to minimize noise and EMI. Place the device in a shielded area, use a common-mode choke, and add EMI filters to the power supply and signal lines. Also, ensure that the PCB layout is optimized for high-frequency signals.
-
The ADE7753ARSZ can measure currents up to 100A, but the maximum current depends on the specific current sensor used. Ensure that the current sensor is rated for the maximum expected current and that the ADE7753ARSZ is configured correctly to handle the expected current range.
