Part Details for ADG201AKRZ-REEL7 by Analog Devices Inc
Results Overview of ADG201AKRZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
ADG201AKRZ-REEL7 Information
ADG201AKRZ-REEL7 by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG201AKRZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4771
|
Newark | Analogue Sw, 4Ch, Spst-No, Soic-16, Ic Function:Analog Switch, Power Supply Type:Dual Supply, Supply Voltage Range:± 15V, Ic Case/Package:Soic, No. Of Pins:16Pins, No. Of Channels:4Channels, On Resistance Typ:60Ohm, Product Range:-Rohs Compliant: Yes |Analog Devices ADG201AKRZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 530 |
|
$3.6900 / $8.5200 | Buy Now |
|
|
Analog Devices Inc | QUAD SPST SWITCH IC Min Qty: 1 Package Multiple: 1000 | 91 |
|
$3.6875 / $8.5200 | Buy Now |
|
|
Bristol Electronics | 11 |
|
RFQ | ||
|
|
Rochester Electronics | SPST, 1 Func, 1 Channel, CMOS, PDSO16 RoHS: Compliant Status: Active Min Qty: 1 | 6 |
|
$3.1000 / $3.8800 | Buy Now |
|
|
Chip Stock | 490ΩSPST(SPST)-NormallyclosedSOIC-16AnalogSwitches/MultiplexersROHS | 4076 |
|
RFQ | |
|
|
Win Source Electronics | IC SWITCH QUAD SPST 16SOIC | 3937 |
|
$2.0895 / $3.1342 | Buy Now |
US Tariff Estimator: ADG201AKRZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADG201AKRZ-REEL7
ADG201AKRZ-REEL7 CAD Models
-

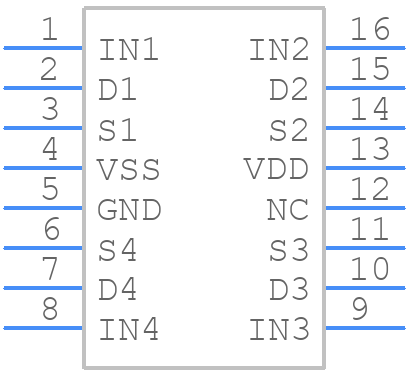

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADG201AKRZ-REEL7 Part Data Attributes
|
|
ADG201AKRZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG201AKRZ-REEL7
Analog Devices Inc
60 Ohm, Quad SPST Switch
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | R-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Spst | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 9.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Normal Position | Nc | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 80 Db | |
| On-state Resistance Match-Nom | 5 Ω | |
| On-state Resistance-Max (Ron) | 90 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | Separate Output | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | Yes | |
| Switch-off Time-Max | 250 Ns | |
| Switch-on Time-Max | 300 Ns | |
| Switching | Break-Before-Make | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for ADG201AKRZ-REEL7
This table gives cross-reference parts and alternative options found for ADG201AKRZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG201AKRZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG201AKRZ-REEL | Analog Devices Inc | $4.1739 | 60 Ohm, Quad SPST Switch | ADG201AKRZ-REEL7 vs ADG201AKRZ-REEL |
| ADG201AKR-REEL7 | Analog Devices Inc | Check for Price | 60 Ohm, Quad SPST Switch | ADG201AKRZ-REEL7 vs ADG201AKR-REEL7 |
| ADG201AKR-REEL | Analog Devices Inc | Check for Price | 60 Ohm, Quad SPST Switch | ADG201AKRZ-REEL7 vs ADG201AKR-REEL |
| ADG201AKR | Rochester Electronics LLC | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, SOIC-16 | ADG201AKRZ-REEL7 vs ADG201AKR |
| ADG201AKRZ | Rochester Electronics LLC | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, SOIC-16 | ADG201AKRZ-REEL7 vs ADG201AKRZ |
ADG201AKRZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADG201AKRZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
-
The ADG201AKRZ-REEL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging.
-
The ADG201AKRZ-REEL7 is not specifically designed for radiation-hardened applications. If radiation hardness is required, it's recommended to consult with Analog Devices Inc. or a qualified radiation effects engineer to determine the suitability of the device for the specific application.
-
The recommended soldering and rework procedures for the ADG201AKRZ-REEL7 involve using a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 180°C to 190°C. It's also recommended to use a rework station with a controlled temperature profile and a gentle reflow process to avoid damaging the device.
