Part Details for ADG436BRZ-REEL by Analog Devices Inc
Results Overview of ADG436BRZ-REEL by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Communication and Networking
Automotive
ADG436BRZ-REEL Information
ADG436BRZ-REEL by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| HSCHD02AR0001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Black housing | |
| HSDNBSPPCB14WBA | Amphenol Communications Solutions | HSD Right plug,Tape and Reel,Cream white housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for ADG436BRZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4822
|
Newark | Analogue Sw, 2Ch, Spdt, Soic-16, Ic Function:Analog Switch, Power Supply Type:Single Supply, Supply Voltage Range:± 3V To ± 20V, 3V To 30V, Ic Case/Package:Soic, No. Of Pins:16Pins, No. Of Channels:2Channels, Interfaces:Parallel Rohs Compliant: Yes |Analog Devices ADG436BRZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1465 |
|
$4.3300 | Buy Now |
|
|
Analog Devices Inc | DUAL SPDT SWITCH I.C. Min Qty: 1 Package Multiple: 2500 | 6244 |
|
$3.4800 / $10.2100 | Buy Now |
|
|
Bristol Electronics | 14 |
|
RFQ | ||
|
|
Win Source Electronics | IC SWITCH DUAL SPDT 16SOIC | 2650 |
|
$10.2858 / $13.2857 | Buy Now |
US Tariff Estimator: ADG436BRZ-REEL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADG436BRZ-REEL
ADG436BRZ-REEL CAD Models
-

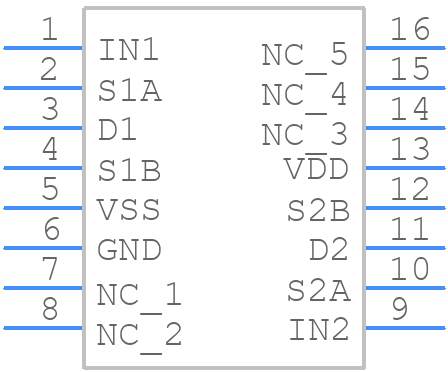

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADG436BRZ-REEL Part Data Attributes
|
|
ADG436BRZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG436BRZ-REEL
Analog Devices Inc
LC2MOS ±15 V Dual SPDT Switch
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | R-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPDT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Channels | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 72 dB | |
| On-state Resistance Match-Nom | 1 Ω | |
| On-state Resistance-Max (Ron) | 25 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 120 ns | |
| Switch-on Time-Max | 125 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for ADG436BRZ-REEL
This table gives cross-reference parts and alternative options found for ADG436BRZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG436BRZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG436BR-REEL | Rochester Electronics LLC | Check for Price | DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDSO16, 0.150 INCH, MS-012AC, SOIC-16 | ADG436BRZ-REEL vs ADG436BR-REEL |
ADG436BRZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADG436BRZ-REEL involves placing the device close to the analog signal sources, using short and wide traces, and avoiding vias and right-angle bends. Additionally, a solid ground plane and a separate analog ground plane can help reduce noise and parasitic effects.
-
To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 10uF) between VDD and GND, and a smaller capacitor (e.g., 100nF) between VDD and GND for high-frequency decoupling. Also, use a separate analog power supply or a well-regulated power supply to minimize noise and ripple.
-
The ADG436BRZ-REEL can operate up to 100MHz, but the actual frequency limit depends on the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and application notes for more information.
-
To prevent ESD damage, handle the ADG436BRZ-REEL by the body or pins, avoid touching the pins, and use an anti-static wrist strap or mat. Also, ensure the PCB and components are properly grounded during assembly and testing.
-
The ADG436BRZ-REEL has a maximum junction temperature of 150°C. To manage thermal dissipation, use a heat sink or thermal pad, ensure good airflow, and avoid blocking airflow around the device. Also, consider using a thermal interface material (TIM) to improve heat transfer.
