ADG884BCBZ-REEL7 Information
ADG884BCBZ-REEL7 by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG884BCBZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK8644
|
Newark | Analogue Switch, 2-Channel, Spdt, Wlcsp Rohs Compliant: Yes |Analog Devices ADG884BCBZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2900 |
|
$1.6000 / $4.6300 | Buy Now |
|
|
Analog Devices Inc | DUAL 2:1 MUX. IC. Min Qty: 1 Package Multiple: 3000 | 1293 |
|
$1.6000 / $4.6300 | Buy Now |
|
|
Win Source Electronics | IC SWITCH DUAL SPDT 10WLCSP | 56970 |
|
$1.3715 / $1.7714 | Buy Now |
US Tariff Estimator: ADG884BCBZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADG884BCBZ-REEL7
ADG884BCBZ-REEL7 CAD Models
-

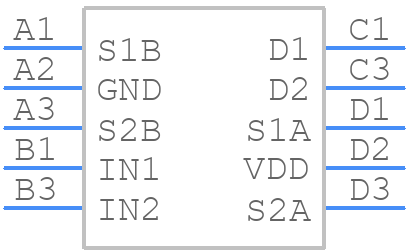

Part Symbol
-
Footprint
-

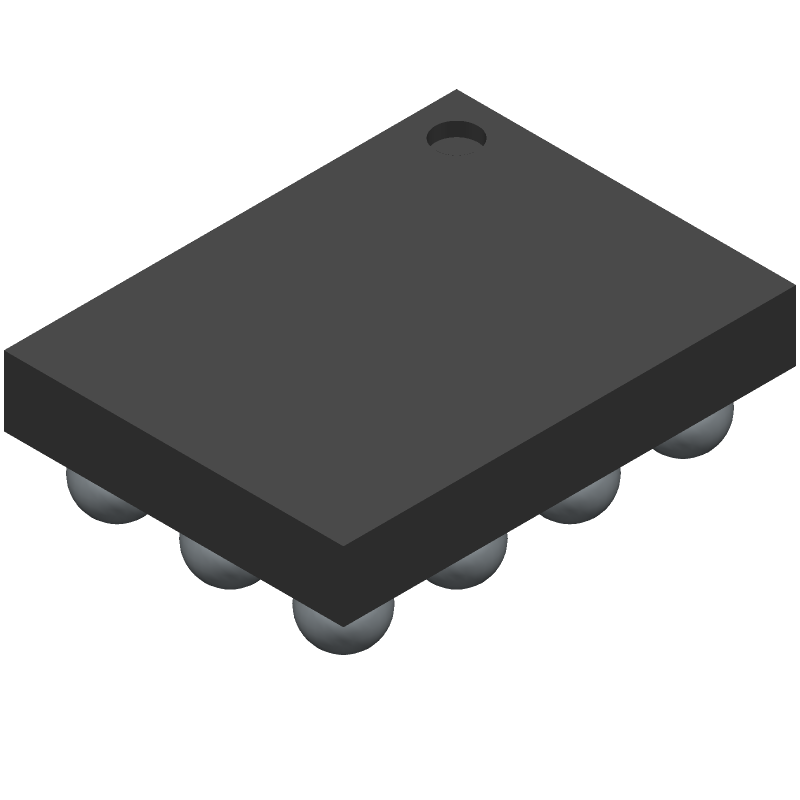

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADG884BCBZ-REEL7 Part Data Attributes
|
|
ADG884BCBZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG884BCBZ-REEL7
Analog Devices Inc
0.5 Ω CMOS Dual 2:1 MUX/SPDT Audio Switch
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | BGA | |
| Package Description | Vfbga, Bga10,3x4,20 | |
| Pin Count | 10 | |
| Manufacturer Package Code | CB-10-1 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Audio/Video Switch | |
| JESD-30 Code | R-XBGA-B10 | |
| JESD-609 Code | e1 | |
| Length | 2 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 10 | |
| Off-state Isolation-Nom | 60 Db | |
| On-state Resistance Match-Nom | 0.02 Ω | |
| On-state Resistance-Max (Ron) | 0.5 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | Separate Output | |
| Package Body Material | Unspecified | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA10,3X4,20 | |
| Package Shape | Rectangular | |
| Package Style | Grid Array, Very Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.63 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 2.7 V | |
| Surface Mount | Yes | |
| Switch-off Time-Max | 19 Ns | |
| Switch-on Time-Max | 56 Ns | |
| Switching | Break-Before-Make | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.5 Mm |
