ADM3232EARNZ Information
ADM3232EARNZ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADM3232EARNZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADM3232EARNZ
|
Richardson RFPD | MULTI-FUNCTION RECEIVER IC RoHS: Compliant Min Qty: 1 | 0 |
|
$1.7400 / $1.9200 | Buy Now |
|
|
Chip Stock | ±15kVESDProtected,3.3V,RS-232LineDriver/Receiver | 19390 |
|
RFQ | |
|
|
Component Electronics, Inc | SMT TUBE | 6 |
|
$3.0000 / $4.6200 | Buy Now |
|
|
Win Source Electronics | IC RCVR/LINEDRIVER RS232 16-SOIC | 15000 |
|
$1.0286 / $1.3285 | Buy Now |
US Tariff Estimator: ADM3232EARNZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADM3232EARNZ
ADM3232EARNZ CAD Models
-

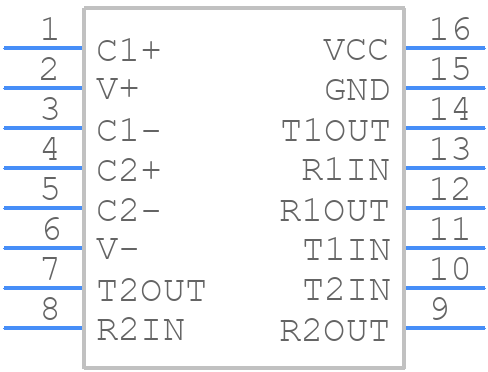

Part Symbol
-
