Part Details for ADM809-5LARTZ-RL7 by Analog Devices Inc
Results Overview of ADM809-5LARTZ-RL7 by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Automotive
Robotics and Drones
ADM809-5LARTZ-RL7 Information
ADM809-5LARTZ-RL7 by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADM809-5LARTZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8597
|
Newark | Mp Supervisor, Sot-23-3, 150Deg C, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:4.63V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices ADM809-5LARTZ-RL7 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1448 |
|
$3.6400 | Buy Now |
|
|
Analog Devices Inc | RESET GENERATOR I.C. Min Qty: 3000 Package Multiple: 3000 | 3000 |
|
$0.8500 / $3.6400 | Buy Now |
|
|
Rochester Electronics | Voltage Supervisor/Reset IC, Fixed, 1 Channel, PDSO3 RoHS: Compliant Status: Active Min Qty: 1 | 10668 |
|
$0.9486 / $1.5300 | Buy Now |
|
DISTI #
ADM809-5LARTRL7
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 3000 | 0 |
|
$1.1700 | Buy Now |
US Tariff Estimator: ADM809-5LARTZ-RL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADM809-5LARTZ-RL7
ADM809-5LARTZ-RL7 CAD Models
-

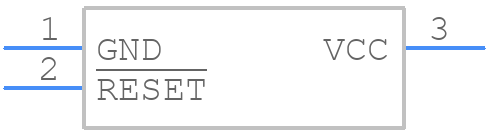

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADM809-5LARTZ-RL7 Part Data Attributes
|
|
ADM809-5LARTZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM809-5LARTZ-RL7
Analog Devices Inc
Microprocessor Supervisory Circuit in 3-Lead SOT-23 & SC70, Active-Low Push-Pull Output
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOT-23 | |
| Package Description | TSSOP, TO-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | RT-3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.3 mm |
Alternate Parts for ADM809-5LARTZ-RL7
This table gives cross-reference parts and alternative options found for ADM809-5LARTZ-RL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM809-5LARTZ-RL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM809-5LART-REEL-7 | Analog Devices Inc | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, TO-236AB, SOT-23, 3 PIN | ADM809-5LARTZ-RL7 vs ADM809-5LART-REEL-7 |
| ADM809-5LART-REEL | Analog Devices Inc | Check for Price | Microprocessor Supervisory Circuit in 3-Lead SOT-23 & SC70, Active-Low Push-Pull Output | ADM809-5LARTZ-RL7 vs ADM809-5LART-REEL |
ADM809-5LARTZ-RL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM809-5LARTZ-RL7 involves keeping the input and output pins separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. It's also recommended to use a bypass capacitor between the VCC and GND pins to filter out high-frequency noise.
-
To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. This typically involves applying power to the VCC pin before the input signal, and removing power from the VCC pin after the input signal has been removed.
-
The ADM809-5LARTZ-RL7 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
-
Yes, the ADM809-5LARTZ-RL7 is designed to meet the requirements of high-reliability applications, including automotive and industrial systems. It has a high MTBF (mean time between failures) rating and is built with high-quality materials and manufacturing processes to ensure long-term reliability.
-
To troubleshoot issues with the ADM809-5LARTZ-RL7, start by checking the power supply and input signal connections, and verifying that the device is properly powered on and off. Use an oscilloscope to check the output signal and look for signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance, or contact Analog Devices Inc technical support for assistance.
