Part Details for ADM809SARTZ-REEL7 by Analog Devices Inc
Results Overview of ADM809SARTZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (8 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Automotive
Robotics and Drones
ADM809SARTZ-REEL7 Information
ADM809SARTZ-REEL7 by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADM809SARTZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5330
|
Newark | Mp Supervisor, Sot-23-3, 125Deg C, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:2.93V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices ADM809SARTZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4828 |
|
$1.1000 / $2.9900 | Buy Now |
|
|
Analog Devices Inc | RESET GENERATORS I.C. Min Qty: 3000 Package Multiple: 3000 | 6000 |
|
$1.0250 / $3.3700 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 2599 |
|
$0.8078 / $2.4480 | Buy Now |
|
DISTI #
ADM809SARTZ-REEL7
|
TME | IC: supervisor circuit, power on reset monitor (PoR), 1÷5.5VDC Min Qty: 1 | 0 |
|
$1.2200 / $1.7000 | RFQ |
|
|
ComSIT USA | MICROPROCESSOR SUPERVISORY CIRCUIT IN 3-LEAD SOT-23 Power Supply Support Circuit, Fixed, 1 Channel, +2.93V, CMOS, PDSO3 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
ADM809SARTZ-R7
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 3000 | 0 |
|
$1.0700 | Buy Now |
|
|
Chip Stock | MicroprocessorSupervisoryCircuitin3-LeadSOT-23&, SC70,Active-LowPush-PullOutput | 110720 |
|
RFQ | |
|
|
Win Source Electronics | Processor Supervisor 2.93V 1 Active Low/Push-Pull Automotive 3-Pin SOT-23 T/R / IC SUPERVSR PUSHPULL 2.93V SOT23 | 101460 |
|
$0.5143 / $0.6642 | Buy Now |
US Tariff Estimator: ADM809SARTZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADM809SARTZ-REEL7
ADM809SARTZ-REEL7 CAD Models
-

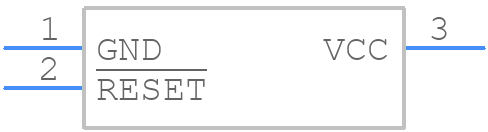

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADM809SARTZ-REEL7 Part Data Attributes
|
|
ADM809SARTZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM809SARTZ-REEL7
Analog Devices Inc
Microprocessor Supervisory Circuit in 3-Lead SOT-23 & SC70, Active-Low Push-Pull Output
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | Tssop, To-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | RT-3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Voltage Supervisor/Reset Ic | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 Mm | |
| Supply Current-Max (Isup) | 0.06 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Threshold Voltage-Nom | +2.93v | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 Mm |
Alternate Parts for ADM809SARTZ-REEL7
This table gives cross-reference parts and alternative options found for ADM809SARTZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM809SARTZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| APX809S-29SA-7 | Diodes Incorporated | $0.1634 | Power Supply Support Circuit, Fixed, 1 Channel, PDSO3, SOT-23, 3 PIN | ADM809SARTZ-REEL7 vs APX809S-29SA-7 |
| MAX809STRG | onsemi | $0.1707 | Voltage Supervisor, Very Low Supply Current, 3-Pin Microprocessor, Reset Monitor 2.93 V, 140 ms minimum delay, SOT-23 (TO-236) 3 LEAD, 3000-REEL | ADM809SARTZ-REEL7 vs MAX809STRG |
| AZ809NSTR | Diodes-BCD | Check for Price | Power Management Circuit | ADM809SARTZ-REEL7 vs AZ809NSTR |
| CAT809STBI-T10 | onsemi | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, GREEN, TO-236, SOT-23, 3 PIN | ADM809SARTZ-REEL7 vs CAT809STBI-T10 |
| ADM809SART-REEL7 | Analog Devices Inc | Check for Price | Microprocessor Supervisory Circuit in 3-Lead SOT-23 & SC70, Active-Low Push-Pull Output | ADM809SARTZ-REEL7 vs ADM809SART-REEL7 |
| NCV809SN293D1T1G | onsemi | Check for Price | Voltage Supervisor, Very Low Supply Current, 3-Pin Microprocessor, Reset Monitor AUTO 2.93V VTH UP RESET, SOT-23 (TO-236) 3 LEAD, 3000-REEL, Automotive Qualified | ADM809SARTZ-REEL7 vs NCV809SN293D1T1G |
| CAT809STBI-GT10 | onsemi | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, GREEN, TO-236, SOT-23, 3 PIN | ADM809SARTZ-REEL7 vs CAT809STBI-GT10 |
| MAX809SN293T1 | onsemi | Check for Price | MAX809SN293T1 | ADM809SARTZ-REEL7 vs MAX809SN293T1 |
ADM809SARTZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM809SARTZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and consider adding a 1uF capacitor between the VCC and GND pins. Use a low-ESR capacitor for the 10uF decoupling capacitor.
-
The ADM809SARTZ is rated for operation from -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
-
The ADM809SARTZ is a commercial-grade device, not specifically designed for high-reliability or safety-critical applications. For such applications, consider using a device with a higher reliability rating, such as a device with a higher temperature rating or a device specifically designed for high-reliability applications.
-
To troubleshoot issues with the ADM809SARTZ, start by verifying the power supply and decoupling. Check for proper PCB layout and routing. Use an oscilloscope to verify the input and output signals. Consult the datasheet and application notes for guidance on troubleshooting common issues.
