Part Details for ADM809TARTZ-REEL7 by Analog Devices Inc
Results Overview of ADM809TARTZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (6 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Automotive
Robotics and Drones
ADM809TARTZ-REEL7 Information
ADM809TARTZ-REEL7 by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADM809TARTZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5331
|
Newark | Mp Supervisor, Sot-23-3, 125Deg C, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:3.08V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices ADM809TARTZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6311 |
|
$0.8090 | Buy Now |
|
|
Analog Devices Inc | RESET GENERATORS I.C. Min Qty: 1 Package Multiple: 3000 | 1332 |
|
$1.0250 / $3.3700 | Buy Now |
|
|
Bristol Electronics | 1820 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 25 |
|
$1.6875 / $2.2500 | Buy Now |
|
|
Rochester Electronics | Voltage Supervisor/Reset IC, Fixed, 1 Channel, +3.08V, CMOS, PDSO3 RoHS: Compliant Status: Active Min Qty: 1 | 41330 |
|
$0.8618 / $1.3900 | Buy Now |
|
|
Ameya Holding Limited | ADM809TARTZ-REEL7 处理器监控器, 2.5 V, 3 V, 3.3 V, 5 V监控电压, 多种输出驱动, 3针 SOT-23封装 | 5771 |
|
RFQ | |
|
|
Chip Stock | ProcessorSupervisor3.08V1ActiveLow/Push-PullAutomotive3-PinSOT-23T/R | 6930 |
|
RFQ | |
|
|
Win Source Electronics | IC SUPERVSR PUSHPULL 3.08V SOT23 | 62740 |
|
$0.1846 / $0.2384 | Buy Now |
US Tariff Estimator: ADM809TARTZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADM809TARTZ-REEL7
ADM809TARTZ-REEL7 CAD Models
-

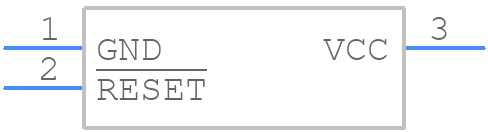

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADM809TARTZ-REEL7 Part Data Attributes
|
|
ADM809TARTZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM809TARTZ-REEL7
Analog Devices Inc
Microprocessor Supervisory Circuit in 3-Lead SOT-23 & SC70, Active-Low Push-Pull Output
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOT-23 | |
| Package Description | TSSOP, TO-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | RT-3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Current-Max (Isup) | 0.06 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +3.08V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 mm |
Alternate Parts for ADM809TARTZ-REEL7
This table gives cross-reference parts and alternative options found for ADM809TARTZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM809TARTZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| FM809TS3X | Fairchild Semiconductor Corporation | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, +3.08VV, CMOS, PDSO3, SOT-23, 3 PIN | ADM809TARTZ-REEL7 vs FM809TS3X |
| ADM809TART-REEL7 | Analog Devices Inc | Check for Price | Microprocessor Supervisory Circuit in 3-Lead SOT-23 & SC70, Active-Low Push-Pull Output | ADM809TARTZ-REEL7 vs ADM809TART-REEL7 |
| FM809SS3X | Fairchild Semiconductor Corporation | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, +2.93VV, CMOS, PDSO3, SOT-23, 3 PIN | ADM809TARTZ-REEL7 vs FM809SS3X |
| MAX809TTR | Motorola Semiconductor Products | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, PDSO3, PLASTIC, TO-236, SOT-23, 3 PIN | ADM809TARTZ-REEL7 vs MAX809TTR |
| MAX809TTRG | onsemi | Check for Price | Voltage Supervisor, Very Low Supply Current, 3-Pin Microprocessor, Reset Monitor 3.08 V, 140 ms minimum delay, SOT-23 (TO-236) 3 LEAD, 3000-REEL | ADM809TARTZ-REEL7 vs MAX809TTRG |
| MAX809TTR | onsemi | Check for Price | Voltage Supervisor, Very Low Supply Current, 3-Pin Microprocessor, Reset Monitor 3.08 V, 140 ms minimum delay, SOT-23 (TO-236) 3 LEAD, 3000-REEL | ADM809TARTZ-REEL7 vs MAX809TTR |
ADM809TARTZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM809TARTZ-REEL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and consider adding a ferrite bead or inductor in series with the power supply to reduce noise.
-
The ADM809TARTZ-REEL7 is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
-
To troubleshoot issues, start by verifying the power supply and decoupling. Check for proper PCB layout and routing. Use an oscilloscope to measure the input and output signals. Consult the datasheet and application notes for guidance on specific issues, and consider contacting Analog Devices' support team for further assistance.
-
Yes, the ADM809TARTZ-REEL7 is a high-frequency device and requires proper EMI/EMC design considerations. Use a shielded enclosure, keep sensitive traces short, and avoid running high-frequency traces near the device. Follow proper PCB layout and routing guidelines to minimize EMI/EMC issues.
