ADR395BUJZ-REEL7 Information
ADR395BUJZ-REEL7 by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADR395BUJZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5550
|
Newark | Volt Ref, 5V, Tsot-5, -40 To 125Deg C, Voltage Reference Type:Series, Product Range:Adr395 Series, Reference Voltage Min:4.995V, Reference Voltage Max:5.005V, Initial Accuracy:0.1%, Temperature Coefficient:9Ppm/°C, No. Of Pins:5Pins Rohs Compliant: Yes |Analog Devices ADR395BUJZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2611 |
|
$2.1900 / $3.1900 | Buy Now |
|
|
Analog Devices Inc | Prec Low Drift + 5.0V REF Min Qty: 1 Package Multiple: 3000 | 711 |
|
$2.1875 / $5.8100 | Buy Now |
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
DISTI #
ADR395BUJZ-R7
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 3000 | 0 |
|
$2.2800 | Buy Now |
|
DISTI #
SMC-ADR395BUJZ-REEL7
|
Sensible Micro Corporation | Ic, +5V Ref. W/Shutdown RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: TBC Container: Cut Tape | 15 |
|
RFQ | |
|
|
Chip Stock | 5.0VMicropower,LowNoisePrecisionVoltageReferencewithShutdown | 585 |
|
RFQ | |
|
|
Component Electronics, Inc | SMT TAPE | 5 |
|
$2.2500 / $3.4600 | Buy Now |
|
|
Win Source Electronics | IC VREF SERIES 5V TSOT23-5 | 2790 |
|
$3.7143 / $5.5714 | Buy Now |
US Tariff Estimator: ADR395BUJZ-REEL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADR395BUJZ-REEL7
ADR395BUJZ-REEL7 CAD Models
-

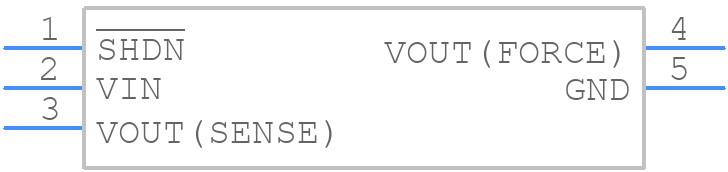

Part Symbol
-
