ADR421ARMZ Information
ADR421ARMZ by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADR421ARMZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9401
|
Newark | Volt Ref, 2.5V, Msop-8, -40 To 125Deg C, Voltage Reference Type:Series, Product Range:Adr421 Series, Reference Voltage Min:2.497V, Reference Voltage Max:2.503V, Initial Accuracy:3Mv, Temperature Coefficient:10Ppm/°C, Qualification:- Rohs Compliant: Yes |Analog Devices ADR421ARMZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 37 |
|
$4.3100 / $9.5600 | Buy Now |
|
|
Analog Devices Inc | 2.500 Voltage Reference Package Multiple: 50 | 62 |
|
$3.3900 / $9.5600 | Buy Now |
|
|
Rochester Electronics | Three Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 43 |
|
$3.6300 / $4.5400 | Buy Now |
|
DISTI #
ADR421ARMZ
|
TME | IC: voltage reference source, 2.5V, ±0.12%, MSOP8, reel,tape, 10mA Min Qty: 1 | 9 |
|
$3.9300 / $5.5000 | Buy Now |
|
DISTI #
ADR421ARMZ
|
Richardson RFPD | LINEAR ICS, OTHER RoHS: Compliant Min Qty: 1 | 70 |
|
$4.6900 / $5.1700 | Buy Now |
|
|
Win Source Electronics | Ultraprecision, Low Noise, 2.048 V/2.500 V/ 3.00 V/5.00 V XFET® Voltage References | IC VREF SERIES 2.5V 8MSOP | 9480 |
|
$3.3566 / $4.3356 | Buy Now |
US Tariff Estimator: ADR421ARMZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADR421ARMZ
ADR421ARMZ CAD Models
-

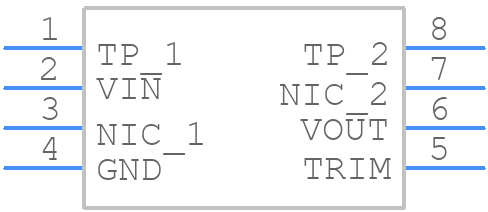

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADR421ARMZ Part Data Attributes
|
|
ADR421ARMZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADR421ARMZ
Analog Devices Inc
Ultraprecision, Low Noise, 2.500 V XFET® Voltage References
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP8,.19 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | OUTPUT VOLTAGE CAN BE ADJUSTED OVER A +/-0.5% RANGE USING TRIM PIN | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 2.503 V | |
| Output Voltage-Min | 2.497 V | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temp Coef of Voltage-Max | 10 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 0.12% | |
| Width | 3 mm |
