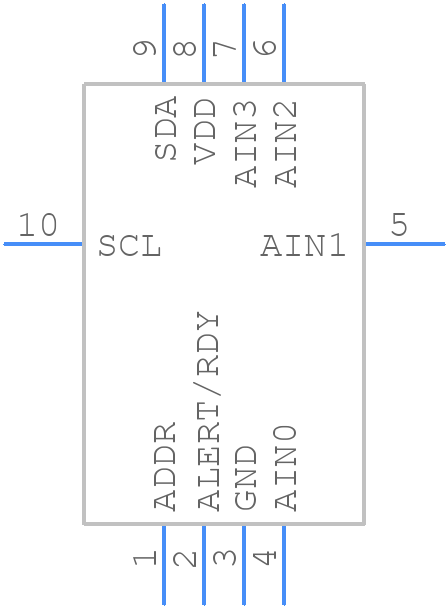

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS1115IRUGR by Texas Instruments
Overview of ADS1115IRUGR by Texas Instruments
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for ADS1115IRUGR
| Distributor | Stock | Package | QTY Break / Prices |
|---|---|---|---|
|
|
5977 Cut Tape |
Cut Tape |
|
|
|
5977 Digi-Reel® |
Digi-Reel |
|
|
|
3000 Tape & Reel |
Reel |
|
|
|
165132 |
|
|
|
|
180630 |
|
Part Details for ADS1115IRUGR
ADS1115IRUGR CAD Models
ADS1115IRUGR Part Data Attributes
|
|
ADS1115IRUGR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS1115IRUGR
Texas Instruments
16-bit, 860-SPS, 4-channel, delta-sigma ADC with PGA, oscillator, VREF, comparator and I<sup>2</sup>C 10-X2QFN -40 to 125
|
| Source Content uid | ADS1115IRUGR | |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | VQCCN, LCC10,.06X.08,20 | |
| Pin Count | 10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | -4.096 V | |
| Conversion Time-Max | 1.162 µs | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | R-PQCC-N10 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Linearity Error-Max (EL) | 0.0015% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC10,.06X.08,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supplies | 3.3 V | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.00086 MHz | |
| Seated Height-Max | 0.4 mm | |
| Supply Current-Max | 0.3 mA | |
| Supply Voltage-Min | 2 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.5 mm |
Alternate Parts for ADS1115IRUGR
This table gives cross-reference parts and alternative options found for ADS1115IRUGR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS1115IRUGR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| ADS1115IRUGT Converters | 16-bit, 860-SPS, 4-channel, delta-sigma ADC with PGA, oscillator, VREF, comparator and I2C 10-X2QFN -40 to 125 | Texas Instruments | ADS1115IRUGR vs ADS1115IRUGT |
