ADS8326IBDGKT Information
ADS8326IBDGKT by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| ADS8326IBDGKTG4 | Texas Instruments | 16-Bit, Pseudo-Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC 8-VSSOP -40 to 85 | |
| ADS8326IBDGKT | Texas Instruments | 16-Bit, Pseudo-Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC 8-VSSOP -40 to 85 |
Price & Stock for ADS8326IBDGKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 119 |
|
RFQ | ||
|
|
Bristol Electronics | 23 |
|
RFQ | ||
|
DISTI #
ADS8326IBDGKT
|
TME | IC: A/D converter, Ch: 1, 16bit, 250ksps, MSOP8, Max INL: ±1.5LSB Min Qty: 1 | 0 |
|
$13.8600 / $14.6800 | RFQ |
|
DISTI #
ADS8326IBDGKT
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 128 |
|
$8.9800 / $18.5000 | Buy Now |
|
|
LCSC | SPI 2.7V5.5V -40+85 MSOP-8 Analog to Digital Converters (ADC) RoHS | 54 |
|
$8.0688 / $11.5943 | Buy Now |
|
|
Win Source Electronics | 1-Channel Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R / IC ADC 16BIT SAMPLING 8VSSOP | 2650 |
|
$7.9074 / $10.2137 | Buy Now |
US Tariff Estimator: ADS8326IBDGKT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADS8326IBDGKT
ADS8326IBDGKT CAD Models
-

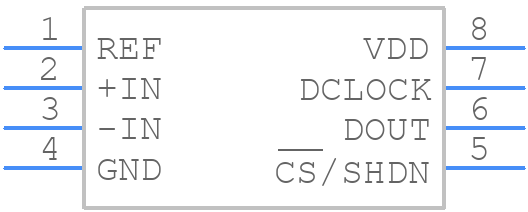

Part Symbol
-
