ADUCM320BBCZ Information
ADUCM320BBCZ by Analog Devices Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADUCM320BBCZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5691
|
Newark | Arm Mcu, 100Mips, 39I/O, Cspbga-96, Product Range:Aduc Family Aducm3 Series Microcontrollers, Device Core:-, Data Bus Width:32 Bit, Operating Frequency Max:-, Program Memory Size:128Kb, No. Of Pins:96Pins, Ic Case/Package:Cspbga Rohs Compliant: Yes |Analog Devices ADUCM320BBCZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 24 |
|
$19.5800 / $28.4700 | Buy Now |
|
|
Analog Devices Inc | 80Mhz Cortex M3 wi 14Bit Analo Package Multiple: 1 | 3886 |
|
$15.0700 / $28.4700 | Buy Now |
US Tariff Estimator: ADUCM320BBCZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADUCM320BBCZ
ADUCM320BBCZ CAD Models
-

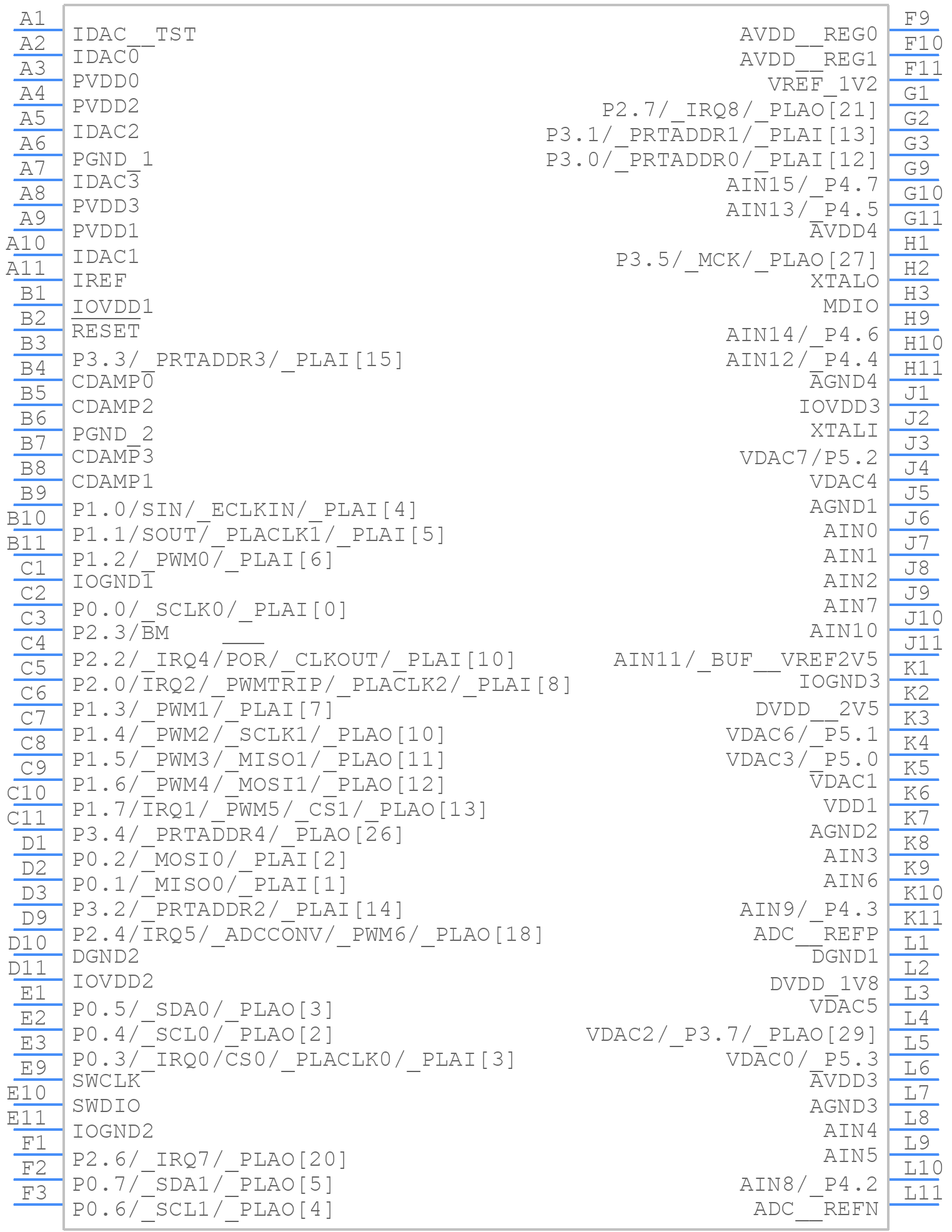

Part Symbol
-

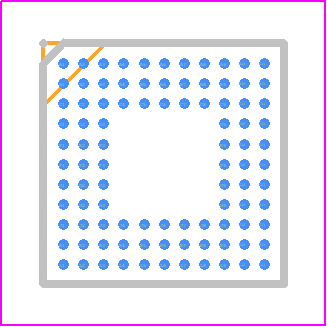

Footprint
-
