ADUM1400BRWZ-RL Information
ADUM1400BRWZ-RL by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADUM1400BRWZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5781
|
Newark | Digital Isolator, 4Ch, -40 To 105Deg C, No. Of Channels:4Channels, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, Data Rate:10Mbps, Input Level:Cmos, Output Level:Cmos, Product Range:- Rohs Compliant: Yes |Analog Devices ADUM1400BRWZ-RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 193 |
|
$4.2300 / $9.4400 | Buy Now |
|
|
Analog Devices Inc | QUAD-CHANNEL DIGITAL ISOLATORS Min Qty: 1000 Package Multiple: 1000 | 1000 |
|
$4.2375 / $9.4400 | Buy Now |
|
|
Bristol Electronics | 2095 |
|
RFQ | ||
|
|
Bristol Electronics | 90 |
|
RFQ | ||
|
DISTI #
ADUM1400BRWZ-RL
|
TME | IC: interface, digital isolator, 10Mbps, iCoupler®, 2.7÷5.5VDC Min Qty: 1000 | 0 |
|
$4.0100 | RFQ |
|
|
Chip 1 Exchange | INSTOCK | 1000 |
|
RFQ | |
|
|
Win Source Electronics | DGTL ISO 2.5KV GEN PURP 16SOIC | 11790 |
|
$2.0572 / $2.6571 | Buy Now |
US Tariff Estimator: ADUM1400BRWZ-RL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADUM1400BRWZ-RL
ADUM1400BRWZ-RL CAD Models
-

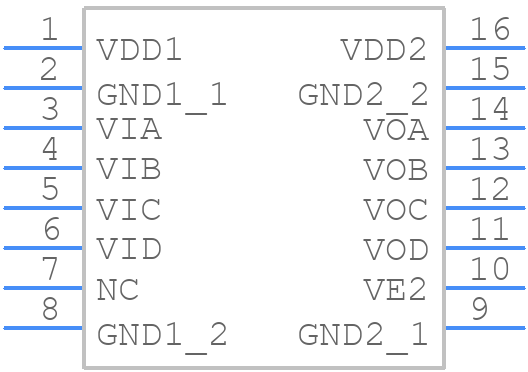

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADUM1400BRWZ-RL Part Data Attributes
|
|
ADUM1400BRWZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUM1400BRWZ-RL
Analog Devices Inc
Quad-Channel Digital Isolator (4/0 Channel Directionality)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8543.70.98.60 | |
| Samacsys Manufacturer | Analog Devices | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for ADUM1400BRWZ-RL
This table gives cross-reference parts and alternative options found for ADUM1400BRWZ-RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADUM1400BRWZ-RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SI8640BB-B-IS1 | Skyworks Solutions Inc | $3.8400 | CMOS, PDSO16, | ADUM1400BRWZ-RL vs SI8640BB-B-IS1 |
| ADUM1400BRWZ | Analog Devices Inc | $4.9240 | Quad-Channel Digital Isolator (4/0 Channel Directionality) | ADUM1400BRWZ-RL vs ADUM1400BRWZ |
| ADUM1400BRW-RL | Analog Devices Inc | Check for Price | Quad-Channel Digital Isolator (4/0 Channel Directionality) | ADUM1400BRWZ-RL vs ADUM1400BRW-RL |
| SI8640BB-B-IS1R | Skyworks Solutions Inc | Check for Price | CMOS, PDSO16, | ADUM1400BRWZ-RL vs SI8640BB-B-IS1R |
| SI8640BB-B-IS1 | Silicon Laboratories Inc | Check for Price | Analog Circuit, 1 Func, CMOS, PDSO16, SOIC-16 | ADUM1400BRWZ-RL vs SI8640BB-B-IS1 |
ADUM1400BRWZ-RL Frequently Asked Questions (FAQ)
-
The ADUM1400BRWZ-RL can support data rates up to 100 Mbps.
-
Yes, the ADUM1400BRWZ-RL is rated for operation from -40°C to +125°C, making it suitable for high-temperature applications.
-
The ADUM1400BRWZ-RL has a high common-mode transient immunity of 25 kV/μs, making it suitable for applications with high electromagnetic interference (EMI).
-
Yes, the ADUM1400BRWZ-RL is compatible with industrial communication protocols such as PROFIBUS, DeviceNet, and CAN.
-
The typical power consumption of the ADUM1400BRWZ-RL is 2.5 mA per channel at 5 V supply voltage.
