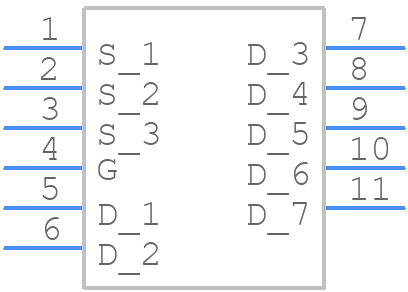

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AONR21357 by Alpha & Omega Semiconductor
Results Overview of AONR21357 by Alpha & Omega Semiconductor
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AONR21357 Information
AONR21357 by Alpha & Omega Semiconductor is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for AONR21357
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Win Source Electronics | MOSFET P-CH 30V 21A/34A 8DFN / P-Channel 30 V 21A (Ta), 34A (Tc) 5W (Ta), 30W (Tc) Surface Mount 8-DFN-EP (3x3) | 57911 |
|
$0.1175 / $0.1517 | Buy Now |
Part Details for AONR21357
AONR21357 CAD Models
AONR21357 Part Data Attributes
|
|
AONR21357
Alpha & Omega Semiconductor
Buy Now
Datasheet
|
Compare Parts:
AONR21357
Alpha & Omega Semiconductor
Power Field-Effect Transistor, 34A I(D), 30V, 0.0078ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, DFN 3X3_EP, 8 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dfn 3x3_ep, 8 Pin | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Avalanche Energy Rating (Eas) | 76 Mj | |
| Case Connection | Drain | |
| Configuration | Single With Built-In Diode | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 34 A | |
| Drain-source On Resistance-Max | 0.0078 Ω | |
| FET Technology | Metal-Oxide Semiconductor | |
| JESD-30 Code | S-PDSO-F5 | |
| Number of Elements | 1 | |
| Number of Terminals | 5 | |
| Operating Mode | Enhancement Mode | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Square | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Polarity/Channel Type | P-Channel | |
| Pulsed Drain Current-Max (IDM) | 136 A | |
| Surface Mount | Yes | |
| Terminal Form | Flat | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
