AQ1003-01LTG Information
AQ1003-01LTG by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for AQ1003-01LTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK5895
|
Newark | Esd Protect Device, Aec-Q101, 5V, Sod-523 Rohs Compliant: Yes |Littelfuse AQ1003-01LTG RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 514 |
|
$0.2460 / $0.4680 | Buy Now |
|
DISTI #
02AH9337
|
Newark | 1Ch 30Kv 30Pf 5V Uni Tvs Diode Sod523/ Tr |Littelfuse AQ1003-01LTG RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1170 / $0.1680 | Buy Now |
|
DISTI #
75575273
|
RS | 1Ch 30KV 30pF 5V Uni TVS Diode SOD523 Min Qty: 5000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1990 / $0.2160 | RFQ |
|
DISTI #
AQ1003-01LTG
|
IBS Electronics | AQ1003-01LTG SERIES - 30PF 30KV UNIDIRECTIONAL DISCRETE TVS SOD523 ROHS Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.1337 / $0.1414 | Buy Now |
|
|
LCSC | 7A8/20us 14V 6V Unidirectional 5V SOD-523 TVS Diodes RoHS | 10 |
|
$0.1093 / $0.1151 | Buy Now |
US Tariff Estimator: AQ1003-01LTG by Littelfuse Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AQ1003-01LTG
AQ1003-01LTG CAD Models
-
Part Symbol
-
Footprint
-

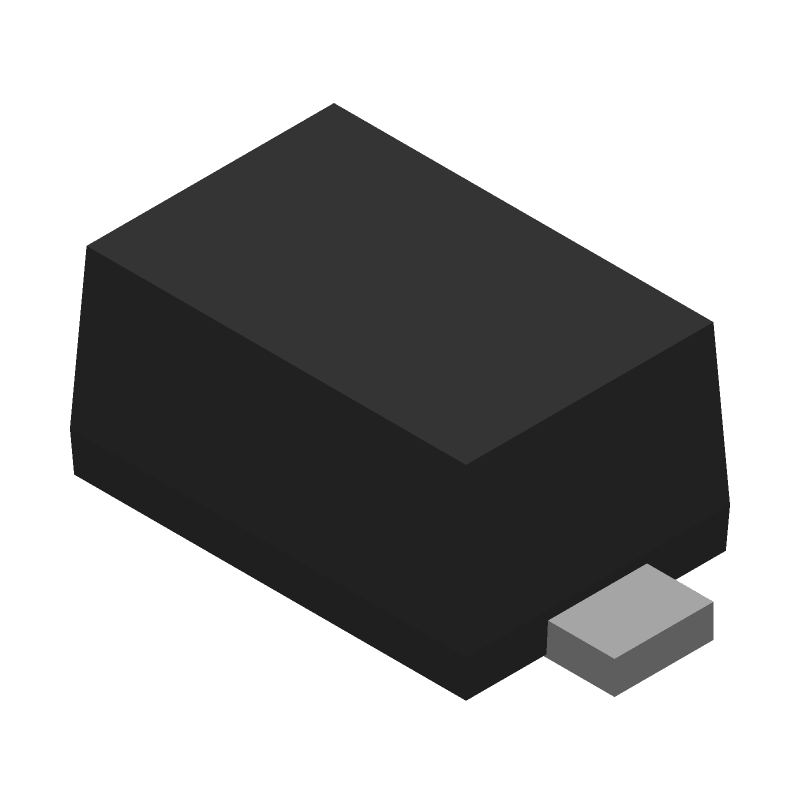

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AQ1003-01LTG Part Data Attributes
|
|
AQ1003-01LTG
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
AQ1003-01LTG
Littelfuse Inc
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Breakdown Voltage-Max | 8.5 V | |
| Breakdown Voltage-Min | 6 V | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Trans Voltage Suppressor Diode | |
| JESD-30 Code | R-PDSO-F2 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Polarity | Unidirectional | |
| Reference Standard | Aec-Q101; Iec-61000-4-2, 4-4, 4-5 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Surface Mount | Yes | |
| Technology | Avalanche | |
| Terminal Form | Flat | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified |
