AQV253AX Information
AQV253AX by Panasonic Electronic Components is a Solid State Relay.
Solid State Relays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for AQV253AX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10C3831
|
Newark | Ic, normally-Open Pc-Mount Solid-State Relay,1-Channel, so Rohs Compliant: Yes |Panasonic AQV253AX RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.9900 | Buy Now |
|
DISTI #
AQV253AX
|
Avnet Americas | - Tape and Reel (Alt: AQV253AX) COO: Japan RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$3.0432 / $3.1066 | Buy Now |
|
DISTI #
70618002
|
RS | RELAY OPTO 250V 200MA 6-SMD Min Qty: 1000 Package Multiple: 1 Lead time: 72 Weeks, 0 Days Container: Bulk | 0 |
|
$5.7700 | RFQ |
|
DISTI #
AQV253AX
|
TME | Relay: solid state, SPST-NO, Ucntrl: 5VDC, Icntrl: 50A, 200mA, HE Min Qty: 1000 | 0 |
|
$5.8700 | RFQ |
|
DISTI #
000000000000189924
|
Sager | RELAY PHOTOMOS Min Qty: 1000 | 0 |
|
$4.4300 | Buy Now |
US Tariff Estimator: AQV253AX by Panasonic Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AQV253AX
AQV253AX CAD Models
-

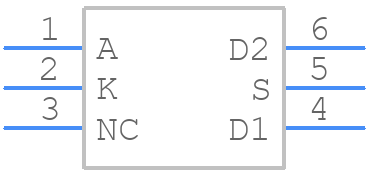

Part Symbol
-

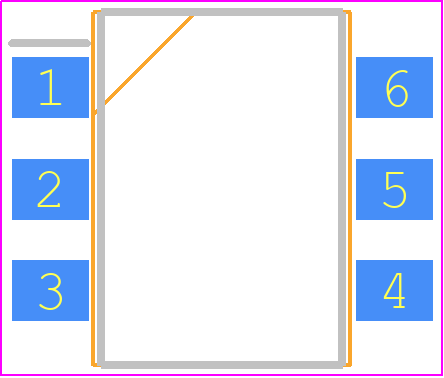

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AQV253AX Part Data Attributes
|
|
AQV253AX
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
AQV253AX
Panasonic Electronic Components
Transistor Output SSR, 1-Channel, 1500V Isolation, DIP-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | DIP-6 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8541.49.95.00 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | HIGH SENSITIVITY, UL RECOGNIZED | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 1500 V | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.2 A | |
| On-state Resistance-Max | 8 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT SSR | |
| Packing Method | TR |
Alternate Parts for AQV253AX
This table gives cross-reference parts and alternative options found for AQV253AX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AQV253AX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AQV253A | Panasonic Electronic Components | $6.9395 | Transistor Output SSR, 1-Channel, 1500V Isolation, DIP-6 | AQV253AX vs AQV253A |
| AQV253AX | Aromat Corp | Check for Price | Solid State Relay, | AQV253AX vs AQV253AX |
| AQV253AZ | Panasonic Electronic Components | Check for Price | Transistor Output SSR, 1-Channel, 1500V Isolation, DIP-6 | AQV253AX vs AQV253AZ |
| AQV253 | Aromat Corp | Check for Price | Solid State Relay, | AQV253AX vs AQV253 |
AQV253AX Frequently Asked Questions (FAQ)
-
Panasonic recommends a minimum of 1.5 mm clearance around the relay and a thermal via under the relay to dissipate heat. A ground plane under the relay is also recommended to reduce electromagnetic interference.
-
The AQV253AX requires a minimum of 1.5V to operate. Ensure the drive circuit can provide a current of at least 10mA to the relay coil. A diode or snubber circuit may be required to suppress back-EMF.
-
The AQV253AX is designed for low-frequency switching applications. While it can switch at frequencies up to 100 Hz, excessive switching can lead to reduced lifespan. Consult Panasonic's application notes for specific guidance.
-
The AQV253AX is rated for operation up to 85°C. While it can tolerate short-term excursions up to 100°C, prolonged exposure above 85°C may affect relay lifespan. Consult Panasonic's reliability data for specific guidance.
-
The AQV253AX meets various safety standards, including UL, cUL, and TÜV. Ensure your application meets relevant safety standards and regulations, such as IEC 61010-1, by consulting Panasonic's safety documentation and relevant regulatory bodies.
