ASE-25.000MHZ-L-C-T by: Abracon Corporation

CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

Part Details for ASE-25.000MHZ-L-C-T by Abracon Corporation

Results Overview of ASE-25.000MHZ-L-C-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

ASE-25.000MHZ-L-C-T Information

ASE-25.000MHZ-L-C-T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for ASE-25.000MHZ-L-C-T

Part # Distributor Description Stock Price Buy
DISTI # 61AK1175
Newark Osc, 25Mhz, Lvcmos, Smd, 3.2Mm X 2.5Mm Rohs Compliant: Yes |Abracon ASE-25.000MHZ-L-C-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 4000
  • 1,000 $1.2400
$1.2400 Buy Now
DISTI # ASE-25.000MHZ-L-C-T
Avnet Americas Oscillator, 25 MHz, 50 ppm, SMD, 3.2mm x 2.5mm, 3.3 V, ASE Series - Tape and Reel (Alt: ASE-25.000MHZ-L-C-T) COO: Korea (the Republic of) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel 17000
  • 1,000 $0.9743
  • 5,000 $0.6984
  • 10,000 $0.6008
  • 25,000 $0.5245
  • 100,000 $0.4472
$0.4472 / $0.9743 Buy Now
DISTI # ASE-25.000MHZ-L-C-T
Avnet Abacus Oscillator Crystal 25 MHz 50 ppm SMD 32mm x 25mm 33 V ASE Series - Tape and Reel (Alt: ASE-25.000MHZ-L-C-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel Abacus - 40000
Buy Now
DISTI # ASE-25.000MHZ-L-C-T
Avnet Asia Oscillator, 25 MHz, 50 ppm, SMD, 3.2mm x 2.5mm, 3.3 V, ASE Series (Alt: ASE-25.000MHZ-L-C-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days 0
  • 1,000 $1.1268
  • 2,000 $1.1111
  • 3,000 $1.0959
  • 5,000 $1.0811
  • 10,000 $1.0526
  • 25,000 $1.0256
  • 50,000 $1.0000
$1.0000 / $1.1268 Buy Now
New Advantage Corporation ASE Series 25 MHz 3.2 x 2.5 mm 3.3 V �50 ppm SMT Crystal Clock Oscillator RoHS: Compliant Min Qty: 1 Package Multiple: 1000 32000
  • 1,000 $0.7333
  • 32,000 $0.6769
$0.6769 / $0.7333 Buy Now

US Tariff Estimator: ASE-25.000MHZ-L-C-T by Abracon Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ASE-25.000MHZ-L-C-T
Abracon Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ASE-25.000MHZ-L-C-T

ASE-25.000MHZ-L-C-T CAD Models

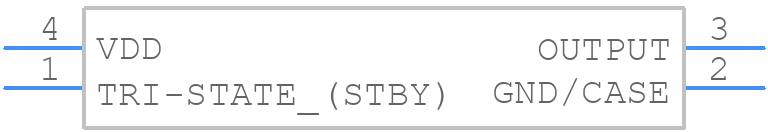

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ASE-25.000MHZ-L-C-T Part Data Attributes

Parametric Data
ASE-25.000MHZ-L-C-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ASE-25.000MHZ-L-C-T Abracon Corporation CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, SMD, 4 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant, Smd, 4 Pin
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8541.60.00.60
Factory Lead Time 10 Weeks
Additional Feature Tri-State; Standby; Enable/Disable Function; Tape And Reel
Fall Time-Max 4 Ns
Frequency Adjustment-Mechanical No
Frequency Stability 50%
Mounting Feature Surface Mount
Number of Terminals 4
Operating Frequency-Nom 25 Mhz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type Cmos
Output Load 15 Pf
Physical Dimension 3.2mm X 2.5mm X 1.2mm
Rise Time-Max 4 Ns
Supply Voltage-Max 3.465 V
Supply Voltage-Min 3.135 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Symmetry-Max 55/45 %

Alternate Parts for ASE-25.000MHZ-L-C-T

This table gives cross-reference parts and alternative options found for ASE-25.000MHZ-L-C-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ASE-25.000MHZ-L-C-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ASE-25.000MHZ-E-C Abracon Corporation Check for Price Oscillator, 0.625MHz Min, 200MHz Max, 25MHz Nom, CMOS ASE-25.000MHZ-L-C-T vs ASE-25.000MHZ-E-C
ASE-25.000MHZ-C-T3 Abracon Corporation Check for Price XTAL OSC XO 25.0000MHZ CMOS SMD ASE-25.000MHZ-L-C-T vs ASE-25.000MHZ-C-T3
ASE-25.000MHZ-N-C-T Abracon Corporation Check for Price CMOS Output Clock Oscillator, ASE-25.000MHZ-L-C-T vs ASE-25.000MHZ-N-C-T
EB13E2D2H-25.000MTR Abracon Corporation Check for Price LVHCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN ASE-25.000MHZ-L-C-T vs EB13E2D2H-25.000MTR
ASE-25.000MHZ-I-C-T Abracon Corporation Check for Price CMOS Output Clock Oscillator, ASE-25.000MHZ-L-C-T vs ASE-25.000MHZ-I-C-T
ASE-25.000MHZ-L-C Abracon Corporation Check for Price CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, SMD, 4 PIN ASE-25.000MHZ-L-C-T vs ASE-25.000MHZ-L-C
EB13E2H2H-25.000MTR Abracon Corporation Check for Price LVHCMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN ASE-25.000MHZ-L-C-T vs EB13E2H2H-25.000MTR
Part Number Manufacturer Composite Price Description Compare
EBRA53T2H-25.000M Abracon Corporation Check for Price LVCMOS Output Clock Oscillator, 25MHz Nom, ASE-25.000MHZ-L-C-T vs EBRA53T2H-25.000M
SM99221C2A@25.000000MHZ MMD Check for Price CMOS Output Clock Oscillator, 25MHz Nom ASE-25.000MHZ-L-C-T vs SM99221C2A@25.000000MHZ
VC-801-EA7-KACN-25M0000000 Microchip Technology Inc Check for Price CMOS Output Clock Oscillator, 25MHz Nom, ASE-25.000MHZ-L-C-T vs VC-801-EA7-KACN-25M0000000
531PA25M0000BGR Silicon Laboratories Inc Check for Price CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, SMD, 6 PIN ASE-25.000MHZ-L-C-T vs 531PA25M0000BGR
HT-MM900AE-9K-ES-25M0000000_SNPBDIP Microchip Technology Inc Check for Price CMOS Output Clock Oscillator, 25MHz Nom ASE-25.000MHZ-L-C-T vs HT-MM900AE-9K-ES-25M0000000_SNPBDIP
HT-MM900AC-9K-EE-25M0000000_SNPBDIP Microchip Technology Inc Check for Price CMOS Output Clock Oscillator, 25MHz Nom ASE-25.000MHZ-L-C-T vs HT-MM900AC-9K-EE-25M0000000_SNPBDIP
8WE-25.000MBM-T TXC Corporation Check for Price CMOS Output Clock Oscillator, 25MHz Nom, SMD, 4 PIN ASE-25.000MHZ-L-C-T vs 8WE-25.000MBM-T
532CA000040BG Silicon Laboratories Inc Check for Price CMOS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, SMD, 6 PIN ASE-25.000MHZ-L-C-T vs 532CA000040BG
SM99421C7E@25.000000MHZ MMD Check for Price CMOS Output Clock Oscillator, 25MHz Nom ASE-25.000MHZ-L-C-T vs SM99421C7E@25.000000MHZ
8WE-25.000MBE-T TXC Corporation Check for Price CMOS Output Clock Oscillator, 25MHz Nom, SMD, 4 PIN ASE-25.000MHZ-L-C-T vs 8WE-25.000MBE-T
equivalents icon

ASE-25.000MHZ-L-C-T Related Parts

ASE-25.000MHZ-L-C-T Frequently Asked Questions (FAQ)

  • Abracon recommends a soldering temperature profile with a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, ASE-25.000MHZ-L-C-T is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The maximum operating temperature range for ASE-25.000MHZ-L-C-T is -40°C to +85°C.

  • Yes, ASE-25.000MHZ-L-C-T is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.

  • The typical frequency stability of ASE-25.000MHZ-L-C-T over temperature is ±20 ppm from -40°C to +85°C.
