ASFLMB-50.000MHZ-LC-T by: Abracon Corporation

MEMS OSC XO 50.0000MHZ LVCMOS

Part Details for ASFLMB-50.000MHZ-LC-T by Abracon Corporation

Results Overview of ASFLMB-50.000MHZ-LC-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Renewable Energy Telecommunications Automotive Robotics and Drones

ASFLMB-50.000MHZ-LC-T Information

ASFLMB-50.000MHZ-LC-T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for ASFLMB-50.000MHZ-LC-T

Part # Distributor Description Stock Price Buy
DISTI # 73AJ1401
Newark Mems Osc, 50Mhz, Cmos, Smd, 5Mm X 3.2Mm Rohs Compliant: Yes |Abracon ASFLMB-50.000MHZ-LC-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 1000
  • 1,000 $2.0900
  • 2,000 $2.0600
  • 4,000 $2.0400
  • 6,000 $2.0100
$2.0100 / $2.0900 Buy Now
DISTI # 51AC8861
Newark Mems Oscillator, 50Mhz, Smd, 3.2 X 2.5Mm, Frequency Nom:50Mhz, Oscillator Case:Smd, 5Mm X 3.2Mm, Frequency Stability +/-:50Ppm, Supply Voltage Nom:3.3V, Product Range:Pure Silicon Asflmb Series, Oscillator Output Rohs Compliant: Yes |Abracon ASFLMB-50.000MHZ-LC-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 626
  • 1 $3.0200
  • 10 $2.4900
$2.4900 / $3.0200 Buy Now
DISTI # ASFLMB-50.000MHZ-LC-T
Avnet Americas MEMS Oscillator, 50 MHz, SMD, 5mm x 3.2mm, 50 ppm, 3.3 V, ASFLMB - Tape and Reel (Alt: ASFLMB-50.000MHZ-LC-T) COO: Thailand RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 1,000 $1.5680
  • 5,000 $1.4874
  • 10,000 $1.2334
  • 25,000 $1.2271
  • 50,000 $1.2207
$1.2207 / $1.5680 Buy Now
DISTI # ASFLMB-50.000MHZ-LC-T
Avnet Abacus MEMS Oscillator 50 MHz SMD 5mm x 32mm 50 ppm 33 V ASFLMB - Tape and Reel (Alt: ASFLMB-50.000MHZ-LC-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel Abacus - 13000
Buy Now
New Advantage Corporation Industrial Temp 2nd Gen. MEMS Oscillator, 50.000MHZ, 50ppm -40+85C Temp. Stabilty,, 5 x 3 mm, 1.8 ~ 3.3 Vdc, . Tape & Reel RoHS: Compliant Min Qty: 1 Package Multiple: 1000 10000
  • 1,000 $2.7100
  • 10,000 $2.5000
$2.5000 / $2.7100 Buy Now

Part Details for ASFLMB-50.000MHZ-LC-T

ASFLMB-50.000MHZ-LC-T CAD Models

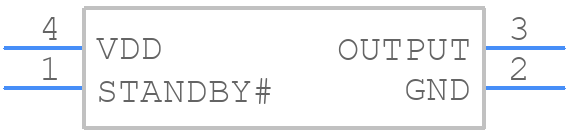

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

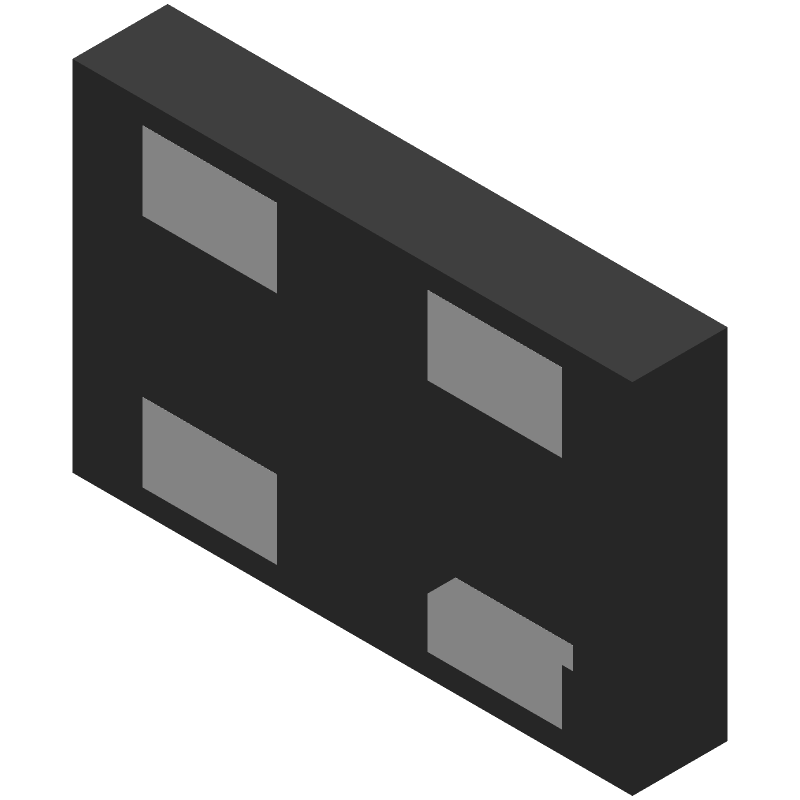

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ASFLMB-50.000MHZ-LC-T Part Data Attributes

Parametric Data
ASFLMB-50.000MHZ-LC-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ASFLMB-50.000MHZ-LC-T Abracon Corporation MEMS OSC XO 50.0000MHZ LVCMOS
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant, Ultra Miniature, Plastic, Qfn-4
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 8 Weeks
Additional Feature Tri-State; Standby; Enable/Disable Function; Tr; Supply Voltage 1.8v And 2.5v Also Availlable
Fall Time-Max 2 Ns
Frequency Adjustment-Mechanical No
Frequency Stability 50%
JESD-609 Code e4
Mounting Feature Surface Mount
Number of Terminals 4
Operating Frequency-Max 150 Mhz
Operating Frequency-Min 1 Mhz
Operating Frequency-Nom 50 Mhz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type Cmos
Output Load 10 Kohm, 15 Pf
Package Body Material Plastic/Epoxy
Package Equivalence Code DILCC4,.12
Physical Dimension 5.0mm X 3.2mm X 0.85mm
Qualification Status Not Qualified
Rise Time-Max 2 Ns
Supply Current-Max 15 Ma
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Symmetry-Max 55/45 %
Technology Cmos
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)

Alternate Parts for ASFLMB-50.000MHZ-LC-T

This table gives cross-reference parts and alternative options found for ASFLMB-50.000MHZ-LC-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ASFLMB-50.000MHZ-LC-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ASFLMB-50.000MHZ-C-T Abracon Corporation Check for Price XO, Clock, 1MHz Min, 150MHz Max, 50MHz Nom, CMOS, ASFLMB-50.000MHZ-LC-T vs ASFLMB-50.000MHZ-C-T
ASFLMB-50.000MHZ-XC-T Abracon Corporation Check for Price XO, Clock, 1MHz Min, 150MHz Max, 50MHz Nom, CMOS, ASFLMB-50.000MHZ-LC-T vs ASFLMB-50.000MHZ-XC-T
ASFLMB-50.000MHZ-LC-T3 Abracon Corporation Check for Price XO, Clock, 1MHz Min, 150MHz Max, 50MHz Nom, CMOS, ASFLMB-50.000MHZ-LC-T vs ASFLMB-50.000MHZ-LC-T3
ASFLMB-50.000MHZ-XC-T3 Abracon Corporation Check for Price XO, Clock, 1MHz Min, 150MHz Max, 50MHz Nom, CMOS, ASFLMB-50.000MHZ-LC-T vs ASFLMB-50.000MHZ-XC-T3
Part Number Manufacturer Composite Price Description Compare
ASFLMB-50.000MHZ-EC-T Abracon Corporation Check for Price MEMS OSC XO 50.0000MHZ LVCMOS ASFLMB-50.000MHZ-LC-T vs ASFLMB-50.000MHZ-EC-T
equivalents icon

ASFLMB-50.000MHZ-LC-T Related Parts

ASFLMB-50.000MHZ-LC-T Frequently Asked Questions (FAQ)

  • The recommended storage condition for ASFLMB-50.000MHZ-LC-T is to store them in a dry, cool place, away from direct sunlight, and in their original packaging to prevent damage and degradation.

  • While ASFLMB-50.000MHZ-LC-T can operate up to 85°C, it's essential to consider the derating curve and thermal management to ensure reliable performance in high-temperature applications.

  • Handle ASFLMB-50.000MHZ-LC-T by the package, not the leads, to prevent damage. Use a soldering iron with a temperature of 250°C or less, and avoid applying excessive force or bending the leads.

  • The recommended PCB layout and land pattern for ASFLMB-50.000MHZ-LC-T can be found in the Abracon Corporation's application note or by contacting their technical support team.

  • Yes, ASFLMB-50.000MHZ-LC-T is a RoHS-compliant component, making it suitable for use in RoHS-compliant designs.
