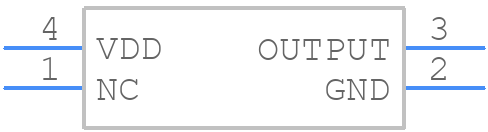

Part Symbol
-

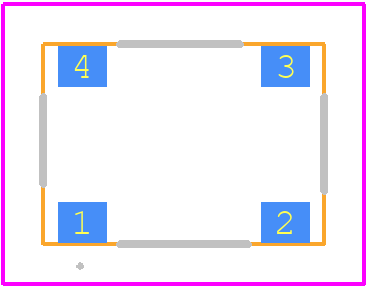

Footprint
-

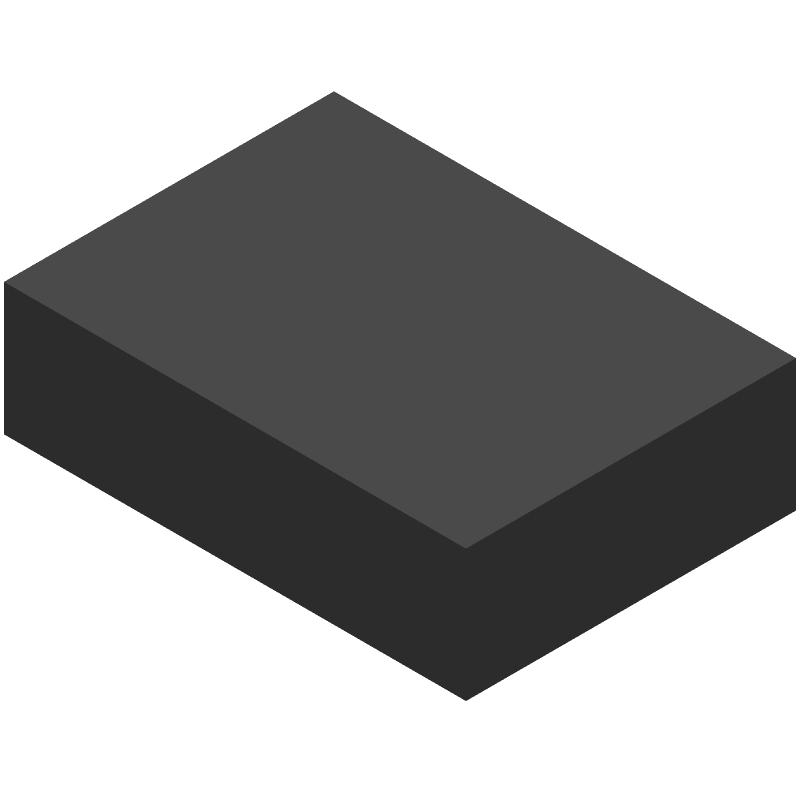

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AST3TQ-T-26.000MHZ-28 by Abracon Corporation
Results Overview of AST3TQ-T-26.000MHZ-28 by Abracon Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Robotics and Drones
AST3TQ-T-26.000MHZ-28 Information
AST3TQ-T-26.000MHZ-28 by Abracon Corporation is a TCXO.
TCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for AST3TQ-T-26.000MHZ-28
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AST3TQ-T-26.000MHZ-28
|
Avnet Americas | - Bulk (Alt: AST3TQ-T-26.000MHZ-28) COO: China RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
DISTI #
71320740
|
RS | ABRACON FREQUENCY CONTROL - AST3TQ-T-26.000MHZ-28 Min Qty: 50 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$18.1400 / $21.3400 | RFQ |
Part Details for AST3TQ-T-26.000MHZ-28
AST3TQ-T-26.000MHZ-28 CAD Models
AST3TQ-T-26.000MHZ-28 Part Data Attributes
|
|
AST3TQ-T-26.000MHZ-28
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
AST3TQ-T-26.000MHZ-28
Abracon Corporation
XTAL OSC TCXO 26.0000MHZ LVCMOS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dilcc4,.2,200 | |
| Reach Compliance Code | Compliant | |
| Factory Lead Time | 10 Weeks | |
| Aging | 1 Ppm/First Year | |
| Fall Time-Max | 6 Ns | |
| Frequency Adjustment-Mechanical | No | |
| Frequency Stability | 0.28% | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 26 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | Lvcmos | |
| Output Load | 15 Pf | |
| Package Equivalence Code | DILCC4,.2,200 | |
| Physical Dimension | 7.0mm X 5.0mm X 1.9mm | |
| Rise Time-Max | 6 Ns | |
| Supply Voltage-Max | 3.465 V | |
| Supply Voltage-Min | 3.135 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Symmetry-Max | 55/45 % |
