AT86RF212B-ZUR Information
AT86RF212B-ZUR by Microchip Technology Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for AT86RF212B-ZUR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86W6976
|
Newark | 700/800/900Mhz Zigbee Transceiver Toucan 32 Vqfn 5X5X0.9Mm T/R Rohs Compliant: Yes |Microchip AT86RF212B-ZUR RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.8900 | Buy Now |
|
DISTI #
41AH8381
|
Newark | Transceiver, 1Mbps, 769-935Mhz, Qfn-32, Frequency Min:769Mhz, Frequency Max:935Mhz, Rf/If Modulation:Bpsk, O-Qpsk, Data Rate:1Mbps, Receiving Current:9.2Ma, Rf Ic Case Style:Qfn, No. Of Pins:32Pins, Supply Voltage Min:1.8V Rohs Compliant: Yes |Microchip AT86RF212B-ZUR RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$1.9700 | Buy Now |
|
DISTI #
AT86RF212B-ZUR
|
Avnet Americas | Radio Transceiver, 769 MHz to 935 MHz, 32 Pins, QFN-EP - Tape and Reel (Alt: AT86RF212B-ZUR) COO: Philippines (the) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$1.9500 / $2.2286 | Buy Now |
|
DISTI #
AT86RF212B-ZUR
|
Microchip Technology Inc | 700/800/900MHz ZigBee Transceiver Toucan, VQFN, Projected EOL: 2039-05-14 COO: Philippines ECCN: 5A992.c RoHS: Compliant Lead time: 11 Weeks, 0 Days Container: Reel | In Stock: 0 and Alternates Available |
|
$1.6000 / $2.2200 | Buy Now |
|
|
NAC | 700/800/900MHz ZigBee Transceiver Toucan. Package: 32 VQFN 5x5x0.9mm T/R - AVRZLINK Product Line RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | 0 |
|
$1.9500 / $2.4000 | Buy Now |
|
DISTI #
AT86RF212B-ZUR
|
Avnet Silica | Radio Transceiver 769 MHz to 935 MHz 32 Pins QFNEP (Alt: AT86RF212B-ZUR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | RFTransceiverBPSK/QPSK1.8/3V32-PinVQFNT/R-Productthatcomesontape,butisnotreeled(Alt | 10770 |
|
RFQ | |
|
DISTI #
AT86RF212B-ZUR
|
EBV Elektronik | Radio Transceiver 769 MHz to 935 MHz 32 Pins QFNEP (Alt: AT86RF212B-ZUR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC RF TXRX+MCU 802.15.4 32-VFQFN | 9270 |
|
$4.5454 / $6.8182 | Buy Now |
US Tariff Estimator: AT86RF212B-ZUR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AT86RF212B-ZUR
AT86RF212B-ZUR CAD Models
-

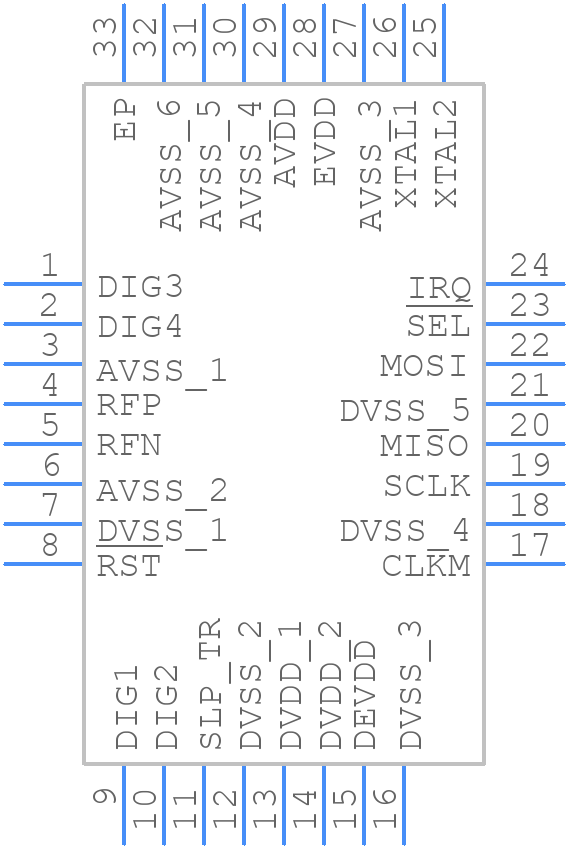

Part Symbol
-
