Part Details for ATL431AQDBZR by Texas Instruments
Results Overview of ATL431AQDBZR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
ATL431AQDBZR Information
ATL431AQDBZR by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| ATL431AQDBZR | Texas Instruments | 2.5V low-Iq adjustable precision shunt regulator 3-SOT-23 -40 to 125 |
Price & Stock for ATL431AQDBZR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ATL431AQDBZR
|
TME | IC: voltage reference source, 2.5V, ±1%, SOT23, reel,tape, 100mA Min Qty: 1 | 965 |
|
$0.1920 / $0.4700 | Buy Now |
|
|
Win Source Electronics | IC VREF SHUNT ADJ 1% SOT23-3 / Shunt Voltage Reference IC Adjustable 2.5V 36 VV ±1% 100 mA SOT-23-3 | 61350 |
|
$0.0772 / $0.0996 | Buy Now |
US Tariff Estimator: ATL431AQDBZR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ATL431AQDBZR
ATL431AQDBZR CAD Models
-

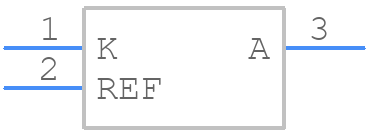

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ATL431AQDBZR Part Data Attributes
|
|
ATL431AQDBZR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ATL431AQDBZR
Texas Instruments
2.5-V low-IQ adjustable precision shunt regulator 3-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOP, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e4 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 2.525 V | |
| Output Voltage-Min | 2.475 V | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.12 mm | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 2.475 V | |
| Surface Mount | YES | |
| Temp Coef of Voltage-Max | 92 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Width | 1.3 mm |
Alternate Parts for ATL431AQDBZR
This table gives cross-reference parts and alternative options found for ATL431AQDBZR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATL431AQDBZR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ATL431AIDBZR | Texas Instruments | $0.3078 | 2.5-V low-IQ adjustable precision shunt regulator 3-SOT-23 -40 to 85 | ATL431AQDBZR vs ATL431AIDBZR |
ATL431AQDBZR Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the ATL431AQDBZR is -40°C to 125°C.
-
To ensure proper biasing, connect the cathode (K) to a voltage source, and the anode (A) to a current-limiting resistor. The recommended bias voltage is between 2.5V and 36V.
-
The maximum current rating for the ATL431AQDBZR is 100mA.
-
Yes, the ATL431AQDBZR can be used as a Zener diode. However, it's essential to follow the recommended biasing and operating conditions to ensure optimal performance.
-
To prevent electrostatic discharge (ESD) damage, handle the ATL431AQDBZR with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected.
