Part Details for ATSAML21J18B-MUT by Microchip Technology Inc
Results Overview of ATSAML21J18B-MUT by Microchip Technology Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
ATSAML21J18B-MUT Information
ATSAML21J18B-MUT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ATSAML21J18B-MUT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15AC6201
|
Newark | Mcu, 32Bit, Cortex-M0+, 48Mhz, Qfn-64, Product Range:Sam32 Family Sam L21 Series Microcontrollers, Architecture:Arm Cortex-M0+, No. Of Bits:32Bit, Cpu Speed:48Mhz, Program Memory Size:256Kb, Ram Memory Size:32Kb, No. Of Pins:64Pins, Rohs Compliant: Yes |Microchip ATSAML21J18B-MUT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3975 |
|
$5.4100 / $6.5600 | Buy Now |
|
DISTI #
ATSAML21J18B-MUT
|
Avnet Americas | - Tape and Reel (Alt: ATSAML21J18B-MUT) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$5.7500 / $6.5714 | Buy Now |
|
DISTI #
ATSAML21J18B-MUT
|
Microchip Technology Inc | 64QFN 85C, GREEN,1.6-3.6V,48MHz, VQFN, Projected EOL: 2039-12-14 COO: Philippines, Taiwan ECCN: 5A992.c RoHS: Compliant Lead time: 19 Weeks, 0 Days Container: Reel | In Stock: 1996 and Alternates Available |
|
$4.7400 / $6.5600 | Buy Now |
|
|
NAC | 64QFN 85C, GREEN,1.6-3.6V,48MHz. Package: 64 VQFN 9x9x1mm T/R - 110 nm and 130 nm Products Product Line RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 | 0 |
|
$5.6100 / $6.7600 | Buy Now |
|
DISTI #
ATSAML21J18B-MUT
|
Avnet Silica | (Alt: ATSAML21J18B-MUT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 25 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | MCU32-bitSAMLARMCortexM0+RISC256KBFlash3.3V64-PinQFNEP | 30400 |
|
RFQ | |
|
DISTI #
ATSAML21J18B-MUT
|
EBV Elektronik | (Alt: ATSAML21J18B-MUT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | ARM Cortex-M Series 48MHz 51 QFN-64-EP(9x9) Microcontrollers RoHS | 6 |
|
$7.9953 / $8.4694 | Buy Now |
|
|
Win Source Electronics | IC MCU 32BIT 256KB FLASH 64QFN | 26900 |
|
$8.1818 / $12.2727 | Buy Now |
US Tariff Estimator: ATSAML21J18B-MUT by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ATSAML21J18B-MUT
ATSAML21J18B-MUT CAD Models
-

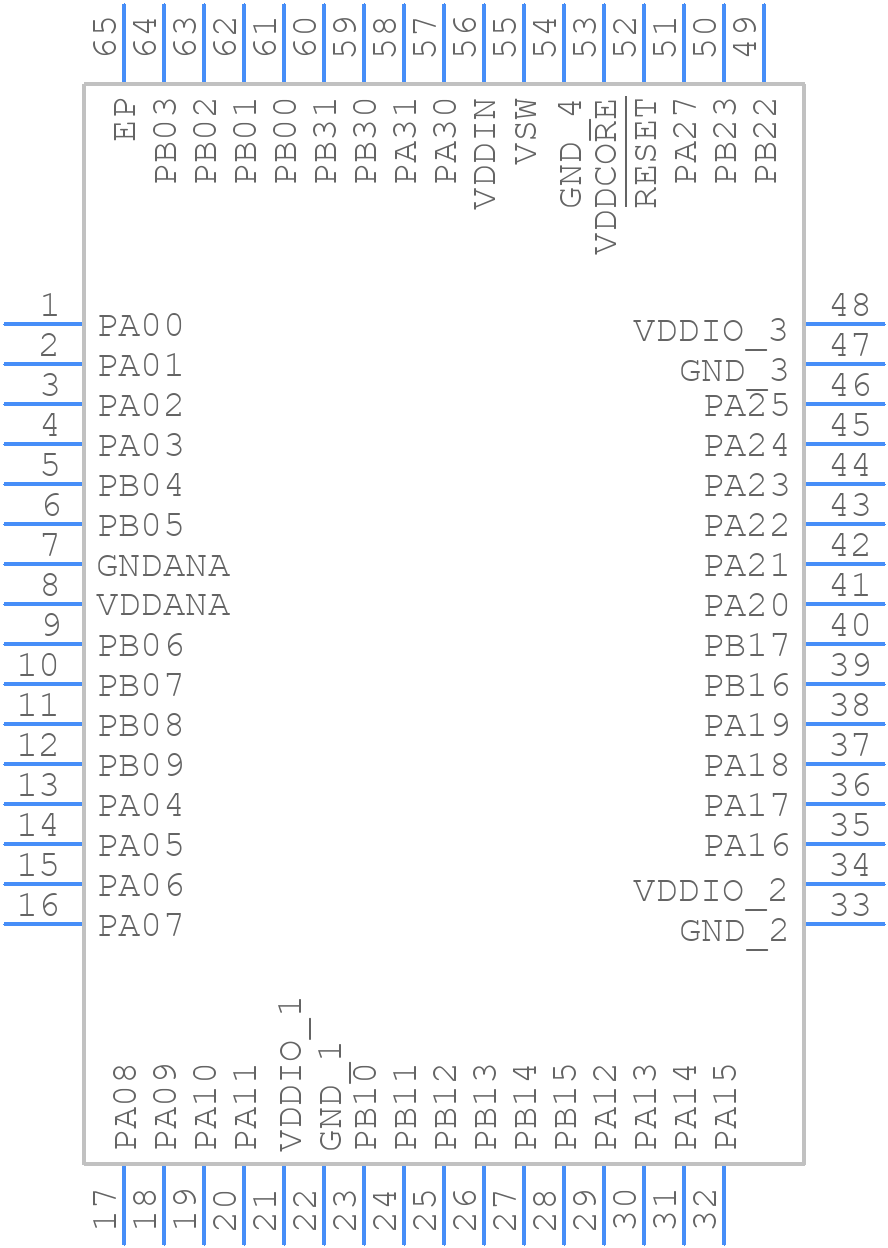

Part Symbol
-

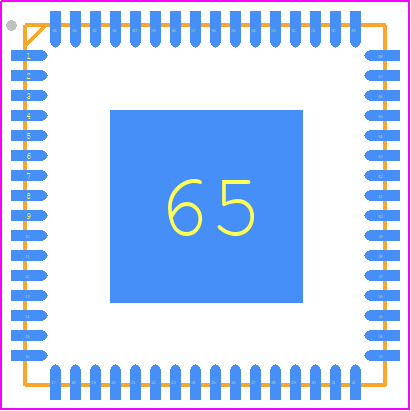

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ATSAML21J18B-MUT Part Data Attributes
|
|
ATSAML21J18B-MUT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATSAML21J18B-MUT
Microchip Technology Inc
64QFN 85C, GREEN,1.6-3.6V,48MHz
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | HVQCCN, LCC64,.35SQ,20 | |
| Pin Count | 64 | |
| Manufacturer Package Code | VQFN-64 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | NO | |
| CPU Family | CORTEX-M0+ | |
| Clock Frequency-Max | 32 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 16 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 51 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 64 | |
| Number of Timers | 8 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| RAM (bytes) | 40960 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1 mm | |
| Speed | 48 MHz | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 1.62 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 9 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for ATSAML21J18B-MUT
This table gives cross-reference parts and alternative options found for ATSAML21J18B-MUT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATSAML21J18B-MUT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ATSAML21J18B-AUT | Microchip Technology Inc | $5.9665 | 64TQFP 85C, GREEN,1.6-3.6V,48MHz | ATSAML21J18B-MUT vs ATSAML21J18B-AUT |
| ATSAML21J18B-MNT | Microchip Technology Inc | Check for Price | 64QFN 105C, GREEN,1.6-3.6V,48MHz | ATSAML21J18B-MUT vs ATSAML21J18B-MNT |
| ATSAML21J18B-MU | Microchip Technology Inc | Check for Price | 64QFN 85C, GREEN,1.6-3.6V,48MHz | ATSAML21J18B-MUT vs ATSAML21J18B-MU |
| ATSAML21J18B-MUT-SLL | Microchip Technology Inc | Check for Price | 64 QFN, 85C Temp, GREEN, 48MHz, SIL2 enabled CPN with library enable key | ATSAML21J18B-MUT vs ATSAML21J18B-MUT-SLL |
| ATSAML21J18B-ANT | Microchip Technology Inc | Check for Price | 64TQFP 105C, GREEN,1.6-3.6V,48MHz | ATSAML21J18B-MUT vs ATSAML21J18B-ANT |
| ATSAML21J18B-AUT-SLL | Microchip Technology Inc | Check for Price | 64 TQFP, 85C Temp, GREEN, 48MHz, SIL2 enabled CPN with library enable key | ATSAML21J18B-MUT vs ATSAML21J18B-AUT-SLL |
ATSAML21J18B-MUT Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the ATSAML21J18B-MUT is 48 MHz.
-
The ATSAML21J18B-MUT has 256 KB of flash memory.
-
The operating voltage range of the ATSAML21J18B-MUT is 1.71V to 3.6V.
-
Yes, the ATSAML21J18B-MUT has a built-in USB 2.0 Full-Speed interface.
-
The power consumption of the ATSAML21J18B-MUT in sleep mode is typically around 1.5 μA.
