Microcontrollers and Processors / Microcontrollers / ATSAMR35J18BT-I/7JX
Datasheets
ATSAMR35J18BT-I/7JX by:
Microchip Technology Inc

LoRa SiP Transceiver 256K Flash 32K SRAM T&R

Part Details for ATSAMR35J18BT-I/7JX by Microchip Technology Inc

Results Overview of ATSAMR35J18BT-I/7JX by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Healthcare Medical Imaging

ATSAMR35J18BT-I/7JX Information

ATSAMR35J18BT-I/7JX by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATSAMR35J18BT-I/7JX

Part # Distributor Description Stock Price Buy
DISTI # 84AC4419
Newark Mcu With Lora Tranceiver With 256Kb Flash 64 Tfbga 6X6X1.20 T/R Rohs Compliant: Yes |Microchip ATSAMR35J18BT-I/7JX RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $7.5400
$7.5400 Buy Now
DISTI # ATSAMR35J18BT-I/7JX
Avnet Americas MCU 32-bit ARM Cortex-M0+ RISC Single Core 256KB Flash 64-Ball TFBGA T/R - Tape and Reel (Alt: ATSAMR35J18BT-I/7JX) COO: China RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 3,000 $9.5143
  • 6,000 $9.0000
  • 12,000 $8.7632
  • 24,000 $8.5385
  • 48,000 $8.3250
$8.3250 / $9.5143 Buy Now
DISTI # ATSAMR35J18BT-I/7JX
Microchip Technology Inc LoRa SiP Transceiver 256K Flash 32K SRAM T&R, TFBGA, Projected EOL: 2045-10-22 COO: China ECCN: 5A992.c RoHS: Compliant Lead time: 31 Weeks, 0 Days Container: Reel In Stock: 5999 and Alternates Available
  • 1 $8.5700
  • 25 $7.8900
  • 100 $7.5400
$7.5400 / $8.5700 Buy Now
NAC MCU with LoRA Tranceiver with 256KB Flash. Package: 64 TFBGA 6x6x1.20 T/R - Wireless PAN products Product Line RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 0
  • 1 $9.7900
  • 100 $8.8800
  • 500 $8.3200
  • 1,000 $8.1200
$8.1200 / $9.7900 Buy Now
DISTI # ATSAMR35J18BTI7
Richardson RFPD LORA RoHS: Compliant Min Qty: 3000 0
  • 3,000 $8.5400
$8.5400 Buy Now
DISTI # ATSAMR35J18BT-I/7JX
Avnet Silica MCU 32bit ARM CortexM0 RISC Single Core 256KB Flash 64Ball TFBGA TR (Alt: ATSAMR35J18BT-I/7JX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ATSAMR35J18BT-I/7JX
EBV Elektronik MCU 32bit ARM CortexM0 RISC Single Core 256KB Flash 64Ball TFBGA TR (Alt: ATSAMR35J18BT-I/7JX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: ATSAMR35J18BT-I/7JX by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ATSAMR35J18BT-I/7JX
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ATSAMR35J18BT-I/7JX

ATSAMR35J18BT-I/7JX CAD Models

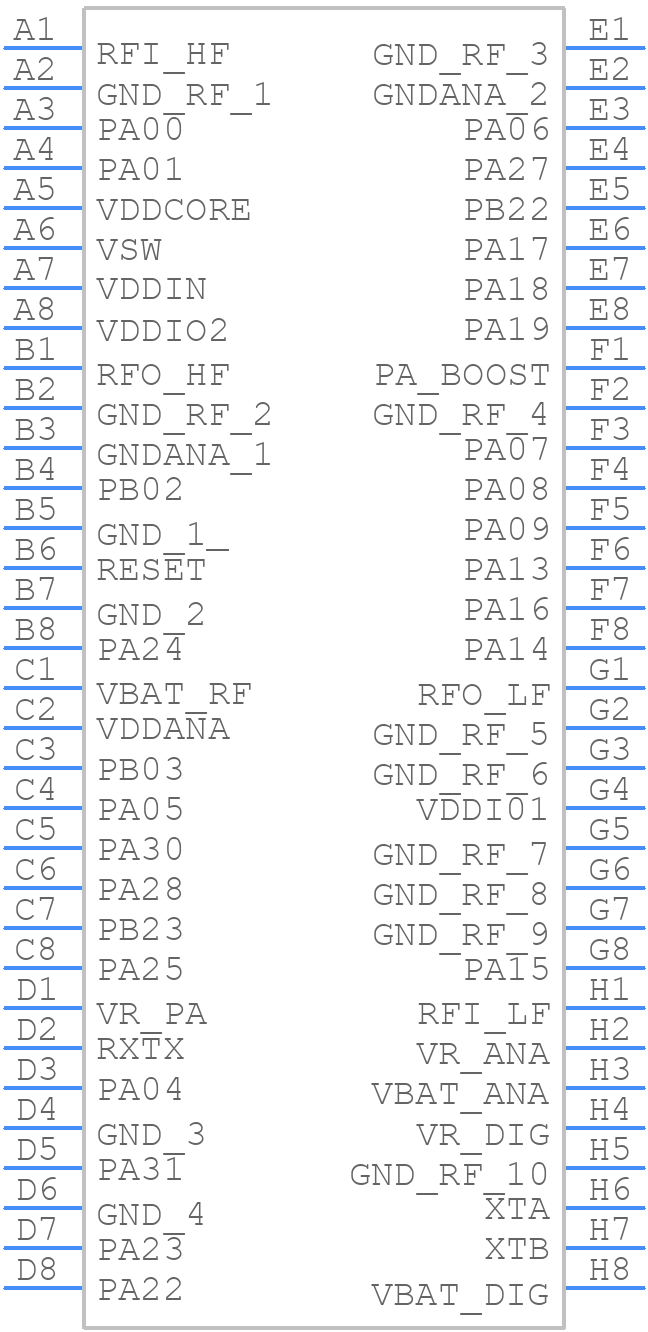

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATSAMR35J18BT-I/7JX Part Data Attributes

Parametric Data
ATSAMR35J18BT-I/7JX Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATSAMR35J18BT-I/7JX Microchip Technology Inc LoRa SiP Transceiver 256K Flash 32K SRAM T&R
Rohs Code Yes
Part Life Cycle Code Active
Package Description Fbga, Bga64,8x8,25
Pin Count 64
Manufacturer Package Code TFBGA-64
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 31 Weeks
Date Of Intro 2018-11-09
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan Yes
Clock Frequency-Max 32 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Integrated Cache Yes
JESD-30 Code S-PBGA-B64
Length 6 Mm
Low Power Mode Yes
Number of DMA Channels 16
Number of External Interrupts 15
Number of I/O Lines 27
Number of Terminals 64
Number of Timers 3
On Chip Data RAM Width 32
On Chip Program ROM Width 32
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code FBGA
Package Equivalence Code BGA64,8X8,25
Package Shape Square
Package Style Grid Array, Fine Pitch
RAM (bytes) 32768
RAM (words) 8192
ROM (words) 65536
ROM Programmability Flash
Screening Level Ts 16949
Speed 48 Mhz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Ball
Terminal Pitch 0.65 Mm
Terminal Position Bottom
Width 6 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for ATSAMR35J18BT-I/7JX

This table gives cross-reference parts and alternative options found for ATSAMR35J18BT-I/7JX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATSAMR35J18BT-I/7JX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATSAMR34J18B-I/7JX Microchip Technology Inc $4.9269 LoRa SiP Transceiver USB 256K Flash 32K SRAM ATSAMR35J18BT-I/7JX vs ATSAMR34J18B-I/7JX
ATSAMR35J16BT-I/7JX Microchip Technology Inc $7.9250 LoRa SiP Transceiver 64K Flash 8K SRAM T&R ATSAMR35J18BT-I/7JX vs ATSAMR35J16BT-I/7JX
ATSAMR35J16B-I/7JX Microchip Technology Inc $7.9250 LoRa SiP Transceiver 64K Flash 8K SRAM Tray ATSAMR35J18BT-I/7JX vs ATSAMR35J16B-I/7JX
ATSAMR34J16BT-I/7JX Microchip Technology Inc $8.1100 LoRa SiP Transceiver USB 64K Flash 8K SRAM T&R ATSAMR35J18BT-I/7JX vs ATSAMR34J16BT-I/7JX
ATSAMR34J17B-I/7JX Microchip Technology Inc $8.5100 LoRa SiP Transceiver USB 128K Flash 16K SRAM Tray ATSAMR35J18BT-I/7JX vs ATSAMR34J17B-I/7JX
ATSAMR34J17BT-I/7JX Microchip Technology Inc $8.5100 LoRa SiP Transceiver USB 128K Flash 16K SRAM T&R ATSAMR35J18BT-I/7JX vs ATSAMR34J17BT-I/7JX
ATSAMR34J18BT-I/7JX Microchip Technology Inc Check for Price LoRa SiP Transceiver USB 256K Flash 32K SRAM ATSAMR35J18BT-I/7JX vs ATSAMR34J18BT-I/7JX
ATSAMR35J17BT-I/7JX Microchip Technology Inc Check for Price LoRa SiP Transceiver 128K Flash 16K SRAM T&R ATSAMR35J18BT-I/7JX vs ATSAMR35J17BT-I/7JX
ATSAMR35J17B-I/7JX Microchip Technology Inc Check for Price LoRa SiP Transceiver 128K Flash 16K SRAM Tray ATSAMR35J18BT-I/7JX vs ATSAMR35J17B-I/7JX
equivalents icon

ATSAMR35J18BT-I/7JX Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the ATSAMR35J18BT-I/7JX is 48 MHz.

  • The ATSAMR35J18BT-I/7JX has 256 KB of flash memory.

  • The ATSAMR35J18BT-I/7JX has 32 KB of SRAM.

  • Yes, the ATSAMR35J18BT-I/7JX has a built-in USB 2.0 full-speed device interface.

  • The operating voltage range of the ATSAMR35J18BT-I/7JX is 1.8V to 3.6V.
