ATTINY13A-SSH Information
ATTINY13A-SSH by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ATTINY13A-SSH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68T3506
|
Newark | Microcontroller Mcu, 8 Bit, Attiny, 20Mhz, Soic-8, Product Range:Avr Attiny Family Attiny13 Series Microcontrollers, Device Core:Avr, Operating Frequency Max:20Mhz, Program Memory Size:1Kb, No. Of Pins:8Pins, Ic Case/Package:Soic Rohs Compliant: Yes |Microchip ATTINY13A-SSH RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
ATTINY13A-SSH
|
TME | IC: AVR microcontroller, SO8, 1.8÷5.5VDC, Ext.inter: 6, Cmp: 1 Min Qty: 1 | 0 |
|
$0.6340 / $1.0400 | RFQ |
|
|
NAC | 20 MHz,JEDEC SOIC,Ind Temp, Green,NiPAu - Package: 8 SOIC 3.90mm(.150in) TUBE RoHS: Compliant Min Qty: 600 Package Multiple: 100 Container: Tube | 0 |
|
$0.6100 / $0.7500 | Buy Now |
US Tariff Estimator: ATTINY13A-SSH by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ATTINY13A-SSH
ATTINY13A-SSH CAD Models
-

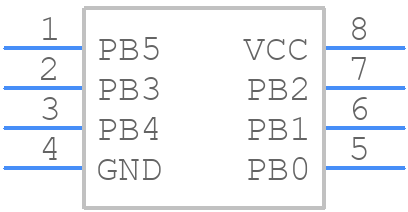

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ATTINY13A-SSH Part Data Attributes
|
|
ATTINY13A-SSH
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATTINY13A-SSH
Microchip Technology Inc
IC MCU 8BIT 1KB FLASH 8SOIC
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Soic-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 28 Weeks | |
| Has ADC | Yes | |
| Additional Feature | Also Operates With 2.7 V Minimum Supply At 10 Mhz And 1.8v Min @ 4 Mhz | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | No | |
| CPU Family | Avr Risc | |
| Clock Frequency-Max | 20 Mhz | |
| DAC Channels | No | |
| DMA Channels | No | |
| External Data Bus Width | ||
| Format | Fixed Point | |
| Integrated Cache | No | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 Mm | |
| Low Power Mode | Yes | |
| Moisture Sensitivity Level | 3 | |
| Number of External Interrupts | 7 | |
| Number of I/O Lines | 6 | |
| Number of Terminals | 8 | |
| Number of Timers | 1 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.23 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 64 | |
| ROM (words) | 1024 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.75 Mm | |
| Speed | 20 Mhz | |
| Supply Current-Max | 6 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3.9 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
Alternate Parts for ATTINY13A-SSH
This table gives cross-reference parts and alternative options found for ATTINY13A-SSH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATTINY13A-SSH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ATTINY13A-SS7 | Microchip Technology Inc | Check for Price | JEDEC SOIC, High Grade (+105C), NiPdAu | ATTINY13A-SSH vs ATTINY13A-SS7 |
| ATTINY13A-SSU-SL383 | Atmel Corporation | Check for Price | Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PDSO8 | ATTINY13A-SSH vs ATTINY13A-SSU-SL383 |
| ATTINY13A-SSHR | Atmel Corporation | Check for Price | RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PDSO8, 0.150 INCH, GREEN, PLASTIC, MS-012, SOIC-8 | ATTINY13A-SSH vs ATTINY13A-SSHR |
| ATTINY13A-SSUR | Atmel Corporation | Check for Price | RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PDSO8, 0.150 INCH, GREEN, PLASTIC, MS-012, SOIC-8 | ATTINY13A-SSH vs ATTINY13A-SSUR |
| ATTINY13A-SS7R | Microchip Technology Inc | Check for Price | JEDEC SOIC,High Grade (+105C),NiPdAu,T&R | ATTINY13A-SSH vs ATTINY13A-SS7R |
| ATTINY13A-SSUR | Microchip Technology Inc | Check for Price | 20 MHz, JEDEC SOIC, Ind Temp, Green, T&R | ATTINY13A-SSH vs ATTINY13A-SSUR |
| ATTINY13A-SSU | Microchip Technology Inc | Check for Price | JEDEC SOIC, IND TEMP, GREEN | ATTINY13A-SSH vs ATTINY13A-SSU |
| ATTINY13A-SSU | Atmel Corporation | Check for Price | RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PDSO8, 0.150 INCH, GREEN, PLASTIC, MS-012, SOIC-8 | ATTINY13A-SSH vs ATTINY13A-SSU |
| ATTINY13A-SS7 | Atmel Corporation | Check for Price | RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PDSO8, 0.150 INCH, GREEN, PLASTIC, MS-012, SOIC-8 | ATTINY13A-SSH vs ATTINY13A-SS7 |
ATTINY13A-SSH Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the ATTINY13A-SSH is 20 MHz.
-
Yes, the ATTINY13A-SSH is 5V tolerant, but it's recommended to use a voltage regulator to ensure stable operation.
-
The I/O pins of the ATTINY13A-SSH can source up to 20mA and sink up to 20mA.
-
No, the ATTINY13A-SSH does not have built-in pull-up resistors. External pull-up resistors are required if needed.
-
The ATTINY13A-SSH is rated for operation up to 125°C, but it's recommended to derate the device for reliable operation above 85°C.
