AUIRS2127STR by Infineon Technologies AG is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for AUIRS2127STR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
AUIRS2127STR
|
Avnet Americas | IGBT, MOSFET Driver, 1 Channel, High Side and Low Side, 600mA, 9 V to 20 V, 175 ns, 8 Pins, SOIC - Tape and Reel (Alt: AUIRS2127STR) COO: United States of America (the) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Container: Reel | 0 |
|
RFQ | |
|
|
Chip Stock | Driver600V0.6A1-OUTHighSide/LowSideAutomotive8-PinSOICNT/R | 3578 |
|
RFQ | |
|
DISTI #
SP001512314
|
EBV Elektronik | IGBT MOSFET Driver 1 Channel High Side and Low Side 600mA 9 V to 20 V 175 ns 8 Pins SOIC (Alt: SP001512314) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Greenchips | Date Code: 21+/MY | 25 |
|
$18.6079 / $22.7315 | Buy Now |
US Tariff Estimator: AUIRS2127STR by Infineon Technologies AG
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AUIRS2127STR
AUIRS2127STR CAD Models
-

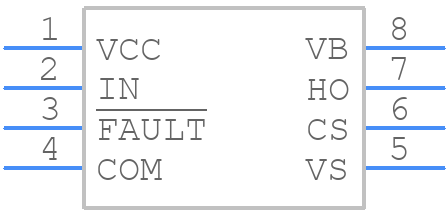

Part Symbol
-

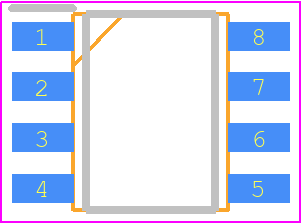

Footprint
-

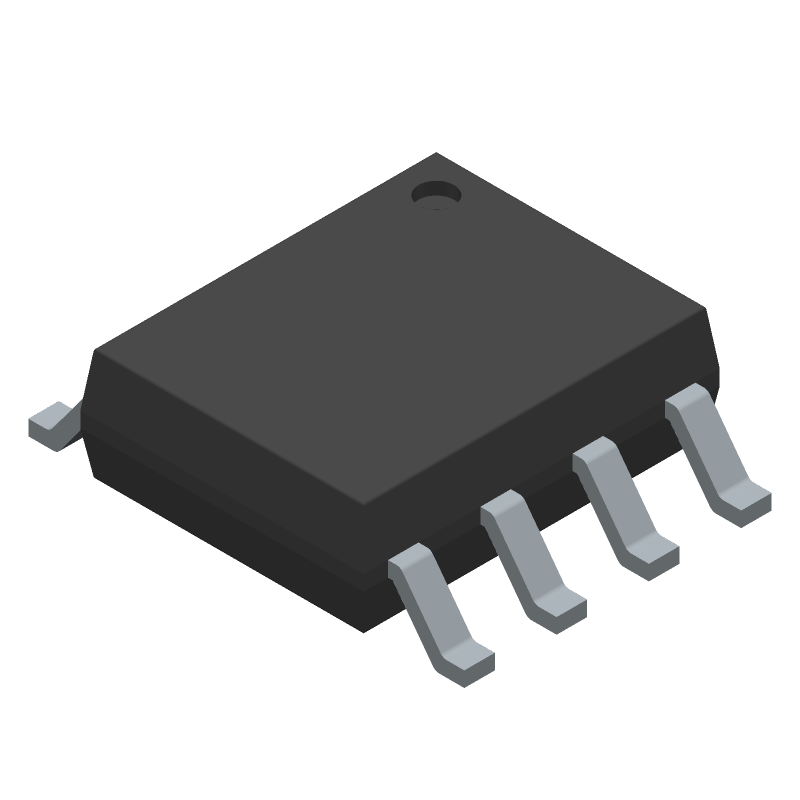

3D Model
