B6P-VH(LF)(SN) by: JST Manufacturing

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

Part Details for B6P-VH(LF)(SN) by JST Manufacturing

Results Overview of B6P-VH(LF)(SN) by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

B6P-VH(LF)(SN) Information

B6P-VH(LF)(SN) by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for B6P-VH(LF)(SN)

Part # Distributor Description Stock Price Buy
DISTI # 53X3098
Newark Connector, Header, 6Pos, 1Row, 3.96Mm, Connector Systems:Wire-To-Board, Pitch Spacing:3.96Mm, No. Of Rows:1Rows, No. Of Contacts:6Contacts, Contact Termination Type:Through Hole Straight, Product Range:Vh Series Rohs Compliant: Yes |Jst/japan Solderless Terminals B6P-VH(LF)(SN) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 242667
  • 1 $0.2590
  • 10 $0.2590
  • 100 $0.2380
  • 500 $0.2190
  • 1,000 $0.2190
  • 5,000 $0.1900
  • 10,000 $0.1900
$0.1900 / $0.2590 Buy Now
DISTI # JSTB6P-VH(LF)(SN)
Heilind Electronics VH HEADER (TOP) Americas - 2985 in Stock
  • 1 $0.2119
  • 900 $0.1845
  • 2,200 $0.1760
  • 4,400 $0.1708
  • 8,800 $0.1658
$0.1658 / $0.2119 Buy Now
Bristol Electronics   250
RFQ
DISTI # B6P-VH(LF)(SN)
Chip One Stop Interconnects RoHS: Compliant pbFree: Yes Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Bulk 2756
  • 10 $0.2180
  • 50 $0.1140
  • 100 $0.1060
  • 200 $0.0972
  • 500 $0.0832
  • 1,000 $0.0788
  • 2,000 $0.0737
  • 4,000 $0.0692
  • 16,000 $0.0626
  • 64,000 $0.0624
$0.0624 / $0.2180 Buy Now
Chip Stock   10186
RFQ
LCSC 6P VH 1x6P Tin -25+85 White 3.96mm 250V 6 10A 1 Through Hole Through HoleP3.96mm Headers Male Pins RoHS 5590
  • 5 $0.1892
  • 50 $0.1495
  • 250 $0.1325
  • 500 $0.1112
  • 2,500 $0.1017
  • 5,000 $0.0961
$0.0961 / $0.1892 Buy Now
New Advantage Corporation VH Series 3.96 mm Pitch 6 Position Top Entry Locking Wire to Board Header RoHS: Compliant Min Qty: 1 Package Multiple: 250 84000
  • 250 $0.1928
$0.1928 Buy Now
Win Source Electronics CONN HEADER VERT 6POS 3.96MM / Connector Header Through Hole 6 position 0.156" (3.96mm) 13550
  • 455 $0.1107
  • 970 $0.1036
  • 1,500 $0.1000
  • 2,155 $0.0929
  • 2,800 $0.0893
  • 3,500 $0.0858
$0.0858 / $0.1107 Buy Now

US Tariff Estimator: B6P-VH(LF)(SN) by JST Manufacturing

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

B6P-VH(LF)(SN)
JST Manufacturing
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for B6P-VH(LF)(SN)

B6P-VH(LF)(SN) CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

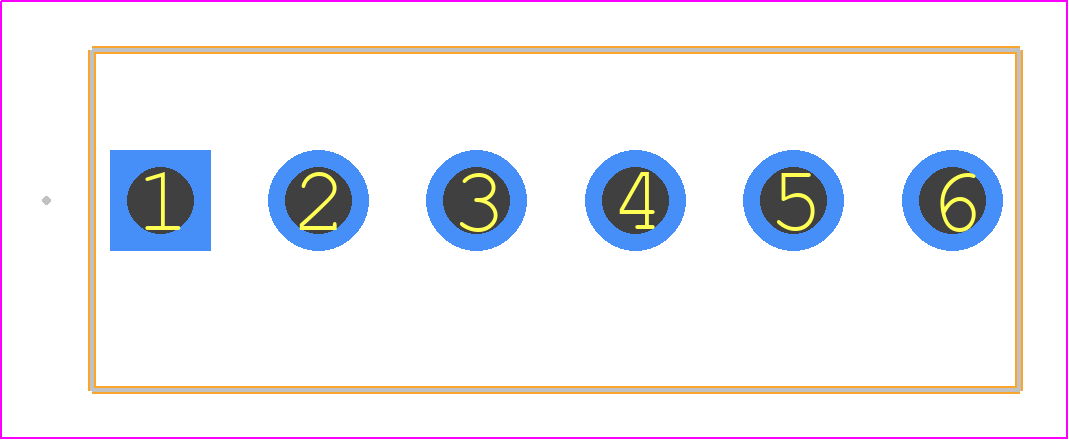

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

B6P-VH(LF)(SN) Part Data Attributes

Parametric Data
B6P-VH(LF)(SN) JST Manufacturing
Buy Now Datasheet
Compare Parts:
B6P-VH(LF)(SN) JST Manufacturing Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer J S T MFG CO LTD
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Body Breadth 0.335 inch
Body Depth 0.429 inch
Body Length 0.933 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating TIN OVER COPPER
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1500VAC V
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color WHITE
Insulator Material POLYAMIDE66
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.156 inch
Mating Information MULTIPAL MATING PARTS AVAILBLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 10 A
Reference Standard CSA;TUV;UL
Terminal Length 0.146 inch
Terminal Pitch 3.96 mm
Termination Type SOLDER
Total Number of Contacts 6
UL Flammability Code 94V-0
