BA178M05FP-E2 Information
BA178M05FP-E2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BA178M05FP-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2343124
|
Farnell | LINEAR REG, FIXED, 5V, 0.5A, TO-252-3 COO: JP RoHS: Compliant Min Qty: 1 Lead time: 16 Weeks, 1 Days Container: Each | 835 |
|
$0.8304 / $1.5924 | Buy Now |
|
|
Bristol Electronics | Min Qty: 5 | 1333 |
|
$0.2800 / $1.0770 | Buy Now |
|
|
Rochester Electronics | ICs, Power Management, 500mA 5V, Fixed Output, High PSRR Three-Terminal Regulators RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 6000 |
|
$0.6189 / $0.9982 | Buy Now |
|
|
Ameya Holding Limited | BA Series 5 V Output 0.5 A Low-Dropout Surface Mount Linear Regulator - TO-252-3 Min Qty: 1 | 90-Authorized Distributor |
|
$0.2790 / $0.7200 | Buy Now |
|
DISTI #
BA178M05FP-E2
|
IBS Electronics | BA SERIES 5 V OUTPUT 0.5 A LOW-DROPOUT SURFACE MOUNT LINEAR REGULATOR - TO-252-3 Min Qty: 2000 Package Multiple: 1 | 6000 |
|
$0.3220 / $0.3290 | Buy Now |
|
DISTI #
BA178M05FP-E2
|
Avnet Asia | Standard Regulator Pos 5V 0.5A 3-Pin(2+Tab) TO-252 T/R (Alt: BA178M05FP-E2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
BA178M05FP-E2
|
Avnet Silica | Standard Regulator Pos 5V 05A 3Pin2Tab TO252 TR (Alt: BA178M05FP-E2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | BASeries5VOutput0.5ALow-DropoutSurfaceMountLinearRegulator-TO-252-3 | 10440 |
|
RFQ | |
|
|
LCSC | 78dB(120Hz) Positive Fixed 5V TO-252 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 9 |
|
$0.2279 / $0.4760 | Buy Now |
|
|
New Advantage Corporation | BA Series 5 V Output 0.5 A Low-Dropout Surface Mount Linear Regulator - TO-252-3 RoHS: Compliant Min Qty: 1 Package Multiple: 2000 | 6000 |
|
$0.3337 | Buy Now |
US Tariff Estimator: BA178M05FP-E2 by ROHM Semiconductor
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BA178M05FP-E2
BA178M05FP-E2 CAD Models
-

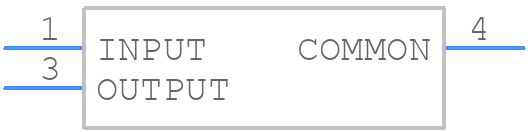

Part Symbol
-

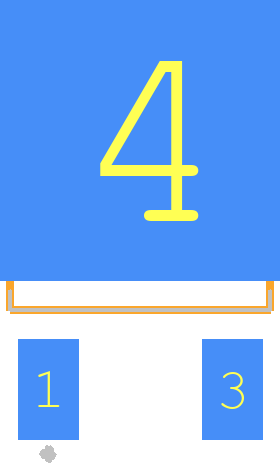

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BA178M05FP-E2 Part Data Attributes
|
|
BA178M05FP-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA178M05FP-E2
ROHM Semiconductor
Fixed Positive Standard Regulator, 5VBIPolar, PSSO2, TO-252, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Part Package Code | TO-252 | |
| Package Description | To-252, 3/2 Pin | |
| Pin Count | 4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Adjustability | Fixed | |
| Dropout Voltage1-Nom | 2 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7.5 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e2 | |
| Length | 6.5 Mm | |
| Line Regulation-Max | 0.1% | |
| Load Regulation-Max | 0.1% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.75 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Single Output Standard Regulator | |
| Seated Height-Max | 2.5 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 2.3 Mm | |
| Terminal Position | Single | |
| Voltage Tolerance-Max | 5% | |
| Width | 5.5 Mm |
