Part Details for BAT54A-HE3-18 by Vishay Intertechnologies
Results Overview of BAT54A-HE3-18 by Vishay Intertechnologies
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (4 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (9 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
BAT54A-HE3-18 Information
BAT54A-HE3-18 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAT54A-HE3-18
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09X2350
|
Newark | Schottky Diode Sot23 |Vishay BAT54A-HE3-18 RoHS: Not Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0460 / $0.0600 | Buy Now |
US Tariff Estimator: BAT54A-HE3-18 by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BAT54A-HE3-18
BAT54A-HE3-18 CAD Models
-

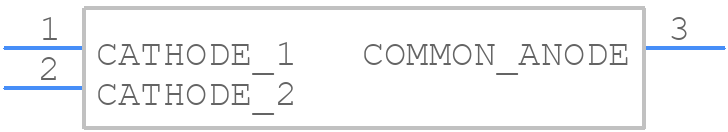

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BAT54A-HE3-18 Part Data Attributes
|
|
BAT54A-HE3-18
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
BAT54A-HE3-18
Vishay Intertechnologies
Rectifier Diode, Schottky, 2 Element, 0.2A, 30V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Application | GENERAL PURPOSE | |
| Case Connection | UNSPECIFIED | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.24 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 0.6 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.23 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
Alternate Parts for BAT54A-HE3-18
This table gives cross-reference parts and alternative options found for BAT54A-HE3-18. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAT54A-HE3-18, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAT54A-V-GS18 | Vishay Semiconductors | Check for Price | Diode Small Signal Schottky 30V 0.2A 3-Pin SOT-23 T/R | BAT54A-HE3-18 vs BAT54A-V-GS18 |
| BAT54A-V-G-18 | Vishay Semiconductors | Check for Price | SCHOTTKY DIODE SOT23-E3-G | BAT54A-HE3-18 vs BAT54A-V-G-18 |
| BAT54A-V-GS08 | Vishay Semiconductors | Check for Price | Diode Schottky 30V 0.2A 3-Pin SOT-23 T/R | BAT54A-HE3-18 vs BAT54A-V-GS08 |
| BAT54A-GS08 | Vishay Intertechnologies | Check for Price | Rectifier Diode, Schottky, 2 Element, 0.2A, 30V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BAT54A-HE3-18 vs BAT54A-GS08 |
BAT54A-HE3-18 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BAT54A-HE3-18 is -65°C to 150°C.
-
Yes, the BAT54A-HE3-18 is suitable for high-frequency switching applications due to its low forward voltage drop and fast switching times.
-
The maximum reverse voltage that the BAT54A-HE3-18 can withstand is 40V.
-
Yes, the BAT54A-HE3-18 is suitable for use in automotive applications due to its high reliability and ability to withstand high temperatures.
-
The typical forward voltage drop of the BAT54A-HE3-18 is 0.35V at 1A.
