BAV99 Information
BAV99 by Suzhou Good-Ark Electronics Co Ltd is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BAV99 | Toshiba Electronic Devices & Storage Corporation | Switching Diode, 100 V, 0.215 A, SOT23 | |
| BAV99W | Toshiba Electronic Devices & Storage Corporation | Switching Diode, 100 V, 0.15 A, USM |
US Tariff Estimator: BAV99 by Suzhou Good-Ark Electronics Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BAV99
BAV99 CAD Models
-

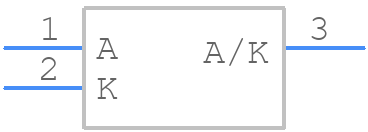

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BAV99 Part Data Attributes
|
|
BAV99
Suzhou Good-Ark Electronics Co Ltd
Buy Now
Datasheet
|
Compare Parts:
BAV99
Suzhou Good-Ark Electronics Co Ltd
Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Application | General Purpose | |
| Configuration | Series Connected, Center Tap, 2 Elements | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Power Dissipation-Max | 0.225 W | |
| Rep Pk Reverse Voltage-Max | 70 V | |
| Reverse Recovery Time-Max | 0.006 µS | |
| Surface Mount | Yes | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified |
Alternate Parts for BAV99
This table gives cross-reference parts and alternative options found for BAV99. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAV99, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAV99T | Micro Commercial Components | Check for Price | Rectifier Diode, 2 Element, 0.075A, 85V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3 | BAV99 vs BAV99T |
| BAV99W | Diodes Incorporated | Check for Price | Rectifier Diode, 2 Element, 0.15A, 75V V(RRM), Silicon, SOT-323, 3 PIN | BAV99 vs BAV99W |
| BAV99W | Motorola Mobility LLC | Check for Price | 0.715A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE | BAV99 vs BAV99W |
| BAV99-V-GS18 | Vishay Intertechnologies | Check for Price | Rectifier Diode, 2 Element, 0.15A, 70V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BAV99 vs BAV99-V-GS18 |
| BAV99W | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, 2 Element, 0.15A, 75V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 | BAV99 vs BAV99W |
| BAV99T | Secos Corporation | Check for Price | Rectifier Diode, | BAV99 vs BAV99T |
| BAV99/E8 | Vishay Semiconductors | Check for Price | Rectifier Diode, 2 Element, 0.15A, 70V V(RRM), Silicon, PLASTIC PACKAGE-3 | BAV99 vs BAV99/E8 |
| BAV99W | Sensitron Semiconductors | Check for Price | Rectifier Diode, 2 Element, 0.15A, 75V V(RRM), Silicon, PLASTIC PACKAGE-3 | BAV99 vs BAV99W |
| BAV99E6327 | Infineon Technologies AG | Check for Price | Rectifier Diode, 2 Element, 0.2A, 85V V(RRM), Silicon, SOT-23, 3 PIN | BAV99 vs BAV99E6327 |
| BAV99-T1-LF | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, 2 Element, 0.15A, 75V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BAV99 vs BAV99-T1-LF |
BAV99 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for BAV99 diodes is -40°C to 100°C.
-
Yes, the BAV99 diode is suitable for high-frequency applications up to 4 GHz due to its low capacitance and fast switching time.
-
The maximum allowable voltage for the BAV99 diode is 200V, but it's recommended to operate within 150V for reliable performance.
-
It's recommended to use an anti-static wrist strap or mat when handling BAV99 diodes to prevent electrostatic discharge (ESD) damage.
-
Yes, the BAV99 diode is suitable for switching power supplies due to its fast switching time and low voltage drop.
