Transistors / Small Signal Bipolar Transistors / BC847BS-TP
Datasheets
BC847BS-TP by:
Micro Commercial Components

Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon, ULTRA SMALL, PLASTIC PACKAGE-6

Part Details for BC847BS-TP by Micro Commercial Components

Results Overview of BC847BS-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

BC847BS-TP Information

BC847BS-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for BC847BS-TP

Part # Distributor Description Stock Price Buy
DISTI # 21AM9395
Newark Bipolar Trans, Dual Npn, 45V, Sot-363 Rohs Compliant: Yes |Micro Commercial Components BC847BS-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2855
  • 1 $0.3590
  • 10 $0.2260
  • 25 $0.2000
  • 50 $0.1740
  • 100 $0.1480
  • 250 $0.1310
  • 500 $0.1140
  • 1,000 $0.1040
$0.1040 / $0.3590 Buy Now
Bristol Electronics   Min Qty: 20 12000
  • 20 $0.2625
  • 59 $0.1313
  • 382 $0.0788
  • 1,905 $0.0525
  • 6,668 $0.0394
$0.0394 / $0.2625 Buy Now
DISTI # BC847BS-TP
TME Transistor: NPN x2, bipolar, 45V, 0.1A, 300mW, SOT363 Min Qty: 1 2887
  • 1 $0.2200
  • 10 $0.1340
  • 30 $0.1070
  • 100 $0.0820
  • 1,000 $0.0660
$0.0660 / $0.2200 Buy Now
Chip Stock SmallSignalBipolarTransistor,0.1AI(C),45VV(BR)CEO,2-Element,NPN,Silicon 36500
RFQ
New Advantage Corporation BC847BS Series 45 V 100 mA Dual NPN Small Signal Transistor - SOT-363-6 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 204000
  • 6,000 $0.0315
  • 204,000 $0.0291
$0.0291 / $0.0315 Buy Now

Part Details for BC847BS-TP

BC847BS-TP CAD Models

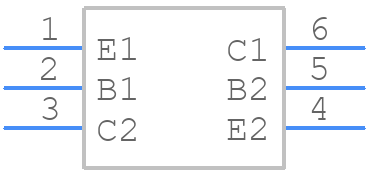

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BC847BS-TP Part Data Attributes

Parametric Data
BC847BS-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
BC847BS-TP Micro Commercial Components Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon, ULTRA SMALL, PLASTIC PACKAGE-6
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Pin Count 6
Reach Compliance Code Compliant
ECCN Code EAR99
Samacsys Manufacturer MCC
Collector Current-Max (IC) 0.1 A
Collector-Emitter Voltage-Max 45 V
Configuration SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE) 200
JESD-30 Code R-PDSO-G6
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 2
Number of Terminals 6
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 200 MHz

Alternate Parts for BC847BS-TP

This table gives cross-reference parts and alternative options found for BC847BS-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC847BS-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC847BS,115 Nexperia $0.0976 vp_BC847BS - 45 V, 100 mA NPN/NPN general-purpose transistor@en-us TSSOP 6-Pin BC847BS-TP vs BC847BS,115
BC847BS PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-6 BC847BS-TP vs BC847BS
BC847BS Micro Commercial Components Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon, ULTRA SMALL, PLASTIC PACKAGE-6 BC847BS-TP vs BC847BS
BC847BV-7 Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6 BC847BS-TP vs BC847BV-7
BC847BS-7 Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon, ULTRA SMALL, PLASTIC PACKAGE-6 BC847BS-TP vs BC847BS-7
934042520115 Nexperia Check for Price Small Signal Bipolar Transistor BC847BS-TP vs 934042520115
BC847BS/T1 Nexperia Check for Price Small Signal Bipolar Transistor BC847BS-TP vs BC847BS/T1
Part Number Manufacturer Composite Price Description Compare
BC847BS_R1_00001 PanJit Semiconductor $0.0621 Small Signal Bipolar Transistor, BC847BS-TP vs BC847BS_R1_00001
BC847BST/R NXP Semiconductors Check for Price TRANSISTOR 100 mA, 45 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-88, 6 PIN, BIP General Purpose Small Signal BC847BS-TP vs BC847BST/R
BC847BS/T1 NXP Semiconductors Check for Price TRANSISTOR 100 mA, 45 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-88, 6 PIN, BIP General Purpose Small Signal BC847BS-TP vs BC847BS/T1
934042530165 Nexperia Check for Price Small Signal Bipolar Transistor BC847BS-TP vs 934042530165
BC847BV Nexperia Check for Price Small Signal Bipolar Transistor BC847BS-TP vs BC847BV
BC847BPN_R2_00001 PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, BC847BS-TP vs BC847BPN_R2_00001
BC847BS Nexperia Check for Price Small Signal Bipolar Transistor BC847BS-TP vs BC847BS
BC847BPN/T3 Nexperia Check for Price Small Signal Bipolar Transistor BC847BS-TP vs BC847BPN/T3
BC847BS_R2_10001 PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, BC847BS-TP vs BC847BS_R2_10001
BC847BPN-AU_R2_000A1 PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, BC847BS-TP vs BC847BPN-AU_R2_000A1
equivalents icon

BC847BS-TP Related Parts

BC847BS-TP Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the BC847BS-TP is -55°C to 150°C.

  • Yes, the BC847BS-TP is suitable for high-frequency applications up to 100 MHz due to its high transition frequency (fT) of 300 MHz.

  • The recommended storage temperature range for the BC847BS-TP is -55°C to 150°C.

  • Yes, the BC847BS-TP transistor is lead-free and RoHS (Restriction of Hazardous Substances) compliant.

  • The typical current gain (hFE) of the BC847BS-TP transistor is 100-400.
