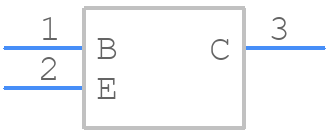

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC847CLT3G by onsemi
Results Overview of BC847CLT3G by onsemi
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC847CLT3G Information
BC847CLT3G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC847CLT3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88H4570
|
Newark | Bipolar Transistor, Npn, 45V Sot-23, Full Reel, Transistor Polarity:Npn, Collector Emitter Voltage Max:45V, Continuous Collector Current:100Ma, Power Dissipation:225Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins Rohs Compliant: Yes |Onsemi BC847CLT3G RoHS: Compliant Min Qty: 30000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0150 | Buy Now |
|
DISTI #
BC847CLT3G
|
Avnet Americas | NPN Bipolar Transistor. ONSSPCTRNSTVU6M5P, - Tape and Reel (Alt: BC847CLT3G) COO: Malaysia RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days Container: Reel | 80000 |
|
$0.0092 / $0.0100 | Buy Now |
|
DISTI #
BC847CLT3G
|
Avnet Asia | NPN Bipolar Transistor. ONSSPCTRNSTVU6M5P, (Alt: BC847CLT3G) RoHS: Compliant Min Qty: 80000 Package Multiple: 10000 Lead time: 17 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
BC847CLT3G
|
Avnet Silica | NPN Bipolar Transistor ONSSPCTRNSTVU6M5P (Alt: BC847CLT3G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 0 Days | Silica - 40000 |
|
Buy Now | |
|
|
Chip Stock | ONSemiBC847CLT3GNPNBipolarTransistor, 0.1A, 45V, 3-PinSOT-23 | 203030 |
|
RFQ | |
|
DISTI #
BC847CLT3G
|
EBV Elektronik | NPN Bipolar Transistor ONSSPCTRNSTVU6M5P (Alt: BC847CLT3G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 809915 |
|
RFQ | |
|
|
LCSC | 300mW 45V 100mA NPN SOT-23 Single Bipolar Transistors RoHS | 6940 |
|
$0.0115 / $0.0246 | Buy Now |
|
|
New Advantage Corporation | Bipolar Transistors - BJT 100mA 50V NPN RoHS: Compliant Min Qty: 1 Package Multiple: 10000 | 20000 |
|
$0.0162 | Buy Now |
|
|
Win Source Electronics | TRANS NPN 45V 0.1A SOT23-3 | 190530 |
|
$0.0110 / $0.0141 | Buy Now |
Part Details for BC847CLT3G
BC847CLT3G CAD Models
BC847CLT3G Part Data Attributes
|
|
BC847CLT3G
onsemi
Buy Now
Datasheet
|
Compare Parts:
BC847CLT3G
onsemi
NPN Bipolar Transistor, SOT-23 (TO-236) 3 LEAD, 10000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 (TO-236) 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 318 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Base Capacitance-Max | 4.5 Pf | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 420 | |
| JEDEC-95 Code | TO-236 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Npn | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 100 Mhz | |
| VCEsat-Max | 0.6 V |
