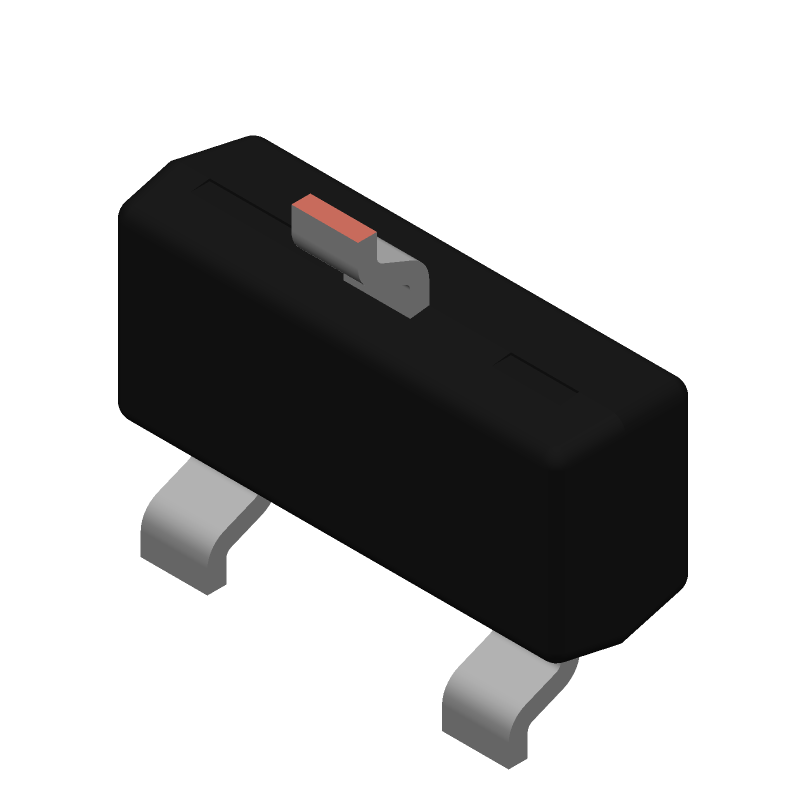

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BCW60D,235 by Nexperia
Results Overview of BCW60D,235 by Nexperia
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BCW60D,235 Information
BCW60D,235 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BCW60D,235
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BCW60D,235
|
Avnet Americas | - Tape and Reel (Alt: BCW60D,235) COO: China RoHS: Compliant Min Qty: 40000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0414 / $0.0422 | Buy Now |
|
|
Chip Stock | SmallSignalBipolarTransistor,0.2AI(C),32VV(BR)CEO,1-Element,NPN,Silicon | 116000 |
|
RFQ |
Part Details for BCW60D,235
BCW60D,235 CAD Models
BCW60D,235 Part Data Attributes
|
|
BCW60D,235
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BCW60D,235
Nexperia
BCW60 series - NPN general purpose transistors@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1993-03-01 | |
| Additional Feature | Low Noise | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 32 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Npn | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 250 Mhz | |
| Turn-off Time-Max (toff) | 800 Ns | |
| Turn-on Time-Max (ton) | 150 Ns | |
| VCEsat-Max | 0.55 V |
Alternate Parts for BCW60D,235
This table gives cross-reference parts and alternative options found for BCW60D,235. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BCW60D,235, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BCW60D,215 | Nexperia | $0.0926 | BCW60 series - NPN general purpose transistors@en-us TO-236 3-Pin | BCW60D,235 vs BCW60D,215 |
| BCW60D | YAGEO Corporation | Check for Price | Small Signal Bipolar Transistor, 0.2A I(C), 32V V(BR)CEO, 1-Element, NPN, Silicon | BCW60D,235 vs BCW60D |
| BCW60D | Plessey Semiconductors Ltd | Check for Price | Transistor | BCW60D,235 vs BCW60D |
BCW60D,235 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for BCW60D,235 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
-
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive interface material, and keeping the junction temperature (Tj) below 125°C.
-
The recommended storage temperature range for BCW60D,235 is -40°C to 30°C, as specified in the datasheet. Storing the device outside this range may affect its performance and reliability.
-
Yes, the BCW60D,235 is AEC-Q101 qualified, making it suitable for use in automotive applications. However, it's essential to follow the recommended operating conditions, and ensure the device is used within its specified ratings and guidelines.
-
During soldering and assembly, it's crucial to follow the recommended soldering temperature profile, avoid excessive heat, and use a soldering iron with a temperature-controlled tip. Additionally, handle the device by the body, not the leads, to prevent damage.
