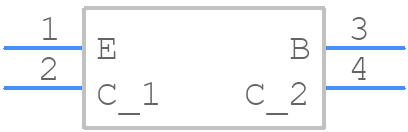

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BF622,115 by Nexperia
Results Overview of BF622,115 by Nexperia
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (4 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
BF622,115 Information
BF622,115 by Nexperia is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BF622,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
32AC6694
|
Newark | Transistor, Aec-Q101, 250V, To-243, Transistor Polarity:Npn, Collector Emitter Voltage V(Br)Ceo:250V, Transition Frequency Ft:60Mhz, Power Dissipation Pd:500Mw, Dc Collector Current:50Ma, Dc Current Gain Hfe:50Hfe, Transistor Case Rohs Compliant: Yes |Nexperia BF622,115 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.3280 / $1.0500 | Buy Now |
|
DISTI #
BF622,115
|
Avnet Americas | Trans GP BJT NPN 250V 0.05A 4-Pin(3+Tab) SOT-89 T/R - Tape and Reel (Alt: BF622,115) COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.2168 / $0.2213 | Buy Now |
|
DISTI #
BF622.115
|
TME | Transistor: NPN, bipolar, 250V, 50mA, SC62,SOT89 Min Qty: 1 | 0 |
|
$0.5120 / $1.2800 | RFQ |
|
|
Chip Stock | TransGPBJTNPN250V0.05A1100mWAutomotive4-Pin(3+Tab)SOT-89T/R | 46000 |
|
RFQ |
Part Details for BF622,115
BF622,115 CAD Models
BF622,115 Part Data Attributes
|
|
BF622,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BF622,115
Nexperia
BF622 - NPN high-voltage transistor@en-us SOT-89 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-89 | |
| Package Description | Plastic, Sot-89, 3 Pin | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT89 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1997-09-01 | |
| Case Connection | Collector | |
| Collector Current-Max (IC) | 0.05 A | |
| Collector-Base Capacitance-Max | 1.6 Pf | |
| Collector-Emitter Voltage-Max | 250 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 50 | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Npn | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Tin | |
| Terminal Form | Flat | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | Amplifier | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 60 Mhz | |
| VCEsat-Max | 0.6 V |
